Part #: E86-82-105-02-22

Overview

Take your 2024-2026 Toyota Tacoma to the next level with the Eibach PRO-TRUCK-LIFT Stage 2R Suspension System. This complete suspension package combines adjustable PRO-TRUCK 2.0 front coilovers, rear reservoir shocks, and PRO-LIFT rear springs to deliver exceptional ride quality, increased wheel travel, and enhanced off-road performance. Designed for drivers who demand maximum capability on the trail without sacrificing comfort on the road, the Stage 2R system provides adjustable front lift and a balanced rear lift for improved ground clearance and larger tire fitment.

Key Features

• Complete front and rear suspension lift system
• Fits 2024-2026 Toyota Tacoma (Non-Hybrid 2WD & 4WD)

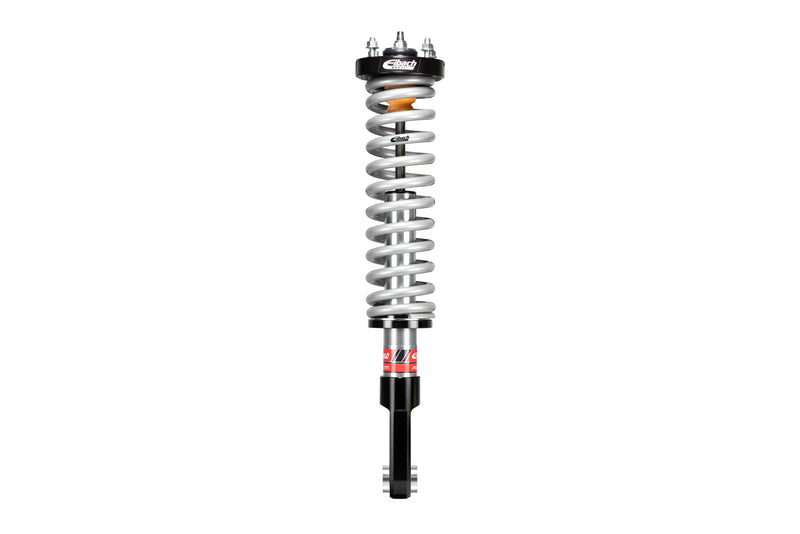

• Adjustable PRO-TRUCK 2.0 front coilovers

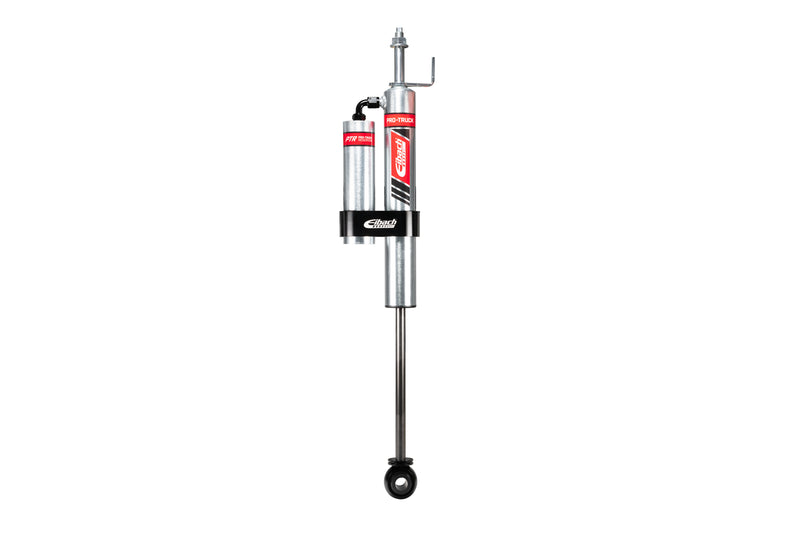

• External reservoir rear monotube shocks for improved cooling and off-road performance

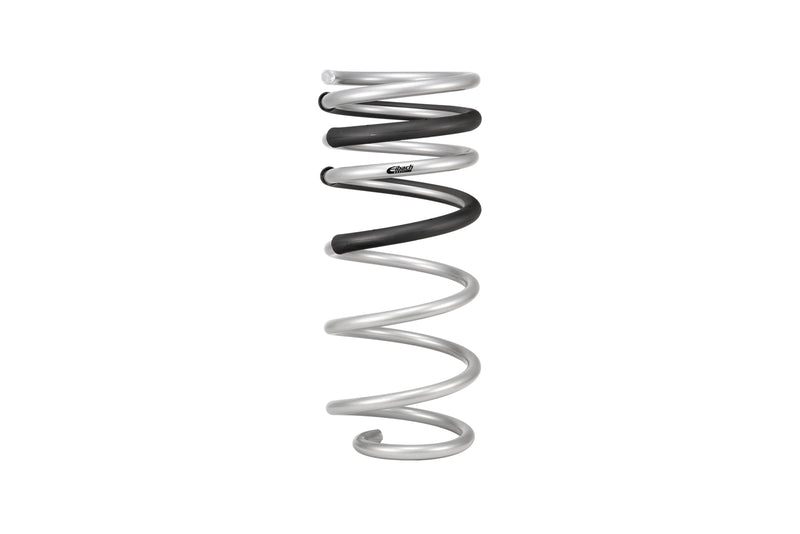

• PRO-LIFT rear springs provide approximately 1 in. of rear lift

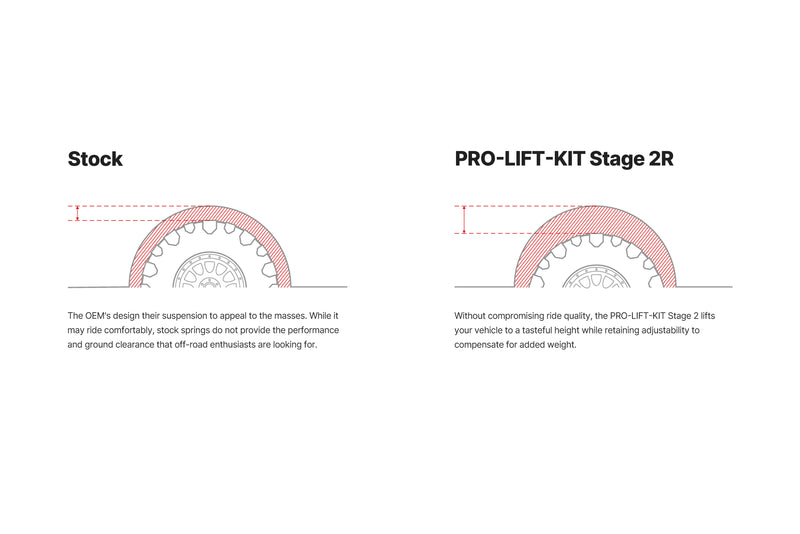

• Adjustable front lift:
  • 4WD: Approximately 0.5–2.5 in.
  • 2WD: Approximately 1.5–3.0 in.
• 46mm monotube pistons with nitrogen-charged variable force valving
• CNC-machined anodized 6061-T6 billet aluminum upper mounts
• Heavy-duty bushings engineered for long service life
• Individually dyno tested for matched damping performance
• Designed, engineered, and manufactured in the USA
• Backed by Eibach's 2-Year Warranty

Construction & Design

The PRO-TRUCK-LIFT Stage 2R is built for serious off-road enthusiasts looking for increased control, durability, and performance. The large 46mm monotube front coilovers deliver consistent damping while the external reservoir rear shocks improve heat dissipation during demanding off-road use. Adjustable threaded front spring perches allow you to fine-tune ride height for aftermarket accessories such as steel bumpers and winches, while the PRO-LIFT rear springs help maintain a level stance and improve load handling. Every component is engineered to withstand harsh conditions while maintaining excellent on-road comfort.

Vehicle Fitment

Fits:

• 2024-2026 Toyota Tacoma SR5 2.4L Turbo (2WD & 4WD)
• 2024-2026 Toyota Tacoma TRD Sport 2.4L Turbo (2WD & 4WD)
• 2024-2026 Toyota Tacoma TRD Off-Road 2.4L Turbo (2WD & 4WD)
• 2024-2026 Toyota Tacoma Limited 2.4L Turbo (2WD & 4WD)

Does Not Fit:

• Hybrid models
• Models equipped with Adaptive Variable Suspension (AVS)
• Leaf spring applications

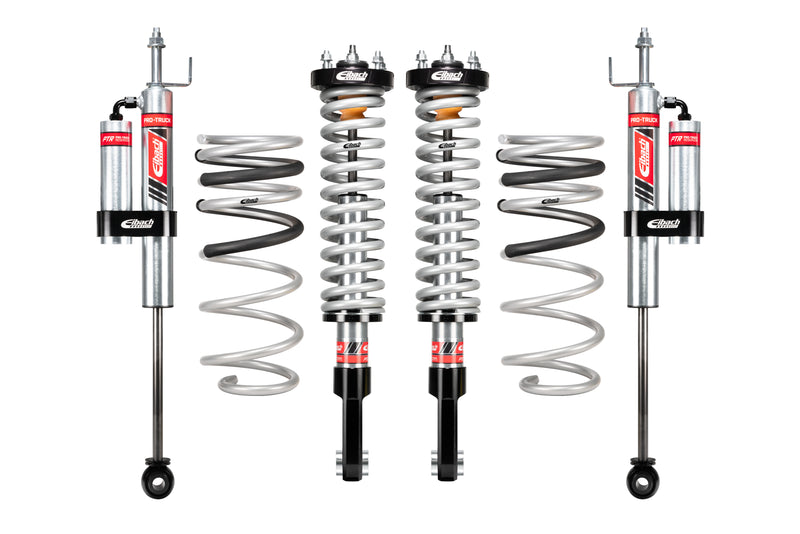

What's Included

• (2) PRO-TRUCK 2.0 Front Adjustable Coilovers
• (2) PRO-TRUCK Rear Reservoir Monotube Shocks
• (2) PRO-LIFT Rear Coil Springs
• Installation Instructions
• Eibach 2-Year Warranty
