Comp Cams Stage 2 HRT 220/230 Max Power Hydraulic CAM KIT

09-25 5.7L Hemi / 6.4L 392 (VVT)

CK201-303-17

The COMP Cams Stage 2 HRT 220/230 Max Power Hydraulic Cam Kit is a high-performance upgrade for your vehicle engine with VVT. Designed to offer the best average torque and power of any camshaft under .600” lift tested on Gen IV cylinder heads, it’s ideal for performance street builds that want serious gains without going to extremes. Operating best between 2500–6500 RPM, this cam still supports 7000+ RPM when paired with COMP’s #26918 valve springs, thanks to the use of Low Shock Technology (LST) lobe profiles. These advanced lobes reduce valve train stress and improve high-RPM stability—perfect for daily-driven cars, weekend warriors, or naturally aspirated performance builds. This Cam Kit (CK-Kit) includes the camshaft, phaser limiter (for VVT compatibility), precision pushrods, Beehive™ valve springs, steel retainers, valve locks, spring seats, and valve seals. It provides all the essential hardware to install this cam with confidence and make up to 82 horsepower more—when paired with proper tuning and supporting mods.

• Stage: 2
• Camshaft Type: Hydraulic Roller
• Lifter Type: Hydraulic Roller (Lifters not included in this CK-Kit)
• Camshaft Series: HRT – High RPM Technology
• Cam Material: Billet Steel
• Operating RPM Range: 2500–6500 (Supports 7000+ RPM with #26918 valve springs)

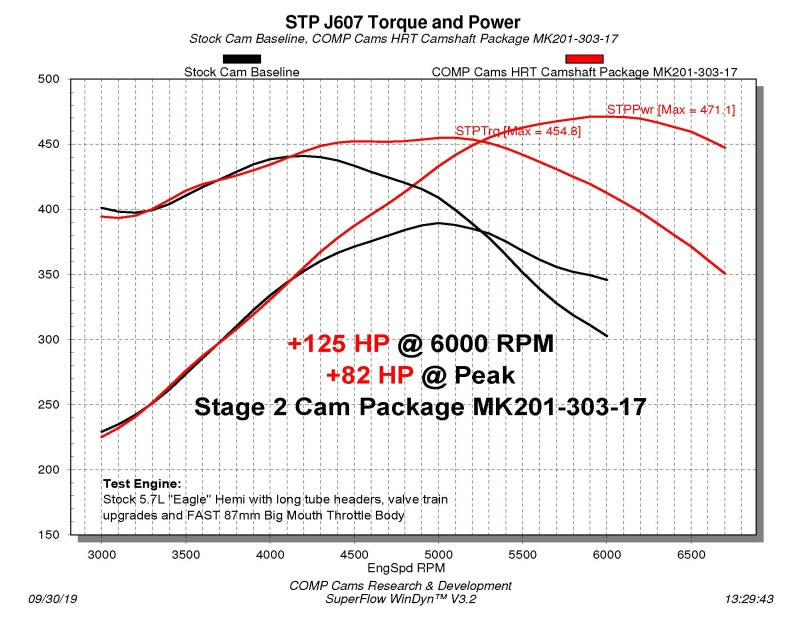

• Estimated Horsepower Gain: Up to +82 H
• Valve Springs Required: Yes – COMP Cams #26918
• Designed For: Aggressive street/strip performance with strong mid to high RPM power
• Low Shock Technology (LST): Improves valve train durability and high-RPM stability

Camshaft Specs:

• Advertised Intake Duration: 273°
• Advertised Exhaust Duration: 279°
• Intake Duration @ .050” Lift: 220°
• Exhaust Duration @ .050” Lift: 230°
• Intake Valve Lift: 0.596”
• Exhaust Valve Lift: 0.582”
• Lobe Separation Angle (LSA): 114°

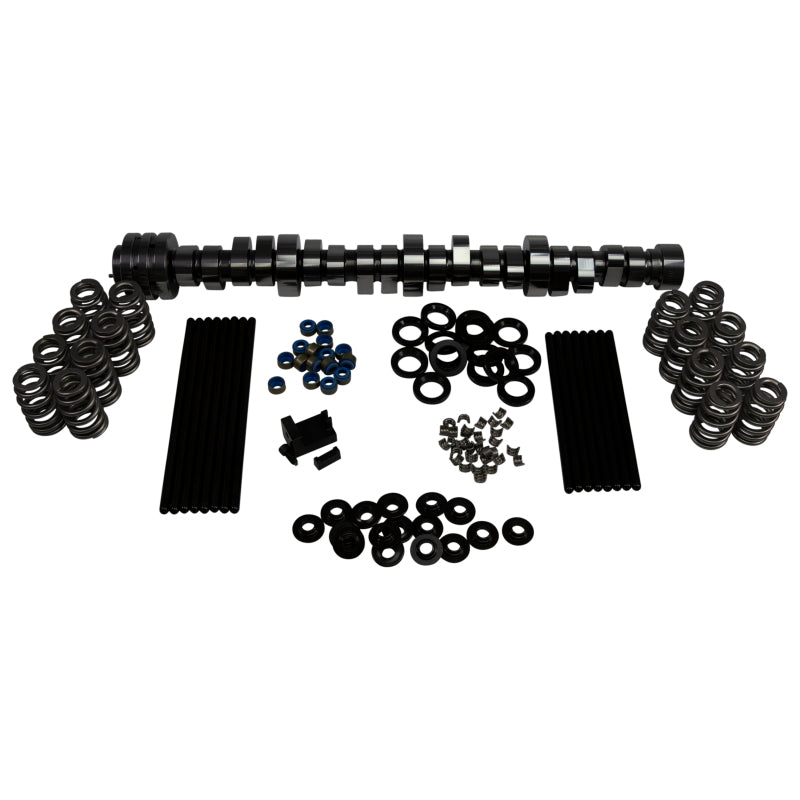

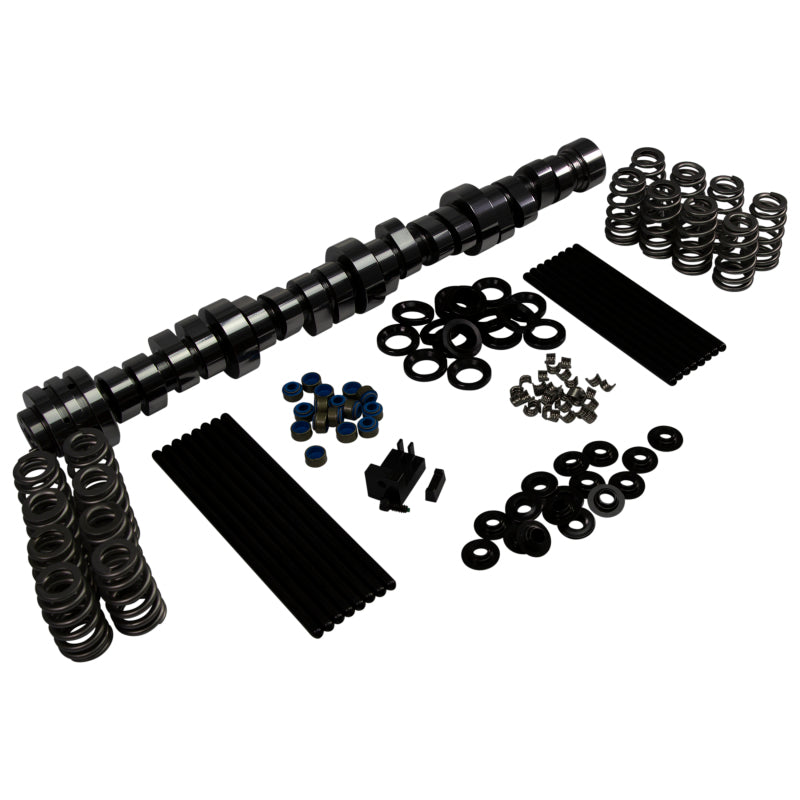

Included in the Cam Kit (CK-Kit):

• HRT Stage 2 Camshaft (220/230 grind)
• Phaser Limiter (#5761 – for VVT engines)
• Pushrods (#7929-8 & #7997-8)
• Beehive™ Valve Springs (#26918-16)
• Steel Retainers (#761-16)
• Valve Locks (#607-16)
• Spring Seats (#4683-16)
• Valve Seals (#531-16)
