Eibach Pro-Truck Lift Kit Coilovers

2019–2024 Ram 1500 4WD

Part #: E86-27-011-02-22

Overview

The Eibach Pro-Truck Lift Kit Coilovers (Stage 2) are engineered specifically for the 2019–2024 Ram 1500 4WD, offering a premium suspension upgrade that enhances off-road capability and ride quality. This Stage 2 system combines height-adjustable coilovers with sport-tuned shocks, allowing precise ride height adjustment and improved handling characteristics. Designed for truck enthusiasts who demand both performance and durability, this kit delivers increased ground clearance and load capacity without compromising comfort.

Whether tackling rugged trails or navigating daily driving conditions, the Pro-Truck Lift Kit Coilovers provide a balanced suspension setup that improves articulation and stability. The adjustable front coilovers paired with rear sport shocks and Pro-Lift-Kit springs ensure your Ram 1500 maintains optimal control and responsiveness under varied driving scenarios.

Key Features

This Stage 2 lift kit integrates advanced suspension technology and robust components to meet the demands of off-road and heavy-duty use:

• Front ride height adjustable coilovers with threaded spring perch for 0 to +3.2 inches of lift
• Rear lift of approximately +1.0 inch via Pro-Lift-Kit springs and sport shocks
• 46mm monotube shock design with nitrogen-filled variable force valving for consistent damping
• Anodized 6061-T6 billet aluminum coilover mounts for superior strength and corrosion resistance
• Heavy-duty bushing system tested for durability and reduced noise
• Individually dyno tested shocks to ensure matched performance and reliability
• Compatible with ERO Off-Road Race Springs for enhanced off-road tuning options
• Engineered and manufactured in the USA with a limited lifetime warranty

Construction & Design

The Pro-Truck Lift Kit Coilovers feature premium materials and precision engineering to withstand demanding conditions. The coilover mounts are crafted from anodized 6061-T6 billet aluminum, providing exceptional strength while resisting corrosion and wear. The shocks utilize a monotube design with a large 46mm piston, which improves heat dissipation and ensures consistent damping performance during extended off-road use.

The adjustable threaded spring perch allows for fine-tuning of ride height and preload, accommodating increased loads and maximizing clearance. The heavy-duty bushing system is cycle tested to reduce noise and enhance longevity, delivering a refined driving experience without sacrificing ruggedness.

Installation & Fitment

This lift kit is designed as a direct fit for 2019 through 2024 Ram 1500 4WD models, ensuring straightforward installation with no major modifications required. The adjustable coilovers simplify the process of setting your desired ride height, while the rear sport shocks and springs install using factory mounting points. Professional installation is recommended to achieve optimal alignment and suspension geometry.

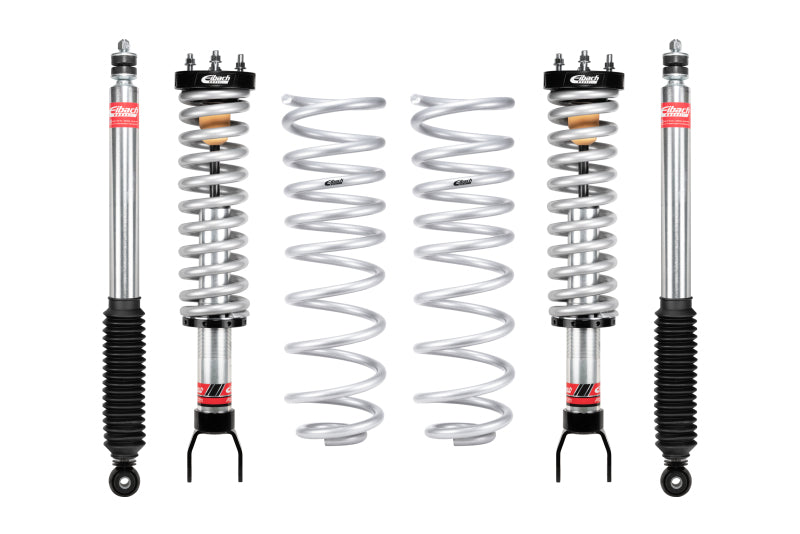

What's Included

• Front Pro-Truck Coilover 2.0 assemblies with adjustable threaded spring perches
• Rear Pro-Lift-Kit springs
• Rear sport shocks
• All necessary mounting hardware and bushings
• Installation instructions

Ideal For

This lift kit is ideal for Ram 1500 owners seeking enhanced off-road performance, improved ground clearance, and adjustable suspension tuning. It suits enthusiasts who require a durable suspension upgrade capable of handling increased loads and rough terrain while maintaining daily drivability and ride comfort.
