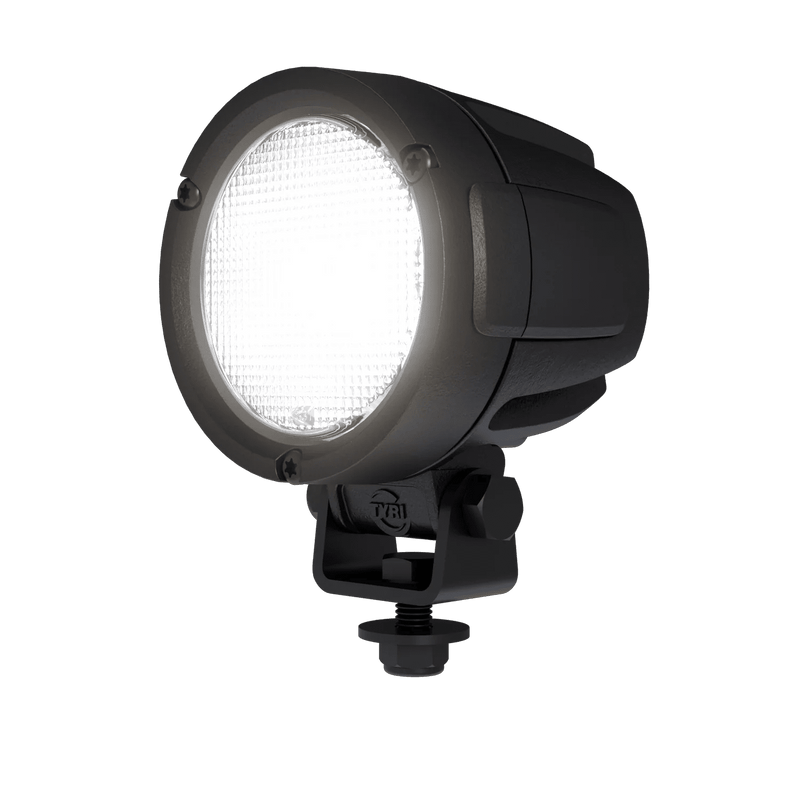

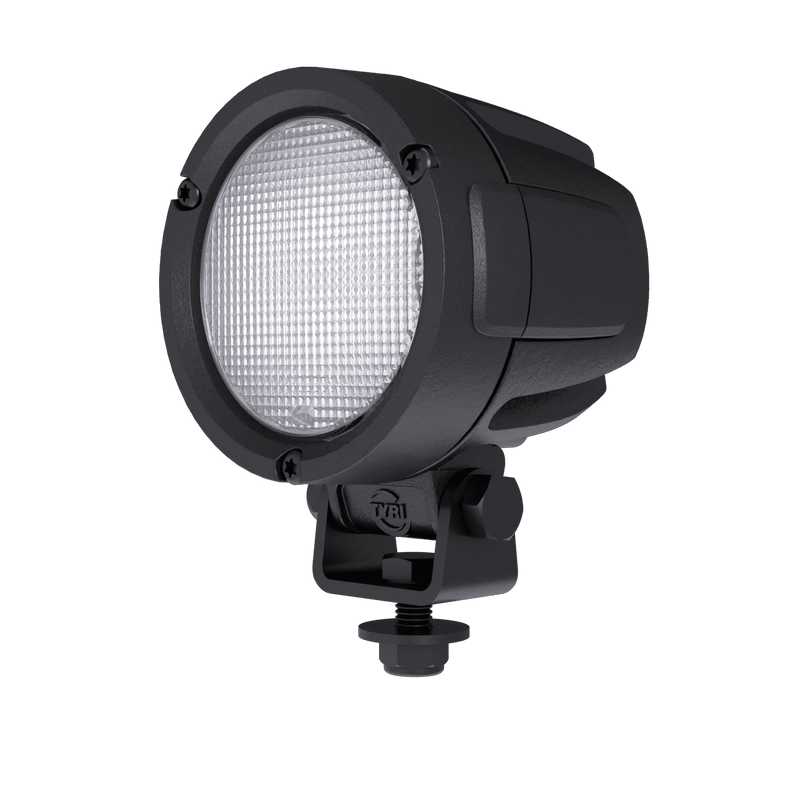

TYRI Off-Road Lighting 1010 Curve 4 in 4,600 eLumen LED Work Light | Universal

Part #: PLU-005-1 | PLU-004-1 | PLU-006-1

Overview

The TYRI 1010 Curve LED Work Light delivers industry-leading performance in a compact 4-inch (100 mm) housing designed for the toughest off-road, commercial, and industrial environments. Producing an impressive 4,600 effective lumens, the 1010 Curve combines advanced LED technology with TYRI's renowned durability to provide outstanding visibility wherever the job or trail takes you. Available with Narrow Symmetric, Medium Symmetric, or Wide Symmetric beam patterns, the 1010 Curve can be configured for long-distance illumination, balanced all-purpose lighting, or broad work-area coverage. Whether mounted on an off-road vehicle, overland rig, work truck, agricultural equipment, or heavy machinery, the 1010 Curve is engineered to perform in the harshest conditions.

Key Features

• Produces 4,600 effective lumens of high-output LED illumination
• Compact 4-inch (100 mm) round housing
• Available in Narrow Symmetric, Medium Symmetric, and Wide Symmetric beam patterns
• 5700K daylight color temperature for crisp, natural visibility
• Operates on 12V-48V electrical systems
• Rugged die-cast aluminum housing
• Impact-resistant polycarbonate lens
• Integrated vibration dampers for extreme off-road conditions
• Advanced thermal management for consistent performance and extended LED life
• IP69K-rated construction resists water, dust, mud, and harsh weather
• Universal mounting bracket for flexible installation
• Ideal for off-road vehicles, trucks, UTVs, overland builds, agricultural equipment, construction machinery, mining, forestry, and industrial applications

Construction & Design

Built to withstand the harshest environments, the TYRI 1010 Curve features a heavy-duty die-cast aluminum housing with integrated vibration dampers to protect internal components from shock and rough terrain. The durable polycarbonate lens provides exceptional impact resistance, while the advanced cooling design efficiently dissipates heat for maximum LED performance and long service life. Its compact 4-inch footprint allows installation on bumpers, roof racks, bull bars, utility bodies, and heavy equipment without sacrificing lighting performance.

Beam Pattern Options

• PLU-005-1 – Narrow Symmetric: Focused beam for maximum long-range visibility and high-speed driving.
• PLU-004-1 – Medium Symmetric: Balanced beam offering an excellent combination of distance and width for general-purpose illumination.
• PLU-006-1 – Wide Symmetric: Broad flood beam designed to illuminate large work areas and improve close-range visibility.

What's Included

• 1 TYRI 1010 Curve 4-inch LED Work Light
• Universal mounting bracket
• Installation hardware
• Pigtail wiring harness
• Installation instructions
