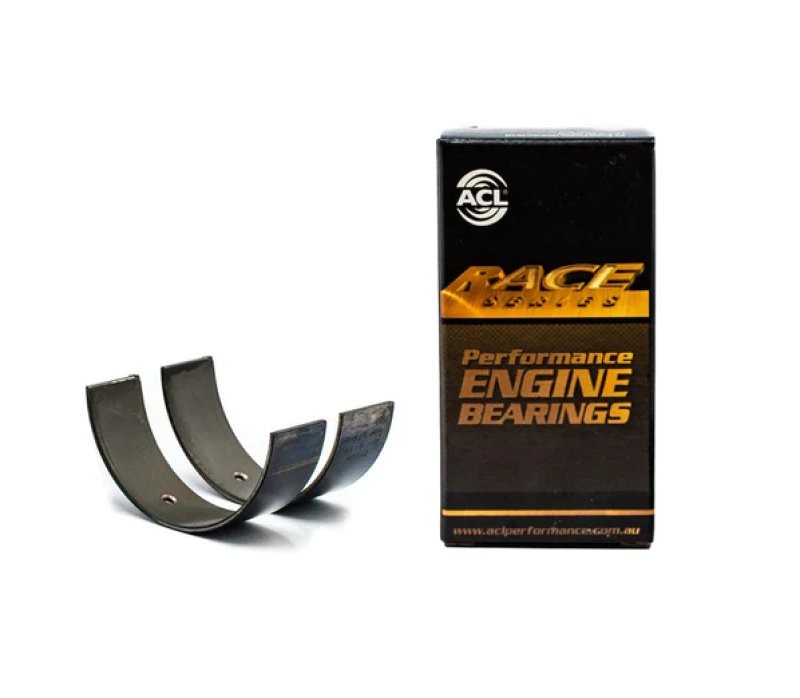

ACL Race Series Connecting Rod Bearing Set – .025mm

Part #: 4B8172H-.025

Overview

The ACL 4B8172H-.025 Race Series Connecting Rod Bearing Set is designed for select Ford 2.0L and 2.3L EcoBoost engines and the Mazda 2.3L MZR DISI Turbo. Unlike the .25mm undersize version, this .025mm bearing is approximately .001" thicker than standard, providing approximately .001" less oil clearance while retaining the standard crankshaft journal size.

Key Features

• Fits select Ford 2.0L EcoBoost engines
• Fits select Ford 2.3L EcoBoost engines
• Fits Mazda 2.3L MZR DISI Turbo / L3-VDT
• .025mm (.001") thicker than standard
• Provides approximately .001" reduced oil clearance
• Designed for standard-size crankshaft journals
• Complete set for 4 connecting rods
• ACL Race Series performance construction
• Multi-layer performance bearing design
• Performance-oriented bearing eccentricity
• Designed for high-RPM and high-load applications

Construction & Design

ACL Race Series bearings are engineered around performance use, with bearing geometry designed to support hydrodynamic oil-film formation and compensate for bore distortion under demanding operating conditions. The 4B8172H-.025 uses increased bearing thickness to reduce clearance by approximately .001" compared with the standard H-STD version.

Installation & Fitment

Engine Families: Ford EcoBoost / Mazda MZR
Engine Sizes: 2.0L / 2.3L Turbo
Bearing Type: Connecting Rod
Series: ACL Race Series
Size: .025mm
Clearance: Approximately .001" Reduced
Shaft Diameter: 2.0465"–2.0472"
Housing Bore: 2.1662"–2.1667"
Maximum Wall Thickness: 0.0591"
Maximum Width: 0.669"

Vehicle applications include select Ford Ranger, Mustang EcoBoost, Focus ST/RS, Explorer, Edge, Fusion and Maverick models with compatible 2.0L or 2.3L EcoBoost engines, along with Mazda 2.3L MZR turbo applications. Current application data extends into 2026 Ford applications.

What's Included

• 4 upper connecting rod bearing halves
• 4 lower connecting rod bearing halves
• Complete bearing set for all 4 connecting rods

Ideal For

Ideal for Ford EcoBoost and Mazda MZR performance engine builds requiring ACL Race Series rod bearings with approximately .001" tighter oil clearance than standard bearings.
