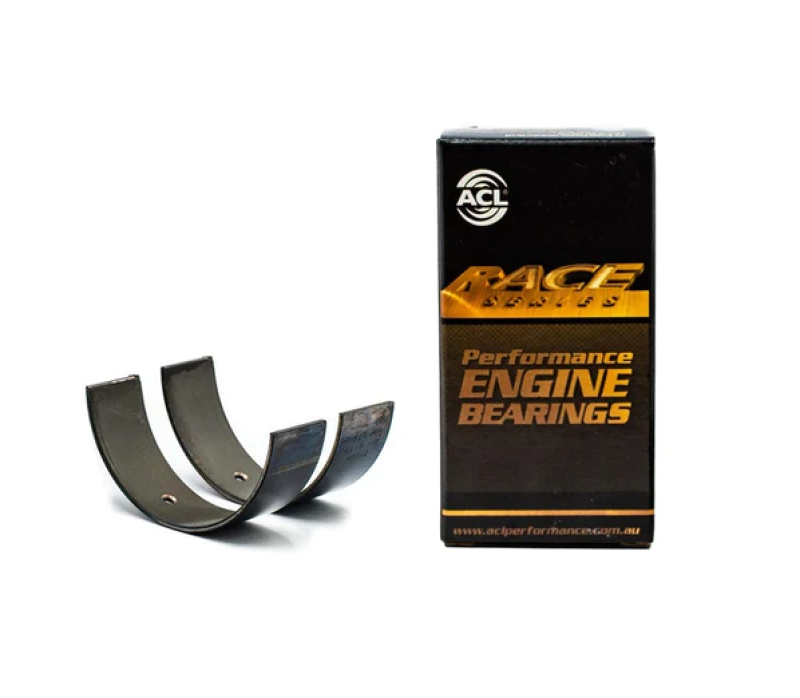

ACL Race Series Connecting Rod Bearing Set – Extra Clearance

Part #: 4B8172HX-STD

Overview

The ACL 4B8172HX-STD Race Series Connecting Rod Bearing Set is a standard-size performance bearing set with approximately 0.001" (0.025mm) additional oil clearance. Designed for select Ford EcoBoost and Mazda MZR turbocharged four-cylinder engines, the HX-series bearings are well suited for performance and high-output engine builds where additional bearing clearance is desired.

Key Features

• Fits select Ford 2.0L EcoBoost engines
• Fits select Ford 2.3L EcoBoost engines

• Standard-size (STD) bearing set
• HX specification provides approximately 0.001" additional oil clearance
• Complete set for 4 connecting rods
• ACL Race Series performance construction
• Tri-metal bearing material
• Hardened steel backing
• High-strength overlay
• Increased crush for improved bearing retention
• Increased eccentricity for improved oil-film formation
• Designed for high-performance and high-load engine builds

Construction & Design

ACL Race Series bearings use tri-metal construction with hardened steel backing and performance-focused bearing geometry. The HX configuration uses a thinner bearing wall to provide additional oil clearance while retaining a standard-size crankshaft specification.

Installation & Fitment

Engine Families: Ford EcoBoost / Mazda MZR
Engine Sizes: 2.0L / 2.3L Turbo
Bearing Type: Connecting Rod
Series: ACL Race Series
Size: Standard (STD)
Clearance: +0.001" (0.025mm) Extra
Material: Race Series Tri-Metal
Quantity: Set of 4
Shaft Diameter: 2.0465"–2.0472"
Housing Bore: 2.1662"–2.1667"
Maximum Wall Thickness: 0.0585"
Maximum Width: 0.669"

Applications include performance-oriented Ford EcoBoost 2.0L and 2.3L engines, including Ranger, Mustang, Focus, Maverick, Edge, Explorer and Fusion applications, along with the Mazda 2.3L MZR DISI Turbo engine. Exact vehicle fitment should be verified by engine before installation.

What's Included

• 4 upper connecting rod bearing halves
• 4 lower connecting rod bearing halves
• Complete bearing set for all 4 connecting rods

Ideal For

Ideal for Ford EcoBoost performance builds requiring standard-size ACL Race Series rod bearings with approximately 0.001" additional oil clearance.
