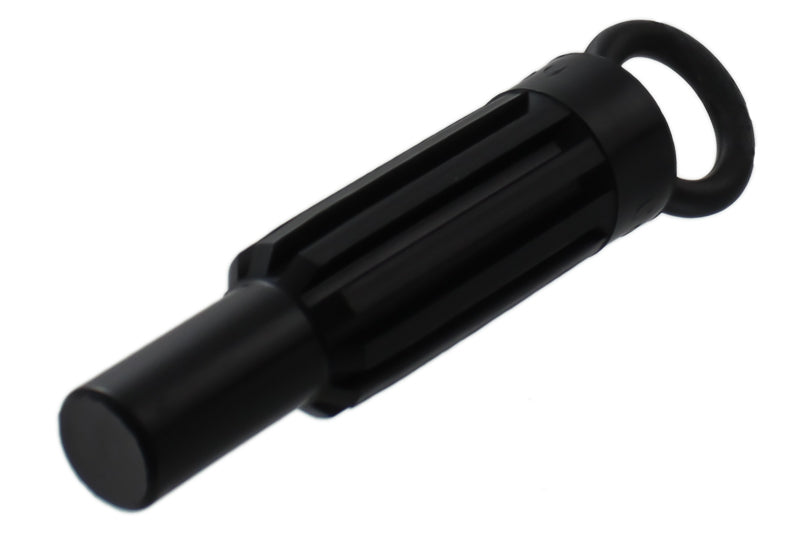

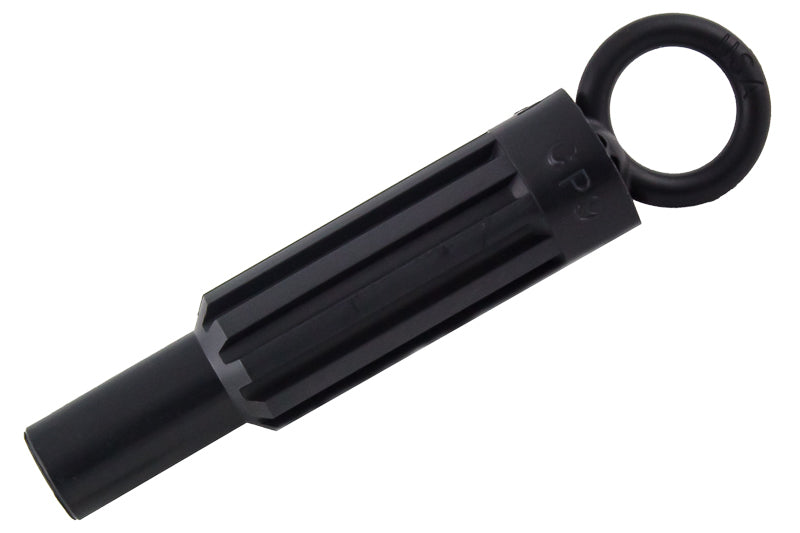

ACT Clutch Alignment Tool

Part #: ATCP9

Overview

The ACT ATCP9 Clutch Alignment Tool is designed to correctly center the clutch disc with the pilot bearing during clutch installation. Proper alignment makes it easier to install the transmission input shaft through the clutch disc and into the pilot bearing. ACT specifies ATCP9 with a 1.125-inch input shaft diameter and 10-spline configuration.

Key Features

• Designed for ACT clutch installation
• Properly centers the clutch disc
• Aligns the disc with the pilot bearing
• Helps simplify transmission installation
• 1.125" (1-1/8") input shaft diameter

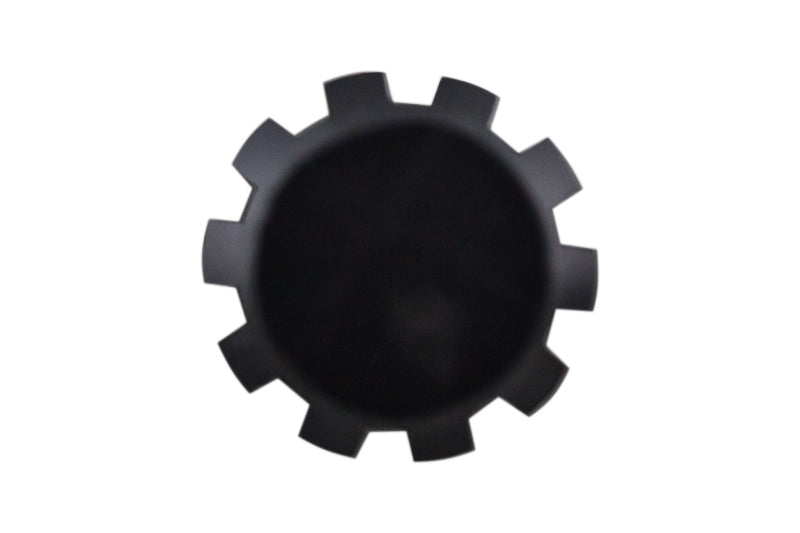

• 10-spline configuration
• Lightweight plastic construction
• Application-specific design
• Reusable installation tool
• Weighs approximately 0.1 lb
• Backed by ACT's 12-month warranty

Construction & Design

The ATCP9 is a lightweight, application-specific plastic alignment tool that replicates the critical dimensions of the transmission input shaft. It holds the clutch disc in the correct position while the pressure plate is installed and tightened.

Installation & Fitment

Type: Clutch Alignment Tool
Input Shaft Diameter: 1.125" / 1-1/8"
Spline Count: 10
Material: Plastic
Color: Black
Weight: 0.1 lb
Fit Type: Application Specific

What's Included

• 1 ACT ATCP9 clutch alignment tool

Ideal For

Ideal for Jeep clutch installations requiring a 1-1/8-inch, 10-spline alignment tool to properly center the clutch disc before transmission installation.
