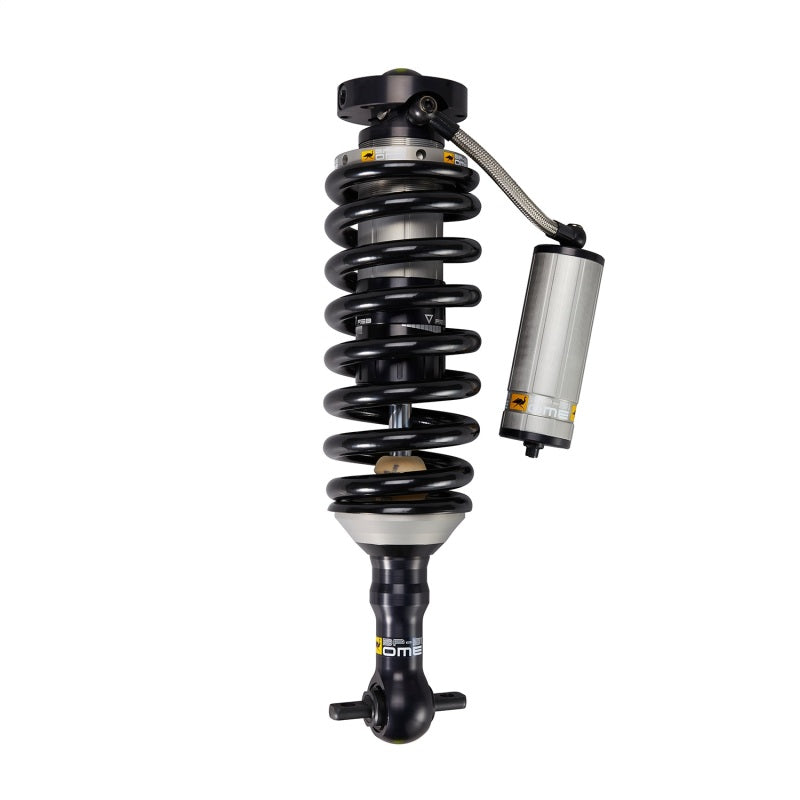

Old Man Emu BP-51 Adjustable Front Right Coilover
Fits 2019–2023 Ford Ranger – Front Right / Passenger Side
Part #: BP5190013R
Overview
The Old Man Emu BP-51 Front Right Coilover is a premium high-performance suspension upgrade designed for the 2019–2023 Ford Ranger. Developed and tested by ARB's Old Man Emu suspension engineers, the BP-51 combines a large 51mm bore with bypass technology and independent compression and rebound adjustment to provide an excellent balance of on-road comfort and off-road control.
Unlike conventional shocks that primarily generate damping based on piston velocity, the BP-51 bypass design also varies damping based on piston position within the shock body. This allows the suspension to remain compliant through normal driving conditions while progressively increasing control as the suspension approaches the limits of its travel. The adjustable design also allows Ranger owners to fine-tune suspension performance based on vehicle weight, accessories, terrain, and driving preferences.
Key Features
The Old Man Emu BP-51 features a large 51mm bore and advanced bypass design engineered to deliver increased suspension control without sacrificing everyday ride comfort. Independent compression and rebound adjusters allow the shock to be tuned while installed on the vehicle, making it possible to customize suspension behavior for daily driving, off-road use, additional vehicle weight, or changing terrain. The large aluminum shock body provides increased oil capacity and efficient heat dissipation, while the vehicle-specific design allows the coilover to integrate with the Ranger's existing suspension mounting locations.
Construction & Design
The BP-51 coilover features a 51mm bore and 6061-grade aluminum shock body, providing excellent strength, corrosion resistance, and heat dissipation. A hard-chromed and precision-ground piston shaft provides additional durability, while an impact-resistant polyethylene shaft guard helps protect critical components from rocks, mud, and trail debris.
The bypass design combines velocity-sensitive and position-sensitive damping to provide controlled suspension movement throughout the shock's travel. Oversized rubber bushings and vehicle-specific mounting components further contribute to durability and proper suspension operation.
Installation & Fitment
The Old Man Emu BP5190013R is designed for the front right/passenger side of the 2019–2023 Ford Ranger. Its vehicle-specific design utilizes existing factory mounting locations without requiring additional vehicle modifications.
The coilover has an approximately 503mm open length and 402mm closed length. Because this is a side-specific suspension component, BP5190013R should be installed on the right/front passenger side of the vehicle. The corresponding left/front coilover is sold separately.
What’s Included
The package includes one Old Man Emu BP-51 adjustable bypass coilover for the front right/passenger side. This is a single coilover, not a complete front pair or four-corner suspension kit.
Ideal For
Perfect for 2019–2023 Ford Ranger owners looking for a premium suspension upgrade with extensive adjustability, the Old Man Emu BP-51 is ideal for daily driving, overlanding, trail use, off-road driving, and Rangers carrying additional accessories or cargo. Its independently adjustable compression and rebound damping allows the suspension to be tailored to different vehicle setups and driving conditions while providing the durability needed for demanding off-road use.
