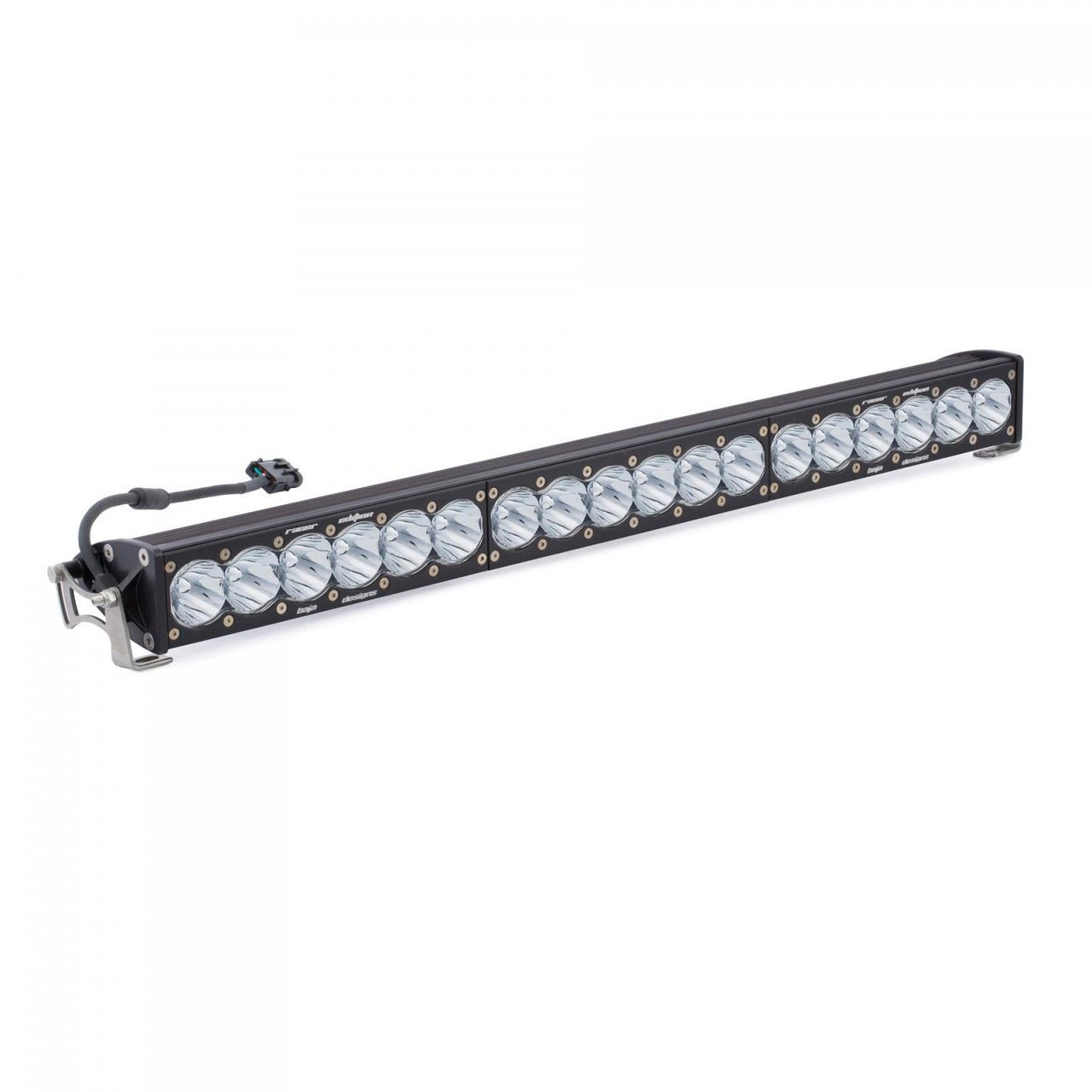

Baja Designs OnX6 30" Racer Edition LED Light Bar (High Speed Spot)

Universal Fit | Part Number: 413002

Take your off-road lighting to the next level with the Baja Designs OnX6 30" Racer Edition LED Light Bar. Built for high-speed desert racing and aggressive off-road driving, this light bar delivers extreme forward projection for maximum visibility when it matters most.

Featuring a High Speed Spot beam pattern, the 30" OnX6 is engineered to throw light farther downrange than traditional light bars—giving drivers critical reaction time at high speeds. Perfect for vehicles pushing past 100 MPH in low-light conditions.

Utilizing Baja Designs’ CopperDrive® technology, each LED operates at 100% efficiency, delivering maximum output without compromise. Combined with ClearView® optics, this light bar ensures precision beam control and long-distance performance.

Key Features

• Universal fitment
• Part Number: 413002
• 30-inch straight LED light bar
• High Speed Spot beam pattern
• 189 watts / 15.75 amps
• Designed for high-speed off-road performance
• CopperDrive® – LEDs driven at 100%
• ClearView® optics for maximum distance
• MoistureBlock™ waterproof construction
• uService® replaceable lenses and optics
• Hard-coated polycarbonate lens
• Aircraft-grade aluminum housing
• 50,000-hour LED lifespan
• 5000K daylight color temperature
• Includes mounting brackets and hardware
• Limited lifetime warranty

⚠️ Fitment Note (IMPORTANT)

❗ This is a universal-fit light bar
❗ Vehicle-specific mounting brackets may be required
❗ Wiring harness may be sold separately depending on setup
❗ Verify mounting location, clearance, and fitment before ordering

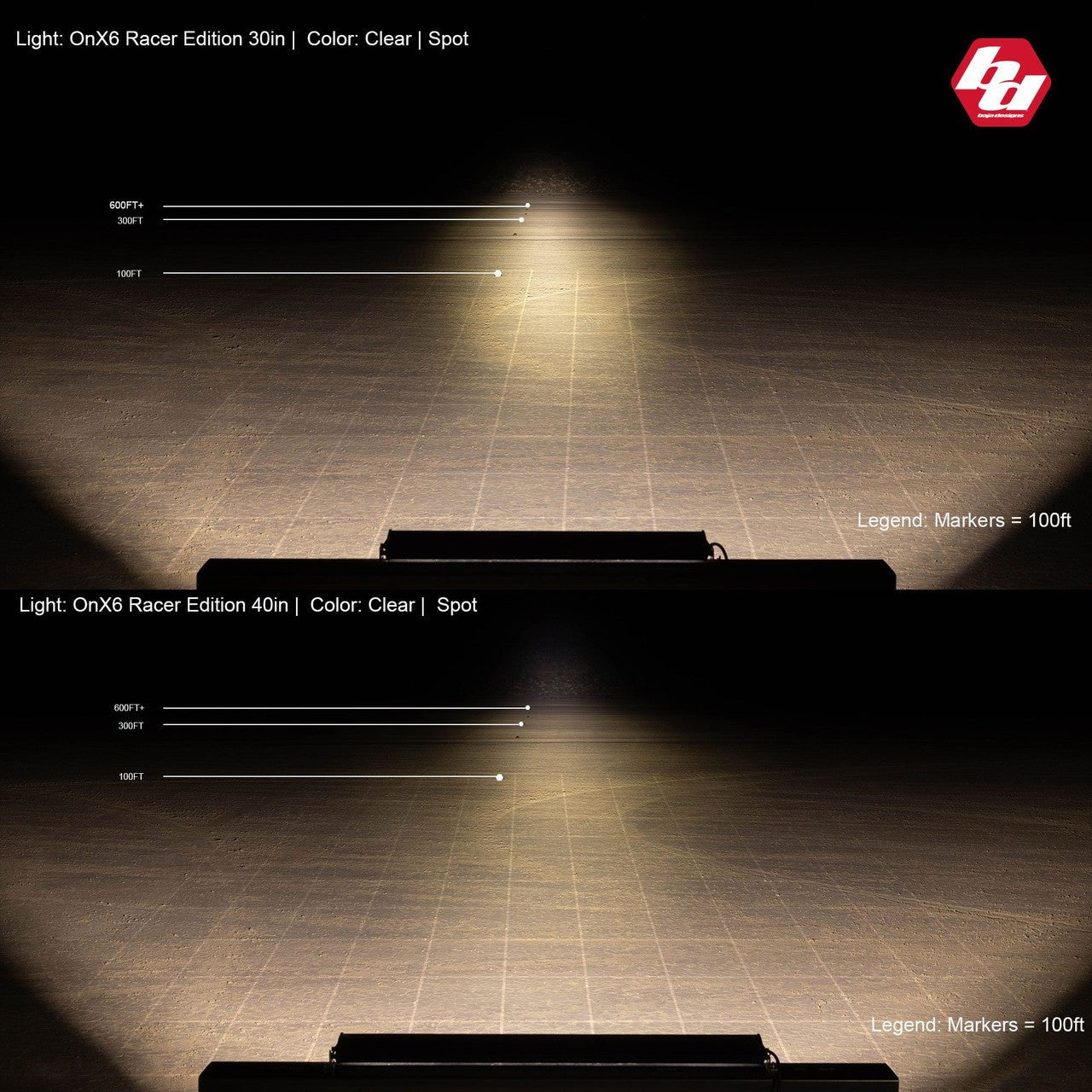

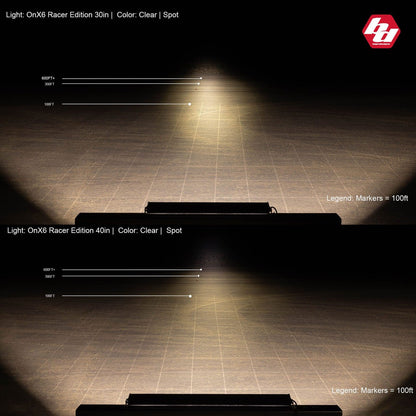

Built for High-Speed Visibility

• High Speed Spot beam projects light far downrange
• Designed for off-road racing and desert environments
• Provides increased reaction time at high speeds

👉 Ideal for Baja racing, high-speed trails, and long-distance visibility

30" OnX6 Performance Design

• Longer bar increases light output and coverage
• Focused beam pattern minimizes wasted light
• Balanced combination of power and distance

👉 More output and reach than shorter light bars

Premium Baja Designs Construction

• Aircraft-grade aluminum housing
• Hard-coated polycarbonate lens
• Fully waterproof and submersible design
• Built to withstand extreme vibration and impact

Engineered for the harshest off-road environments and race conditions.

uService® Advantage

• Replaceable lenses and optics
• Extend product lifespan
• Service without replacing the entire light bar

👉 Premium serviceability you won’t find on most light bars

What’s Included

• Baja Designs OnX6 30" Racer Edition light bar
• Mounting brackets
• Mounting hardware
• Installation instructions

Specifications

• Length: 30 inches
• Beam Pattern: High Speed Spot
• Power: 189W
• Current Draw: 15.75A
• Voltage: 9–28V
• Color Temperature: 5000K Daylight
• LED Lifespan: 49,930 hours
• Housing Color: Black

Installation

Universal mounting application
Vehicle-specific brackets may be required
Professional installation recommended
Common mounting locations include roof racks, bumpers, grilles, and light bars
