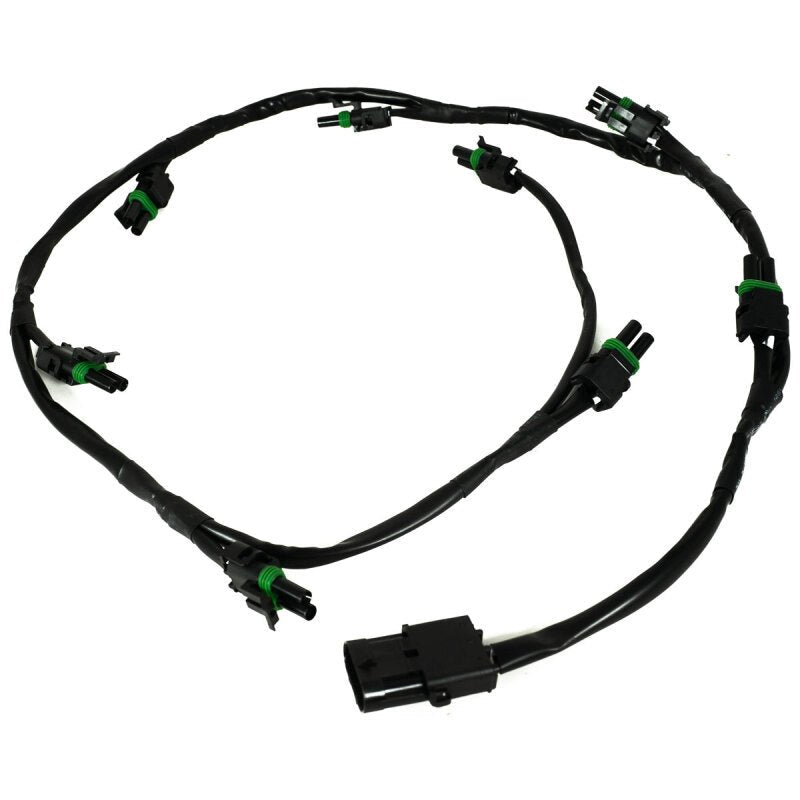

Baja Designs XL Linkable Wiring Harness (8 XL – Sport)

Universal Fit | Supports 8 XL Sport Lights | Part Number: 640192

Build your ultimate lighting setup with the Baja Designs XL Linkable Wiring Harness. Designed to support up to 8 XL Sport lights, this harness allows you to create a fully customizable, linkable light bar system for maximum output and coverage.

Perfect for roof-mounted light bars and off-road builds, this harness enables a clean and efficient way to power multiple lights in a single integrated setup without complicated wiring.

Whether you're building a high-performance off-road rig or upgrading your lighting system, this harness provides the flexibility and scalability needed for advanced lighting configurations.

Key Features

• Universal fitment
• Part Number: 640192
• Supports up to 8 XL Sport lights
• Designed for XL Linkable light systems
• Clean, organized multi-light wiring solution
• Plug-and-play style connections
• Expandable lighting configuration
• Reduces wiring complexity
• High-quality connectors for durability
• Limited lifetime warranty

⚠️ Fitment Note (IMPORTANT)

❗ Designed for Baja Designs XL Sport lights ONLY
❗ Compatible with XL Linkable systems
❗ Not compatible with S2, Squadron, LP, or S8 lights
❗ Requires compatible main wiring harness (sold separately)
❗ Verify light compatibility before ordering

Designed for Linkable Light Bars

• Connect multiple XL lights into one system
• Create custom-length light bars
• Perfect for roof rack and off-road setups

👉 Ideal for high-output lighting builds

Supports Up to 8 Lights

• Max capacity: 8 XL Sport lights
• Great for full-width roof light bars
• Scalable for future upgrades

👉 Built for maximum lighting performance

Clean & Efficient Wiring

• Reduces wiring clutter
• Simplifies installation
• Organized harness layout

👉 Professional-grade wiring solution

Perfect for Off-Road Builds

• Ideal for overland and trail rigs
• Commonly used on roof racks and light bars
• Designed for high-performance lighting systems

👉 Built for serious off-road setups

What’s Included

• XL Linkable wiring harness (8-light configuration)
• Integrated connectors for XL Sport lights
• Installation instructions

Specifications

• Compatibility: XL Sport lights ONLY
• Max Capacity: 8 lights
• Application: Linkable light bar systems
• Install Type: Plug-and-play connectors
• Use Case: Roof light bars / off-road lighting

Installation

Connects directly to XL Sport lights
Designed for linkable light bar setups
Requires main power harness
Professional installation recommended
Typical install time: ~1–2 hours

Popular Vehicle Applications

👉 2021+ Ford Bronco

Perfect for roof-mounted XL linkable light bar builds on the Bronco. Ideal for high-output off-road lighting setups using multiple XL Sport lights.

👉 2019+ Ford Ranger

Great for Ranger roof rack lighting systems and custom light bar builds. Allows clean and scalable wiring for multi-light setups.

👉 Works with most off-road trucks and SUVs

Why Buy from Iron Ridge Offroad

✔ Fast Shipping
✔ Authorized Baja Designs Dealer
✔ Fast Processing
✔ Off-Road Experts You Can Trust

Complete your lighting system with the Baja Designs XL Linkable Wiring Harness (640192) the essential solution for building a clean, powerful, and fully customizable multi-light setup.
