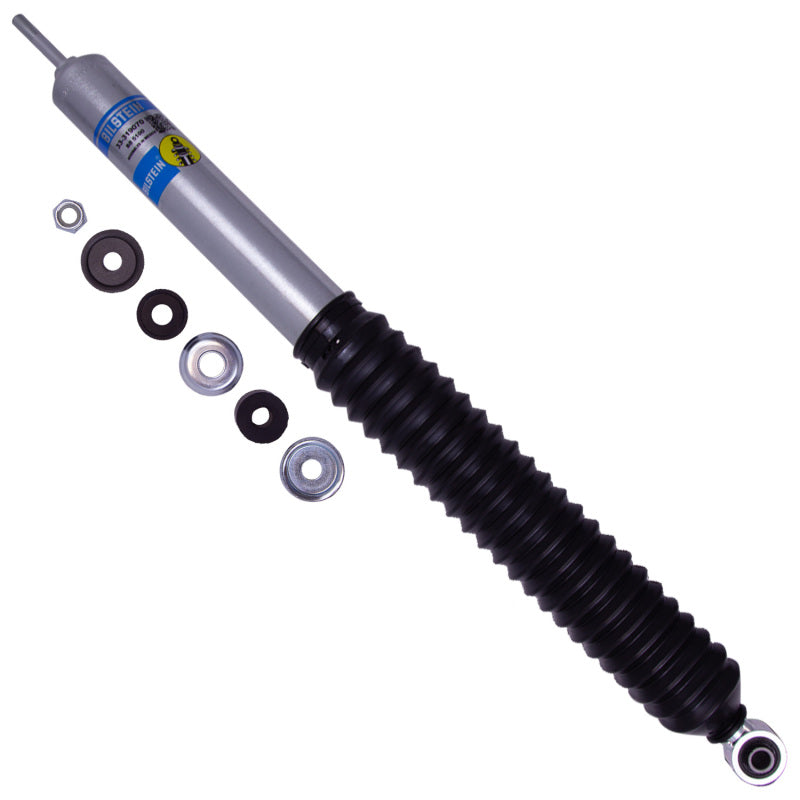

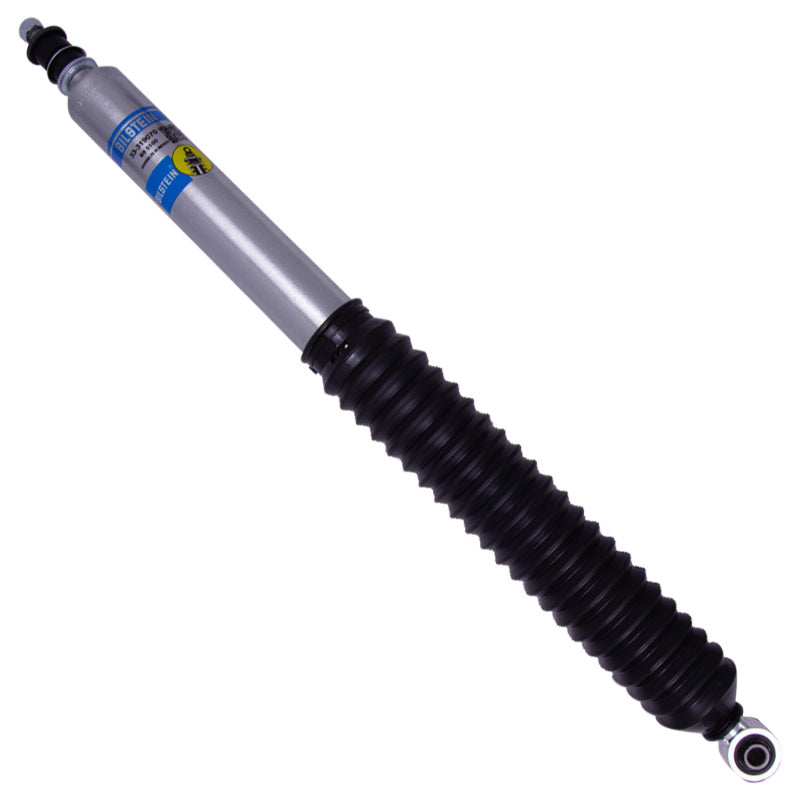

Bilstein B8 5100 Rear Shock

Part #: 33-319070

Overview

The Bilstein B8 5100 Rear Shock is designed for the 2016–2023 Toyota Tacoma with approximately 4" of rear lift. Its monotube design and vehicle-specific digressive valving provide improved control, handling and heat dissipation for lifted Tacomas used on the street or off-road.

This part number includes one rear shock. Two are required to replace both rear shocks.

Key Features

• Fits 2016–2023 Toyota Tacoma
• Rear position
• Designed for approximately 4" rear lift
• B8 5100 Series
• 46mm digressive piston
• 2.0" shock body
• Monotube gas-pressure design
• Vehicle-specific valving
• Improved control and handling
• Fade-resistant performance
• Zinc-plated finish for corrosion protection
• Black protective bellows included
• Direct-fit installation
• Bilstein Limited Lifetime Warranty

Installation & Fitment

Fits: Toyota Tacoma (2016–2023)

Position: Rear – Driver or Passenger Side

Series: B8 5100

Rear Lift: Approximately 4"

Design: Monotube

Body Diameter: 2.0"

Piston: 46mm

Shaft Diameter: 14mm

Reservoir: No

Collapsed Length: 16.48"

Extended Length: 26.38"

Travel: 9.90"

Upper Mount: Stem

Lower Mount: Eye – 12mm

Damping: Non-Adjustable

Quantity: 1 Shock

What's Included

• (1) Bilstein B8 5100 Rear Shock Absorber
• Black protective bellows

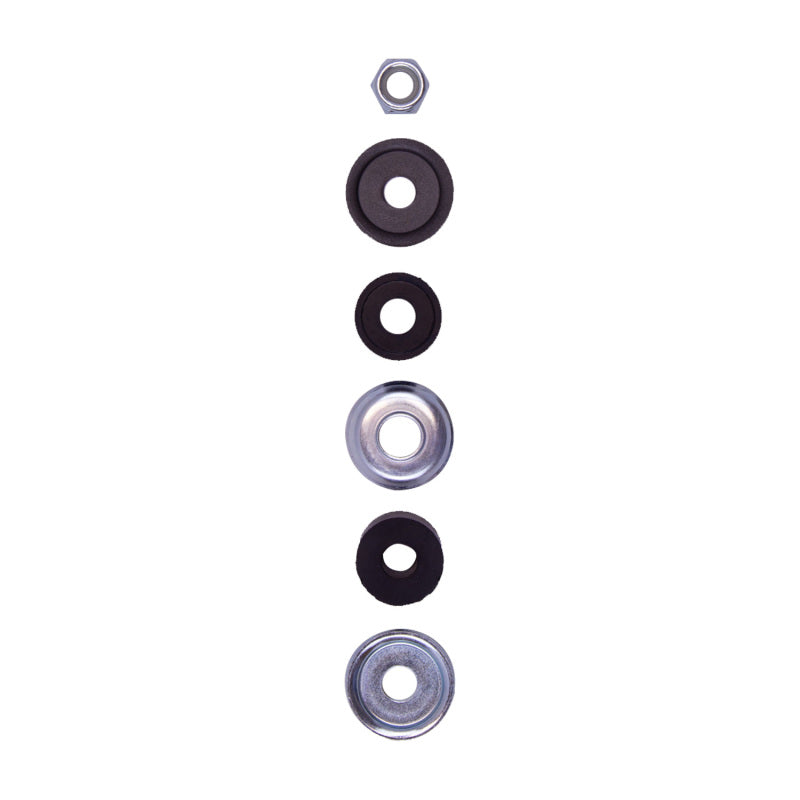

• Applicable shock mounting hardware

Sold individually. Order quantity 2 for a complete rear shock replacement.
