Vendor: Bilstein

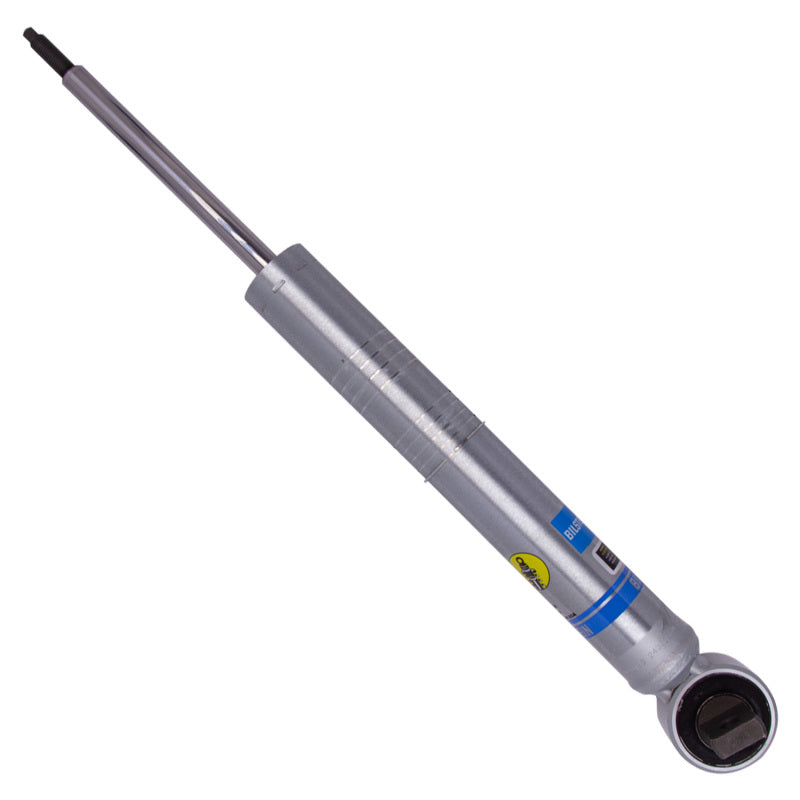

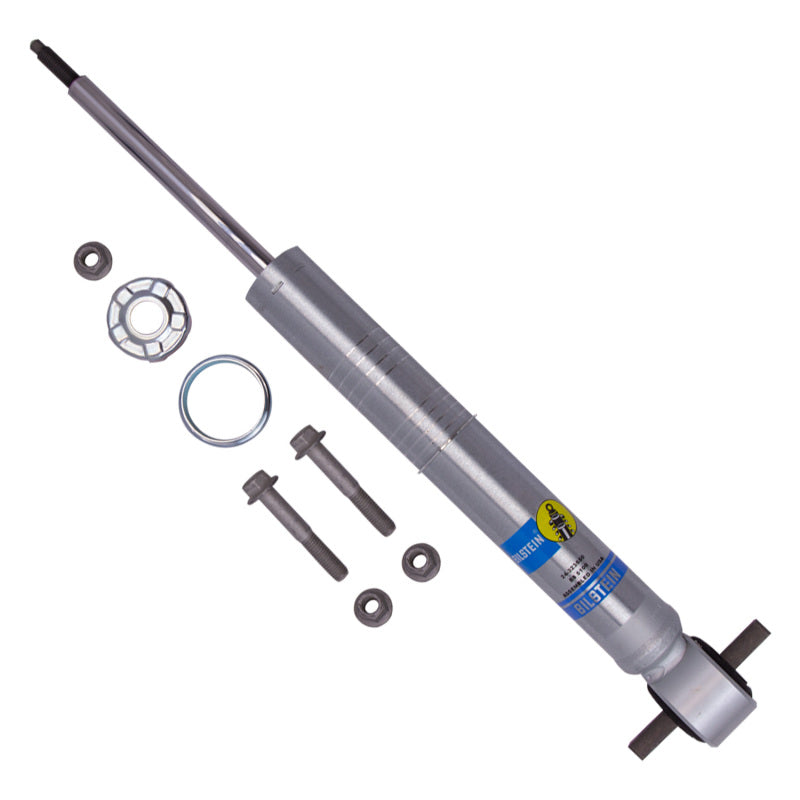

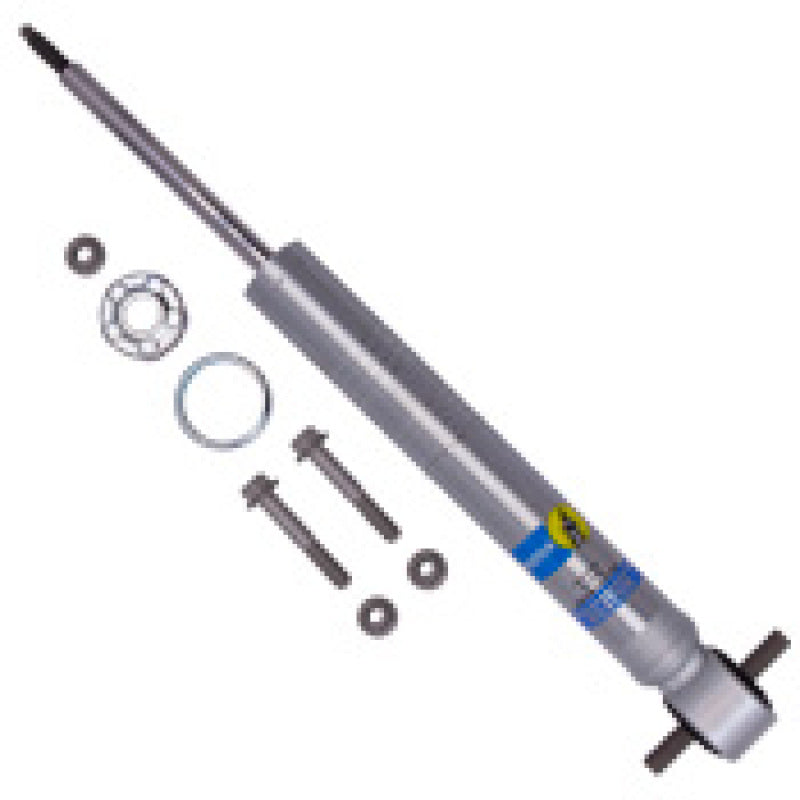

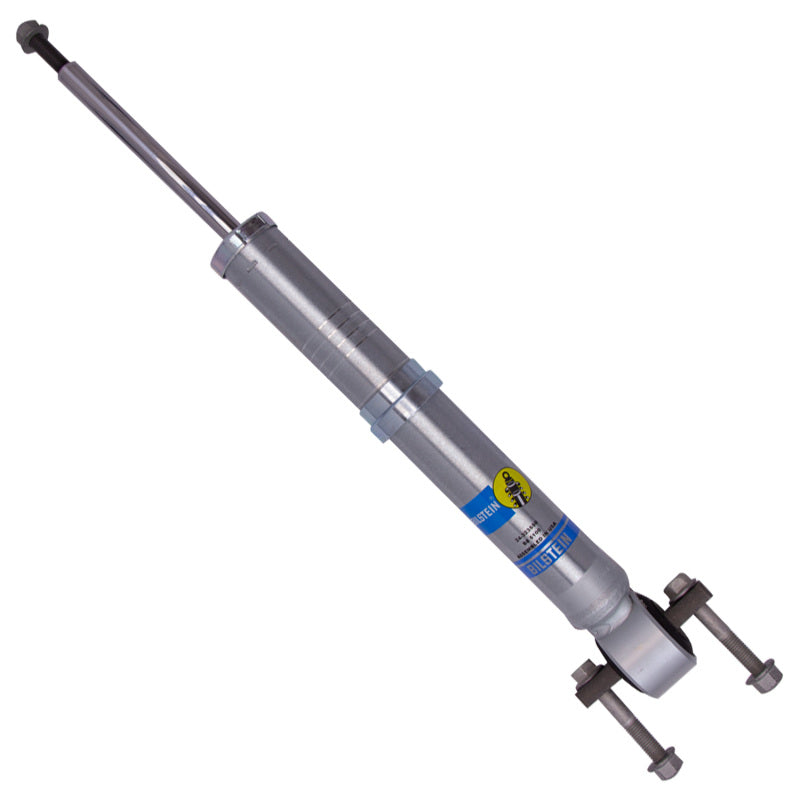

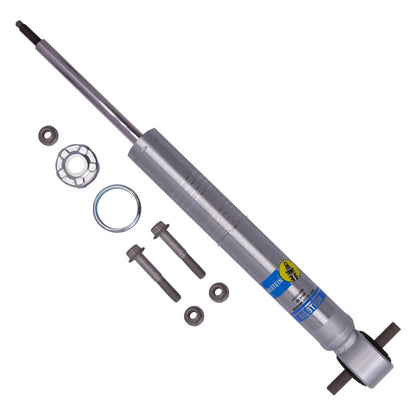

Bilstein B8 5100 Ride Height Adj Shock | Ford Bronco 21-24 (24-323550) (16.63 in.)

Name: Bilstein B8 5100 Ride Height Adj Shock | Ford Bronco 21-24 (24-323550) (16.63 in.)
Brand: Bilstein
SKU: 24-323550
Price: 168.00 USD
Availability: InStock

$168.00 USD

~~$235.00 USD~~ $168.00 USD

Sale Sold out

Shipping calculated at checkout.

Part Description

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2021-2024 Ford Bronco are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.

Standard Features

46mm monotube design ensures consistent, fade-free performance in all conditions
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

Part Number	24-323550
Part Name	Shock Absorber
Vehicle	2021-2024 Ford Bronco
UPC	651860891699
Front Lift Height	0 - 1.7 in.
Body Design	Snap Ring Grooved Body (Coilover)
Body Diameter (ID)	46 mm
Boot Included	No
Collapsed Length	16.63 in.
Collapsed Length	422.3 mm
Damping Adjustable	No
Extended Length	22.80 in.
Extended Length	579.2 mm
Finish	Zinc Plated
Internal Design	Monotube
Lower Mount Type	Crossbar
Reservoir	No
Segment	Light Truck
Series	B8 5100 (Ride Height Adjustable)
Spring Seat Included	No - Reuse OEM
Upper Mount Type	Stem
