Bilstein B8 8112 ZoneControl CR DSA+ Front Right Coilover

Part #: 41-319581

Overview

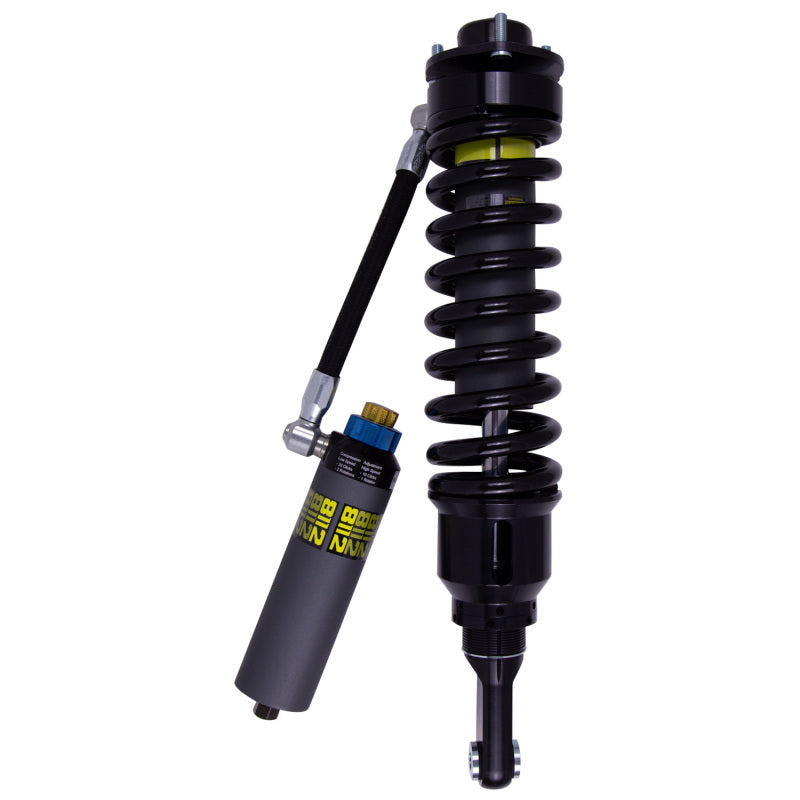

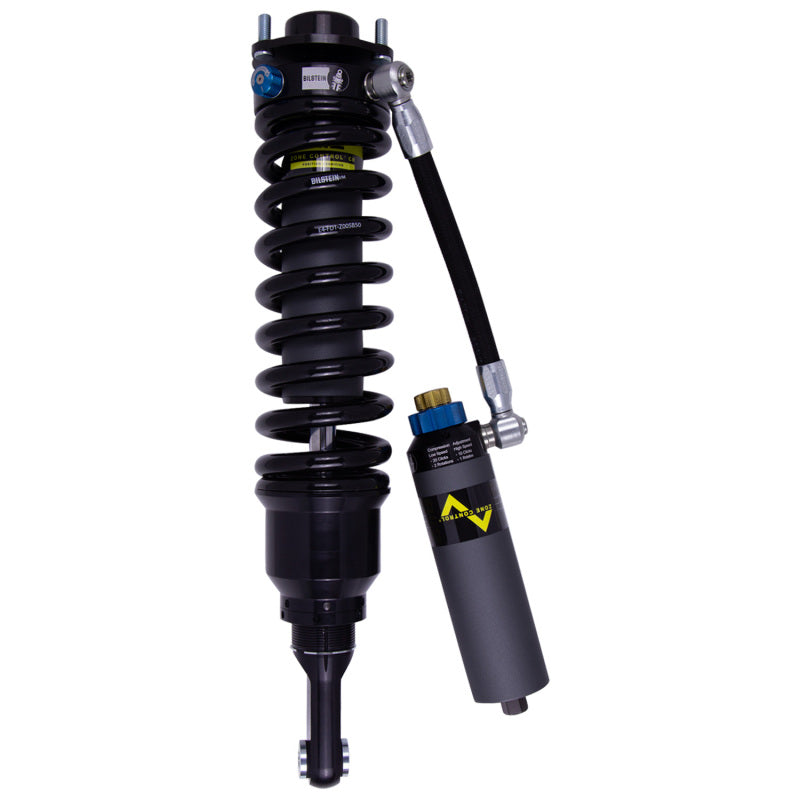

The Bilstein B8 8112 ZoneControl CR DSA+ Coilover delivers premium adjustable suspension performance for the 2005–2023 Toyota Tacoma. Its position-sensitive triple-piston design combines three compression zones and two rebound zones with independent high- and low-speed compression adjustment for greater control both on and off-road.

A threaded spring seat provides approximately 0.4–2.6" of front lift, while the remote reservoir increases oil capacity and cooling for demanding use.

This part number is for the front passenger-side coilover only.

Key Features

• Fits 2005–2023 Toyota Tacoma
• Front right / passenger-side
• Provides approximately 0.4–2.6" of front lift
• B8 8112 ZoneControl CR DSA+ Series
• Position-sensitive damping
• Triple-piston design
• 3 compression zones and 2 rebound zones

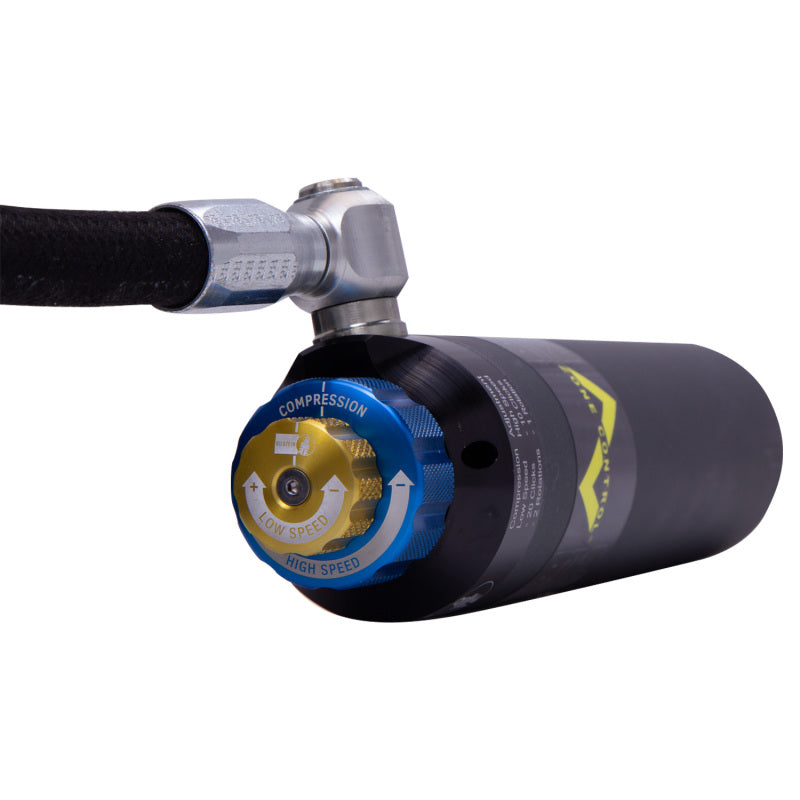

• Adjustable high- and low-speed compression

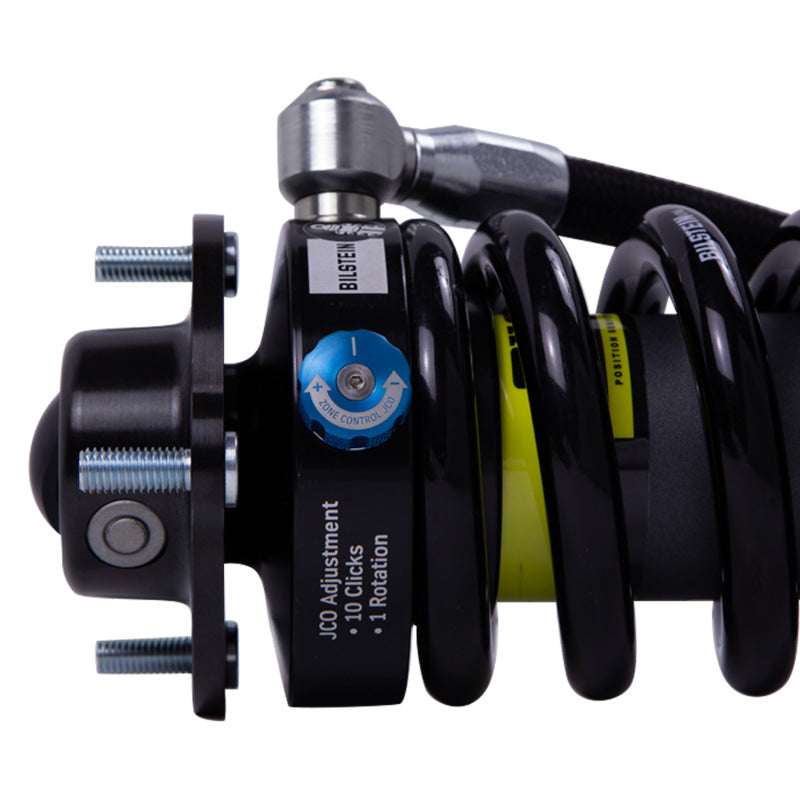

• Adjustable JCO internal hydraulic bump stop
• 60mm piston
• 2.65" shock body
• 600 lb/in front spring
• 22mm shock shaft
• Remote reservoir for increased oil capacity and cooling
• Threaded spring seat for ride-height adjustment
• EVO Grey shock with Black spring
• Made in the USA

Installation & Fitment

Fits: Toyota Tacoma (2005–2023)

Position: Front Right / Passenger Side

Series: B8 8112 ZoneControl CR DSA+

Front Lift: Approximately 0.4–2.6"

Design: Monotube Coilover

Body Diameter: 2.65"

Piston: 60mm

Shaft Diameter: 22mm

Spring Rate: 600 lb/in

Reservoir: Remote

Collapsed Length: 17.42"

Extended Length: 22.39"

Damping Adjustment: High & Low Speed Compression

Internal Bump Stop: Adjustable JCO

Aftermarket Upper Control Arms Required: Yes

Quantity: 1

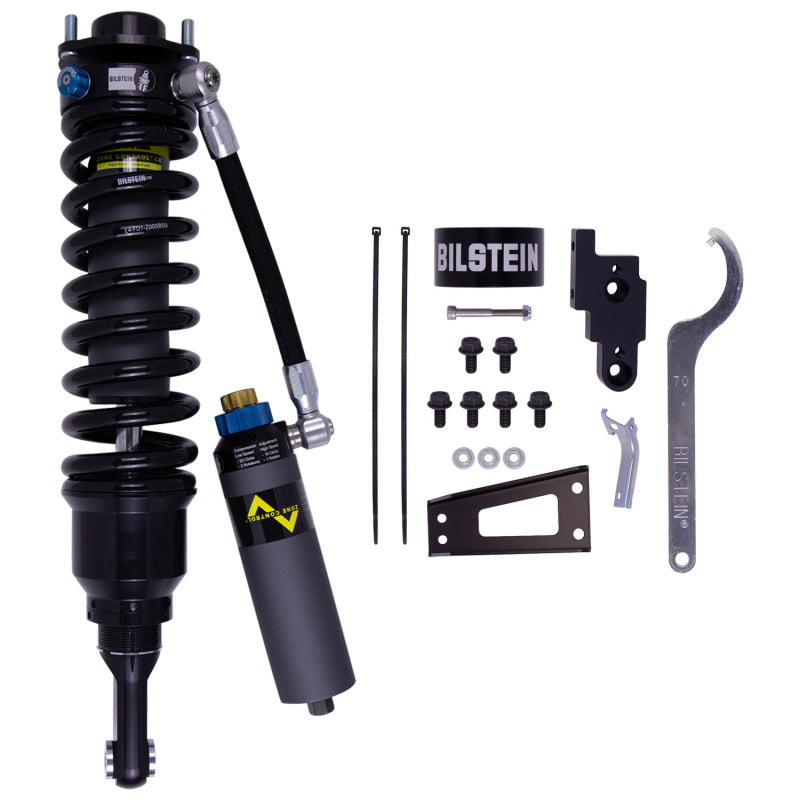

What's Included

• (1) Bilstein B8 8112 ZoneControl CR DSA+ Front Right Coilover Assembly
• 600 lb/in coil spring
• Remote reservoir
• Anodized reservoir chassis mount

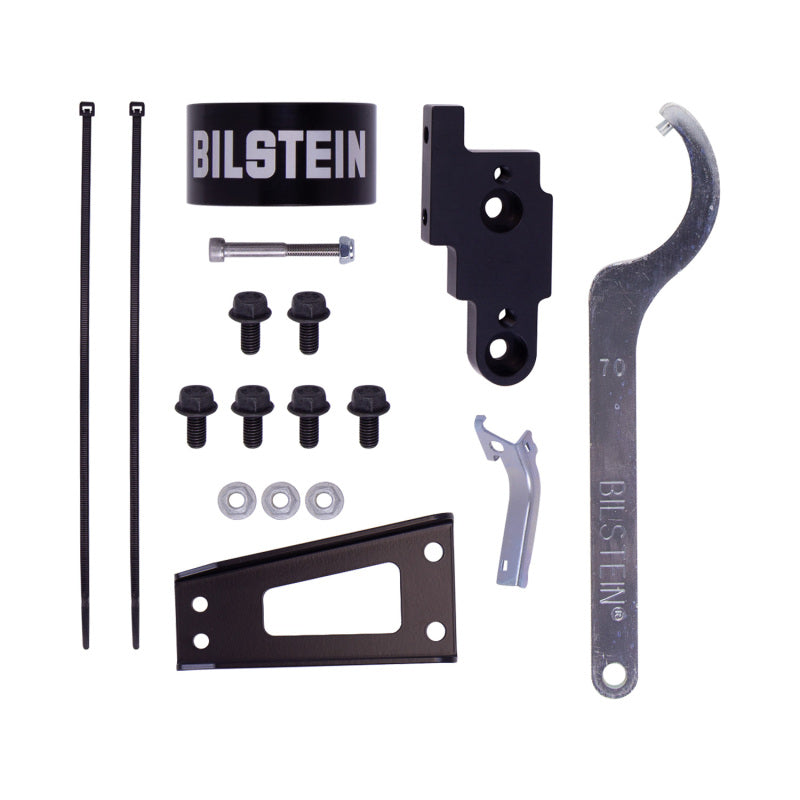

• Installation components

Sold individually. For a complete front setup, order matching driver-side Part # 41-319574 separately.
