2024–2026 Tacoma Suspension: Check the Rear Setup First

If you are shopping for a 2024–2026 Tacoma suspension upgrade, check the rear suspension, cab configuration, powertrain, and factory damping system before comparing lift height. Fourth-generation Tacomas do not all use the same rear layout. Double Cab trucks generally use a multi-link coil-spring rear suspension, while XtraCab models use leaf springs.

That difference immediately rules out many parts that may appear correct by model year alone. The Eibach products discussed below are for listed non-hybrid, 2.4L turbo Double Cab applications with coil-spring rear suspension. They are not blanket recommendations for XtraCab, i-FORCE MAX hybrid, TRD Pro, Trailhunter, or Adaptive Variable Suspension-equipped trucks.

Start with these five questions

Before choosing springs, shocks, or coilovers, identify:

• Cab: Double Cab or XtraCab?
• Rear suspension: Multi-link coil springs or leaf springs?
• Powertrain: Standard i-FORCE 2.4L turbo or i-FORCE MAX hybrid?
• Factory suspension: Conventional dampers, AVS, or a specialized TRD Pro or Trailhunter system?
• Load: Is the truck near factory weight, or does it carry constant rear weight?

If any answer is uncertain, confirm it from the truck before ordering. A product title that says “2024–2026 Tacoma” does not prove compatibility with every configuration.

Coil-spring and leaf-spring Tacomas need different parts

Toyota’s fourth-generation Tacoma introduced an available multi-link coil rear suspension, but leaf springs did not disappear. Toyota lists leaf springs on XtraCab versions of the SR and SR5, as well as the TRD PreRunner. Double Cab versions use the multi-link coil arrangement in the configurations relevant to the Eibach parts below.

The easiest visual check is underneath the rear of the truck. A coil-spring Tacoma has separate coil springs between the axle and frame. A leaf-spring Tacoma has stacked spring leaves running lengthwise beside the frame. A rear coil spring cannot replace a leaf pack, and the associated shocks and mounting requirements should not be assumed to cross over.

Standard rear lift springs or heavy-load springs?

Standard rear springs: E30-82-105-01-02

The Eibach E30-82-105-01-02 rear Pro-Lift spring pair is the standard-load option in this group. Eibach lists approximately one inch of rear lift for its supported non-hybrid Double Cab applications and requires these springs to be used with Eibach Pro-Truck Sport rear shocks.

This is the more appropriate direction when the truck remains near normal operating weight and the owner wants a matched rear lift. It is not for a leaf-spring XtraCab, hybrid application, or AVS-equipped model.

500-pound constant-load rear springs: E30-82-105-02-02

The Eibach E30-82-105-02-02 HD rear spring pair is designed around approximately 500 pounds of additional constant rear weight. Eibach states that its listed height is measured with that added weight and recommends running the springs at the fully loaded condition. It also requires matching Eibach Pro-Truck Sport rear shocks.

Constant load means equipment that normally stays on the truck: a bed cap, rack, rooftop tent, drawers, tools, auxiliary fuel, recovery gear, or a combination that approaches the intended load. Weekend cargo that is removed after a trip is not the same thing. Heavy-load springs on an otherwise empty truck can create excessive rear height and poor ride quality.

Front-only upgrades still require a full-truck plan

A front lift changes stance and clearance, but the rear configuration still matters. Decide whether the goal is to level a factory-weight truck, compensate for a bumper and winch, or build a balanced suspension system with rear springs and shocks.

The Eibach E86-82-105-01-20 PRO-TRUCK 2.0 front coilover pair provides threaded height adjustment. Eibach lists a 0.5–2.5-inch front range for supported 4WD trucks and 1.5–3.0 inches for supported RWD trucks. Actual height varies with trim, accessories, weight distribution, and adjustment.

Eibach’s current application covers listed SR5, TRD Sport, TRD Off-Road, premium-package versions of those grades, and Limited Double Cab trucks with the non-hybrid 2.4L turbo, in RWD or 4WD, while excluding AVS models. Do not transfer that fitment to a hybrid Tacoma or assume it replaces the specialized suspension on a TRD Pro or Trailhunter.

When a complete system makes more sense

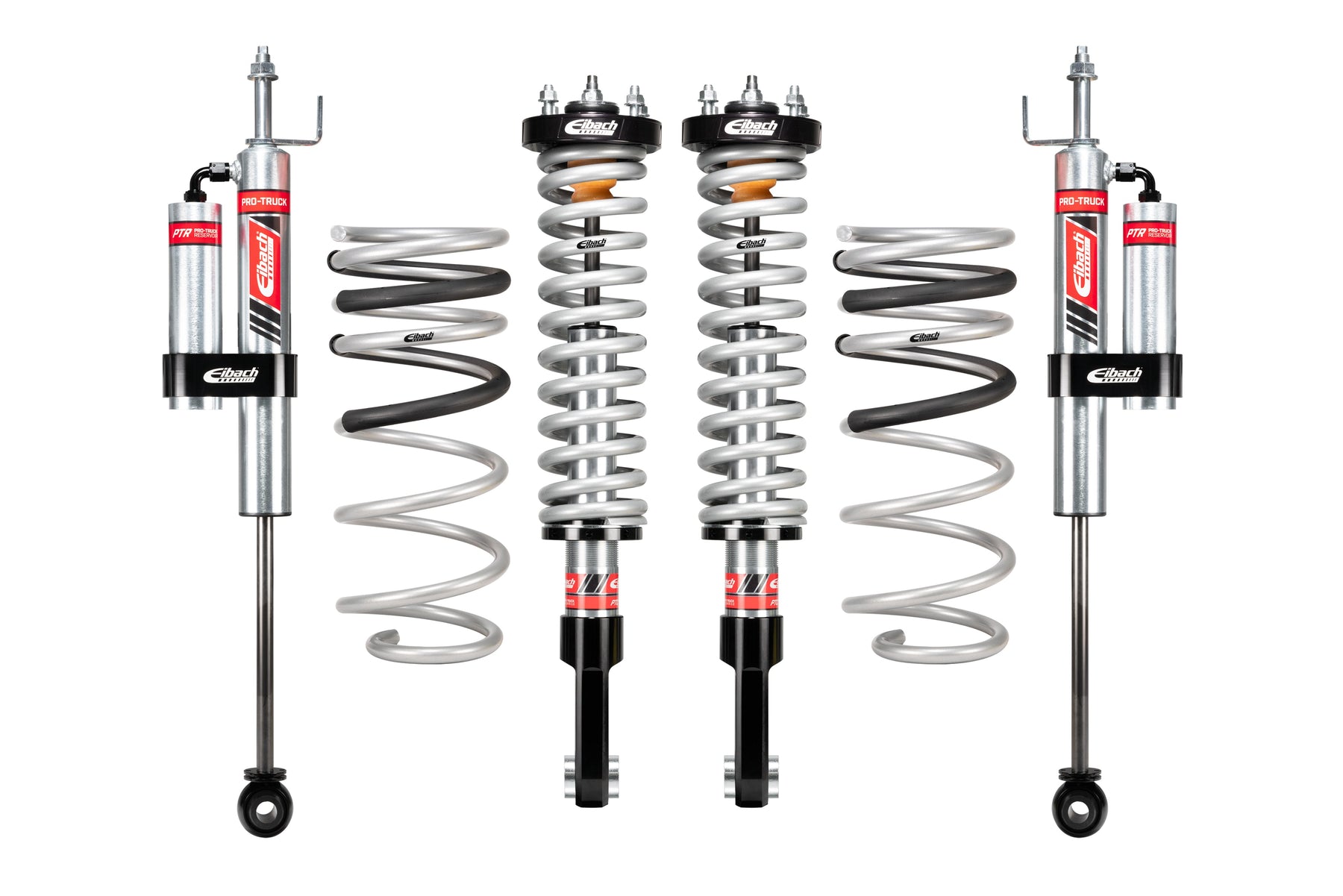

Owners who want front coilovers, rear lift springs, and matched reservoir shocks can consider the Eibach E86-82-105-02-22 Stage 2R suspension system. It includes a pair of front coilovers, rear reservoir shocks, and rear springs.

For supported non-hybrid Double Cab trucks, Eibach lists the same 0.5–2.5-inch 4WD and 1.5–3.0-inch RWD front ranges, with approximately one inch of rear lift. The complete package is useful when the buyer wants components engineered as a system instead of combining unrelated front and rear parts.

It still carries the same important boundaries: listed non-hybrid Double Cab applications, RWD or 4WD as specified, and no AVS. A complete box does not eliminate the need to verify the truck.

Configurations that need separate research

XtraCab and TRD PreRunner

These trucks use leaf-spring rear suspension. Shop specifically for leaf-spring-compatible rear components and verify cab, bed, drivetrain, and trim. The rear Eibach coil springs in this article do not apply.

i-FORCE MAX hybrid

The hybrid powertrain changes vehicle weight and application requirements. Eibach publishes separate hybrid part numbers for several fourth-generation Tacoma systems. Do not select a non-hybrid kit because the model year and cab appear correct.

Limited with AVS

Toyota’s Adaptive Variable Suspension uses electronically controlled dampers. The Eibach products featured here explicitly exclude AVS applications. Confirm whether your Limited has AVS before replacing shocks or coilovers.

TRD Pro and Trailhunter

These trims start with specialized factory off-road suspension and different hardware. Replacing it should solve a defined problem, such as managing a measured constant load or changing damping behavior. Standard Tacoma fitment should never be assumed.

Installation details that matter

Spring and coilover installation requires safely supporting the vehicle, unloading suspension components, and following current manufacturer instructions. Eibach specifies qualified installation and requires the standard rear lift springs to be paired with extended-travel Eibach rear shocks rather than the original shocks.

After changing ride height, schedule a professional alignment and check tire clearance at full steering lock and through suspension travel. Recheck brake-line, ABS-wire, and reservoir-hose clearance where applicable. Lift height does not increase Toyota’s payload or towing ratings.

The practical buying order

1. Confirm Double Cab or XtraCab.
2. Look underneath and identify coil springs or leaf springs.
3. Confirm non-hybrid or i-FORCE MAX hybrid.
4. Check for AVS or a specialized TRD Pro or Trailhunter suspension.
5. Estimate permanent accessory weight, not occasional cargo.
6. Choose a complete matched system or manufacturer-approved spring-and-shock combination.

That sequence prevents the most expensive suspension mistake: buying by model year while overlooking the hardware already under the truck. Browse the featured Eibach Tacoma suspension products above, or contact Iron Ridge Offroad with your year, cab, trim, drivetrain, powertrain, and permanent accessory weight for fitment help.
