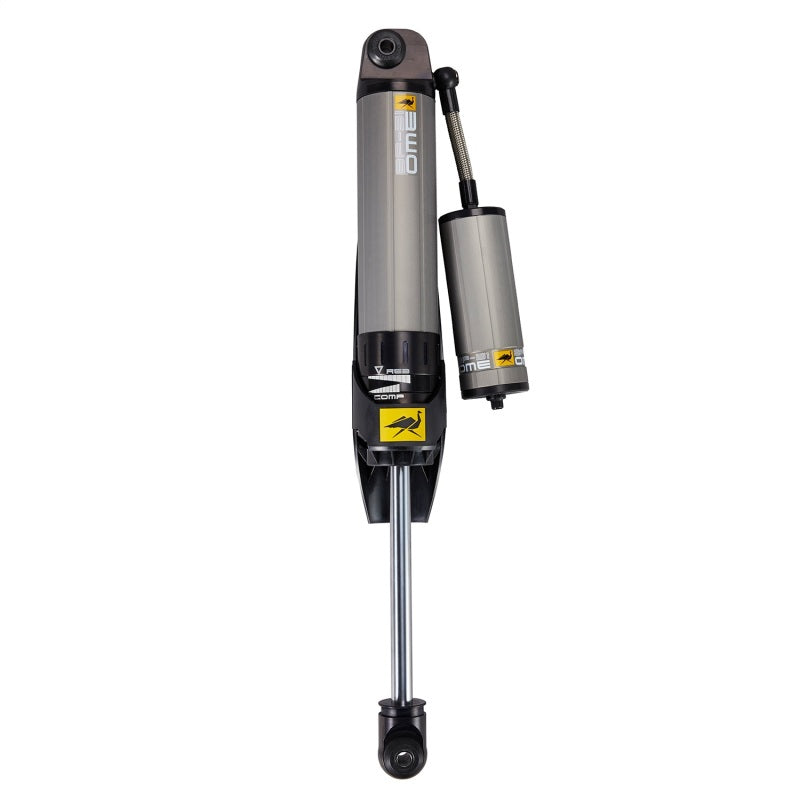

Old Man Emu BP-51 Adjustable Rear Right Shock
Fits 2019–2023 Ford Ranger – Rear Right
Part #: BP5160049R
Overview
The Old Man Emu BP-51 Rear Right Shock Absorber is designed to provide premium suspension performance for the 2019–2023 Ford Ranger. Combining a large 51mm bore, remote reservoir, position-sensitive bypass technology, and adjustable damping, the BP-51 delivers a balance of comfortable everyday ride quality and increased suspension control in demanding off-road conditions.
The BP-51's internal bypass design varies damping based on the position of the piston within the shock body. This allows the shock to remain compliant through the normal operating range while progressively increasing damping as the suspension approaches the limits of its travel. Independent compression and rebound adjustment also allows the shock's performance to be fine-tuned for different vehicle setups, loads, terrain, and driving preferences.
Key Features
The Old Man Emu BP-51 features a 51mm bore, remote reservoir, and position-sensitive internal bypass damping technology. Independent compression and rebound adjusters provide a wide range of suspension tuning, while the remote reservoir increases oil volume and helps manage heat during extended off-road use. The shock features a hard-chromed and precision-ground piston shaft, durable high-temperature Teflon reservoir hose, oversized bushings, and an impact-resistant polyethylene shaft guard for additional protection in demanding environments.
Construction & Design
The BP-51 shock body, remote reservoir, and major components are manufactured from 6061-T6 aluminum for excellent strength, heat dissipation, and corrosion resistance. A Type III hard-anodized finish provides additional protection against corrosion, stone impacts, and harsh off-road conditions.
The position-sensitive bypass design provides increased damping near the limits of suspension travel while maintaining a more compliant response through the normal ride zone. The remote reservoir increases available oil volume and helps maintain consistent damping performance during extended use.
Installation & Fitment
The Old Man Emu BP5160049R is designed for the rear right/passenger-side suspension of the 2019–2023 Ford Ranger. It features a vehicle-specific design that installs using the Ranger's existing suspension mounting locations.
The shock has an open length of 631mm and closed length of 400mm and is designed as a direct-fit rear suspension upgrade.
What’s Included
The package includes one Old Man Emu BP-51 Rear Right Shock Absorber with remote reservoir and associated shock components. This listing is for a single right-side rear shock.
Ideal For
Perfect for 2019–2023 Ford Ranger owners looking for a premium adjustable rear suspension upgrade, the Old Man Emu BP-51 is ideal for daily driving, overlanding, trail use, and demanding off-road driving. Its position-sensitive bypass technology, remote reservoir, and independently adjustable compression and rebound damping provide increased suspension control while allowing the shock to be tuned for different vehicle setups and driving conditions.
