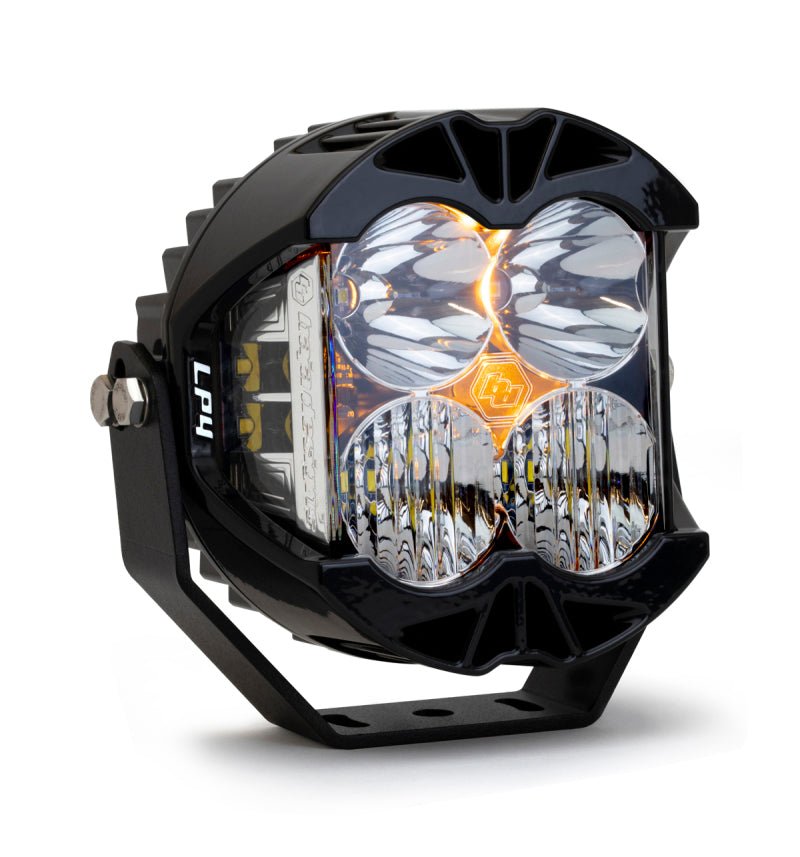

Baja Designs LP4 Pro LED Auxiliary Light Pod (Clear | Driving/Combo)

Universal Fit | Part Number: 290003

Upgrade your off-road lighting with the Baja Designs LP4 Pro LED Auxiliary Light Pod featuring a Clear lens with Driving/Combo beam pattern. Designed for serious off-road performance, the LP4 Pro delivers extreme output, long-distance visibility, and wide peripheral coverage in a compact round housing.

Producing up to 8,750 lumens with a massive 200-degree spread of usable light, the LP4 Pro combines forward projection with side illumination using Baja Designs’ Integrated Peripheral Technology (IPT).

The Driving/Combo beam pattern blends a spot beam (6°) for distance with a wide driving beam (42°) for near-field visibility, giving you the perfect balance of reach and coverage for both high-speed and trail driving.

Key Features

• Universal fitment
• Part Number: 290003
• Clear lens
• Driving/Combo beam pattern
• Up to 8,750 lumens
• 200° total light spread
• Integrated Peripheral Technology (IPT)
• CopperDrive® – LEDs driven at 100%
• Direct Ducted Cooling (DDC) for improved performance
• MoistureBlock™ waterproof construction
• ClearView® optics for optimized beam placement
• uService® replaceable lenses and optics
• Hard-coated polycarbonate lens
• Aircraft-grade aluminum housing
• 5000K daylight color temperature
• Limited lifetime warranty

⚠️ Fitment Note (IMPORTANT)

❗ This is a universal-fit light pod
❗ Vehicle-specific mounting brackets may be required
❗ This light does NOT include a wiring harness
❗ Applicable wiring harness: Baja Designs 640175 (sold separately)
❗ Verify mounting location, clearance, and wiring setup before ordering

Driving/Combo Beam Performance

• Spot beam provides long-distance projection
• Wide driving beam improves near-field visibility
• Balanced lighting for speed and trail awareness

👉 One of the most versatile beam patterns available

Clear Lens Maximum Output

• Delivers maximum brightness and distance
• Ideal for clear conditions and open terrain
• Produces a crisp 5000K daylight color

👉 Best choice for maximum performance and distance lighting

LP4 Pro High-Output Design

• 8,750 lumens with massive 200° spread
• 7,050 lumens forward + 1,700 peripheral lighting
• Compact 5" housing with extreme performance

👉 One of the highest output compact off-road lights available

Premium Baja Designs Construction

• Aircraft-grade aluminum housing
• Hard-coated polycarbonate lens
• Fully waterproof and submersible (IP69K rated)
• Built to withstand extreme vibration and impact

Engineered for racing, overlanding, and harsh off-road environments.

uService® Advantage

• Replaceable lenses and optics
• Extend product lifespan
• Service without replacing the entire light

👉 Premium serviceability you won’t find on most lights

What’s Included

• Baja Designs LP4 Pro LED light pod
• Mounting bracket
• Hardware
• Installation instructions

❗ Wiring harness NOT included (use Baja Designs 640175)

Specifications

• Light Output: Up to 8,750 lumens
• Beam Pattern: Driving/Combo
• Lens Color: Clear
• Forward Lumens: ~7,050
• Peripheral Lumens: ~1,700
• Power: ~60W
• Voltage: 9–28V
• Light Spread: 200°
• Color Temperature: 5000K
• Dimensions: 5.1" x 5.1" x 3.2"
• Housing Color: Black

Installation

Universal mounting application
Vehicle-specific mounts recommended
Wiring harness required (sold separately)
Professional installation recommended
Common mounting locations include bumpers, A-pillars, roof racks, and light bars
