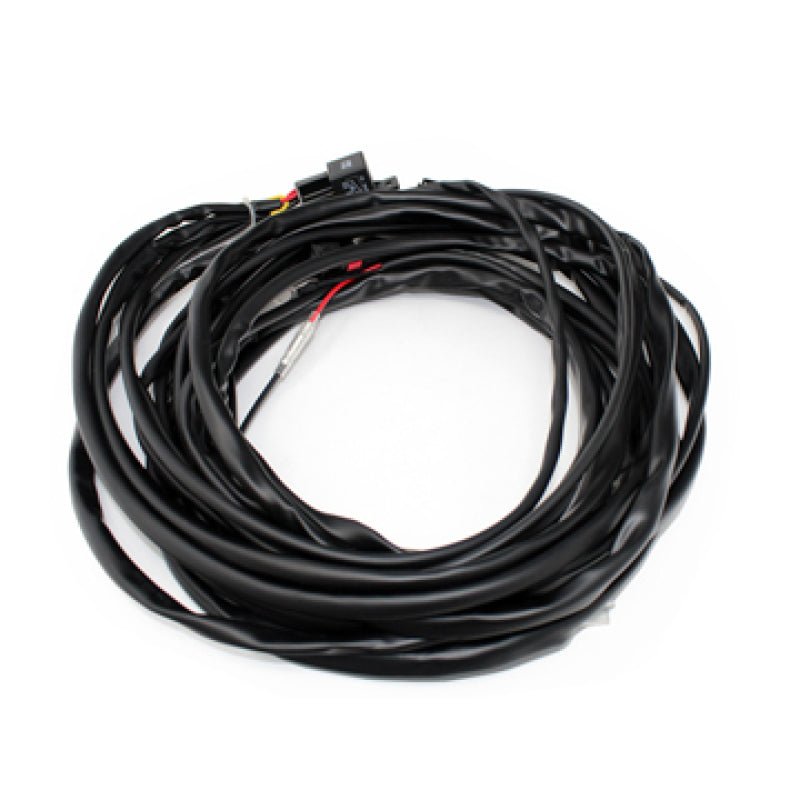

Baja Designs Automotive RTL Wiring Harness (Running / Brake / Reverse)

Universal Fit | Part Number: 640127

Power your rear lighting system the right way with the Baja Designs Automotive RTL Wiring Harness. Designed specifically for RTL rear light bars, this harness provides a complete, reliable solution for powering all lighting functions on your vehicle.

This harness is built to reach the rear of your truck or SUV and includes a relay and heavy-duty wiring to support all RTL functions, including running light, brake light, and reverse/cargo light.

Engineered for durability and ease of installation, it delivers a clean, professional wiring setup for off-road, overland, and daily-driven builds.

Key Features

• Universal automotive fitment
• Part Number: 640127
• Designed for Baja Designs RTL rear light bars
• Supports running, brake, and reverse/cargo light functions
• Includes relay and inline fuse protection
• Extended length to reach rear mounting locations
• Heavy-duty wiring and protective sheathing
• Weather-resistant connectors
• Clean and reliable installation solution
• Limited lifetime warranty

⚠️ Fitment Note (IMPORTANT)

❗ Designed for Baja Designs RTL light bars ONLY
❗ Automotive (truck/SUV) applications
❗ Provides wiring for running, brake, and reverse functions
❗ Does NOT include turn signal functionality
❗ For RTL-S models with turn signals, you will also need:
   • Baja Designs 640130 (RTL-S Turn Signal Harness)
❗ Verify your light type before ordering

👉 This is critical — prevents incorrect installs and returns

Designed for RTL Rear Light Bars

• Purpose-built for Baja Designs RTL series
• Provides full functionality for rear safety lighting
• Ensures proper operation of all light outputs

👉 The correct harness for standard RTL setups

Full Rear Lighting Control

• Running light for constant visibility
• Brake light for stopping indication
• Reverse/cargo light for backing up and utility use

👉 Covers all core rear lighting functions

Extended Length for Rear Mounting

• Designed to reach rear bumpers or roll cages
• Ideal for trucks, SUVs, and overland builds
• Simplifies wiring across full vehicle length

👉 No need for custom extensions

Built for Off-Road Durability

• Heavy-duty wiring and sheathing
• Weather-resistant connectors
• Designed for vibration and harsh environments

Engineered to perform in extreme off-road conditions.

What’s Included

• Baja Designs RTL automotive wiring harness
• Relay and inline fuse
• Pre-terminated connectors
• Installation-ready wiring leads

Specifications

• Compatibility: RTL light bars
• Functions: Running / Brake / Reverse
• Application: Automotive (truck/SUV)
• Voltage: 12V system
• Connector Type: Weather-resistant connectors
• Harness Type: Rear lighting harness

Installation

Runs from front battery to rear light mounting location
Connects to vehicle lighting circuits
Includes relay and fuse protection
Professional installation recommended
Typical install time: ~45–90 minutes
