Vendor: Bilstein

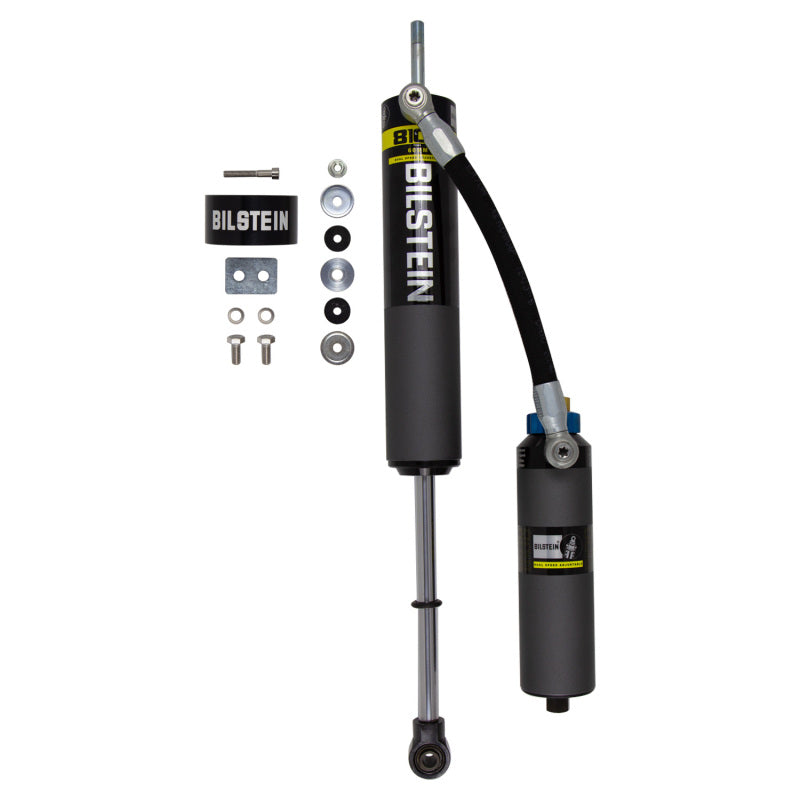

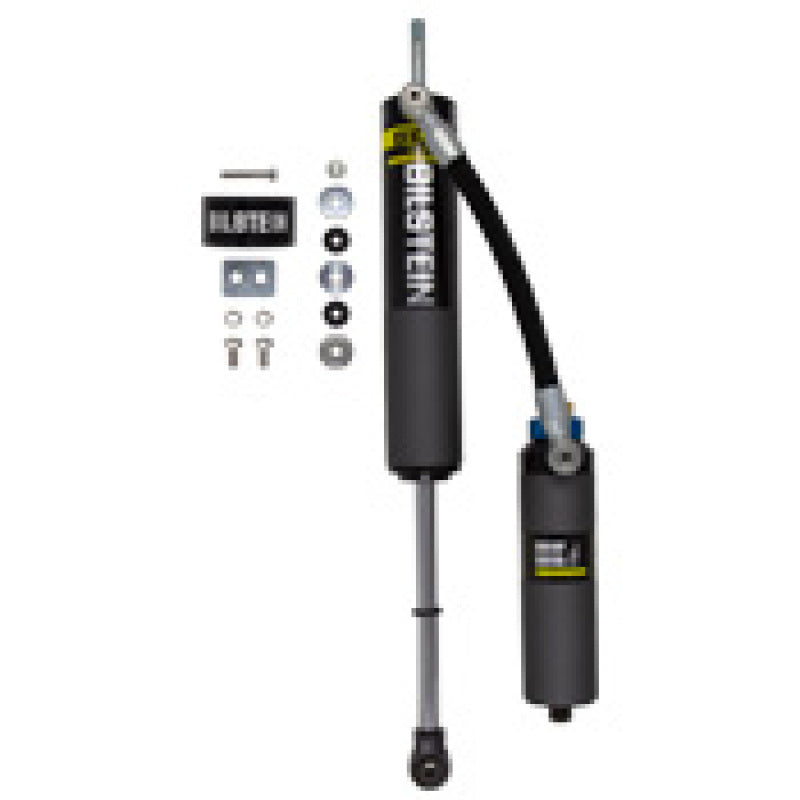

Bilstein 60mm Rear Shock Absorbers | Toyota Tacoma (05-23) (25-294071)

Bilstein 60mm Rear Shock Absorbers | Toyota Tacoma (05-23) (25-294071)

Regular price $835.00 USD
Regular price $909.85 USD Sale price $835.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Part Description

The Bilstein B8 8100 (DSA) Reservoir Shock Absorber for the 2005-2015 Toyota Tacoma is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.

These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.

Standard Features

  • 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
  • Direct fit for an easy installation

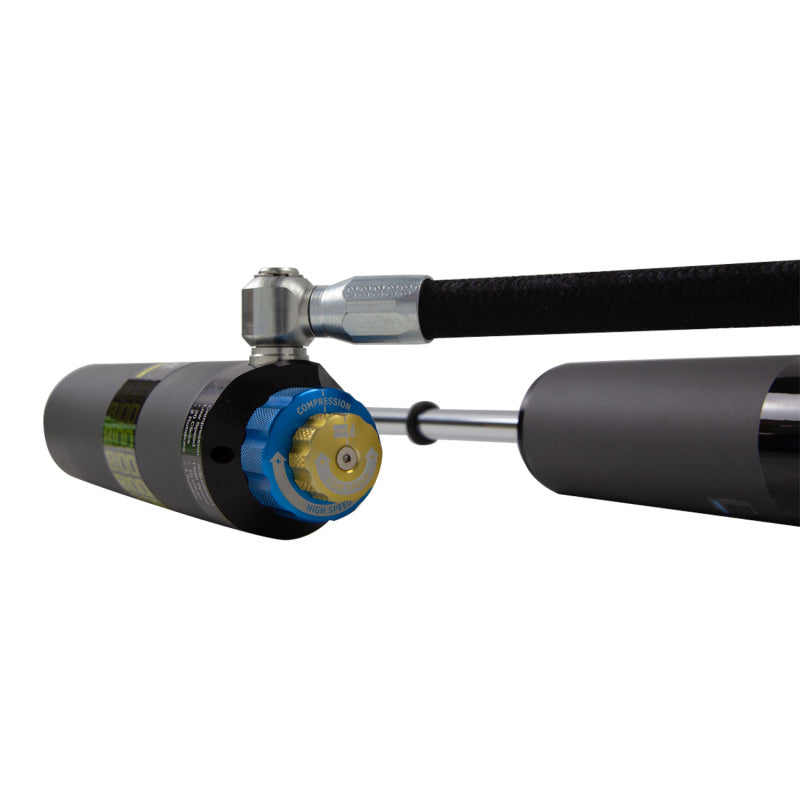

  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Specifications
Part Number 25-294071
Part Name Shock Absorber
Vehicle 2005-2015 Toyota Tacoma
UPC 651860908168
Rear Lift Height 0 - 1.5 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 14.25 in.
Collapsed Length 362.0 mm
Damping Adjustable Yes
Extended Length 22.80 in.
Extended Length 579.0 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 12 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (DSA)
Spring Seat Included No
Upper Mount Type Stem
Notes Requires wheels with maximum of 4.75" backspacing
Vehicle Fitment
  • 2005 Toyota Tacoma
  • 2006 Toyota Tacoma
  • 2007 Toyota Tacoma
  • 2008 Toyota Tacoma
  • 2009 Toyota Tacoma
  • 2010 Toyota Tacoma
  • 2011 Toyota Tacoma
  • 2012 Toyota Tacoma
  • 2013 Toyota Tacoma
  • 2014 Toyota Tacoma
  • 2015 Toyota Tacoma
