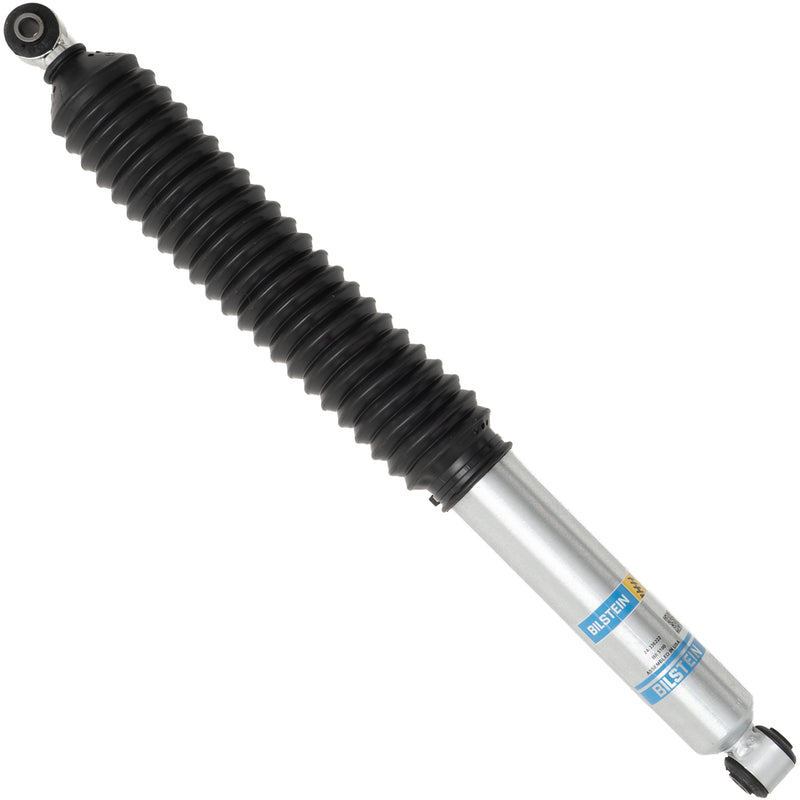

Bilstein B8 5100 Rear Shock – 0–1 in. Lift | Ford Ranger 4WD (2024–2026) (24-336222)

Part #: 24-336222

Overview

The Bilstein 24-336222 B8 5100 is built for the rear suspension of the 2024–2026 Ford Ranger. It uses a 46mm digressive piston and vehicle-specific tuning to improve suspension control while retaining a direct-fit mounting layout.

Designed for Rangers with 0–1 inch of rear lift, this shock is suited to a leveled or mildly lifted setup. The digressive piston responds to changing shaft speeds to balance ride comfort with control over uneven pavement and trail surfaces.

Key Features

• 46mm digressive piston with Ranger-specific tuning.
• Application range: 0–1 inch rear lift.
• Monotube gas-pressure design helps limit oil foaming during repeated suspension movement.

Construction & Design

The 46mm piston works inside a monotube damper body. Separating the pressurized gas from the working oil helps keep damping more consistent as the shock cycles over rough surfaces.

Installation & Fitment

• Install in the rear shock mounting locations. Lift springs, blocks, or other ride-height components are separate; shock length must match the actual rear suspension setup.
• Ranger Raptor is excluded.

What’s Included

One shock absorber.

Vehicle Fitment

• 2024–2026 Ford Ranger Lariat
• 2024–2026 Ford Ranger XL
• 2024–2026 Ford Ranger XLT
