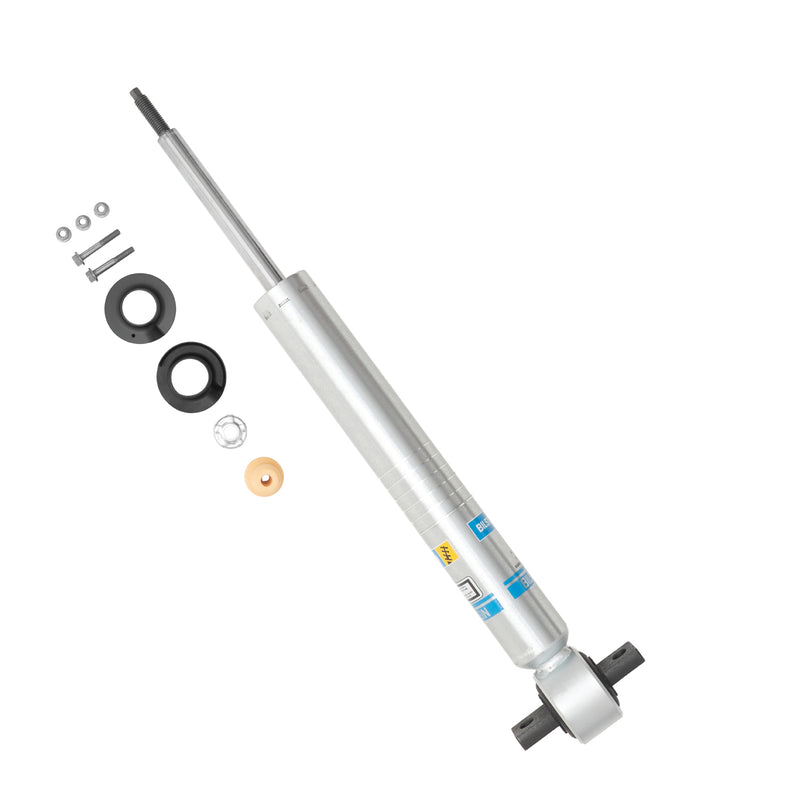

Bilstein B8 5100 Front Shock – 0–2.5 in. Lift | Ford Ranger 4WD (2024–2026) (24-336215)

Part #: 24-336215

Overview

The Bilstein 24-336215 B8 5100 Ride Height Adjustable is built for the front suspension of the 2024–2026 Ford Ranger. It uses a 46mm digressive piston and vehicle-specific tuning to improve suspension control while retaining a direct-fit mounting layout.

The adjustable spring seat allows 0–2.5 inches of front lift with the original coil spring. It gives you a way to level the truck through spring-seat position while also upgrading the damper, rather than relying only on a spacer.

Key Features

• 46mm digressive piston with Ranger-specific tuning.
• Application range: 0–2.5 inches of front lift.
• Monotube gas-pressure design helps limit oil foaming during repeated suspension movement.
• Multiple snap-ring grooves for front ride-height adjustment with OEM springs.

Construction & Design

The 46mm piston works inside a monotube damper body. Separating the pressurized gas from the working oil helps keep damping more consistent as the shock cycles over rough surfaces.

Installation & Fitment

• Transfer the original coil spring and upper mounting components. A suitable spring compressor is required, and the spring-seat position must follow Bilstein’s instructions for the desired Ranger ride height.
• Ranger Raptor is excluded. Check wheel alignment after front suspension work.

What’s Included

One shock absorber. Original coil spring and upper mount are reused.

Vehicle Fitment

• 2024–2026 Ford Ranger Lariat
• 2024–2026 Ford Ranger XL
• 2024–2026 Ford Ranger XLT
