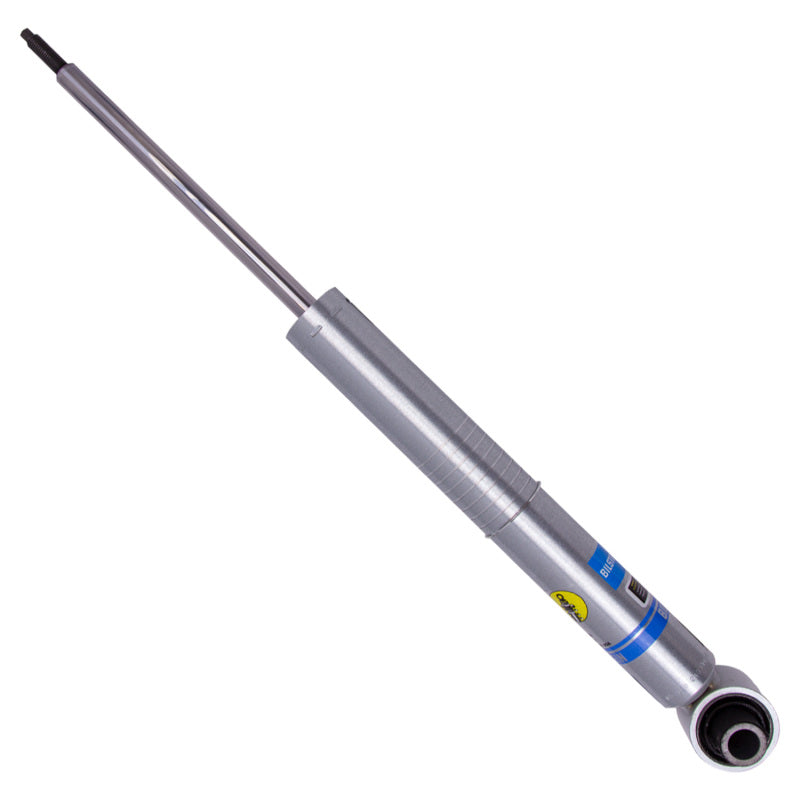

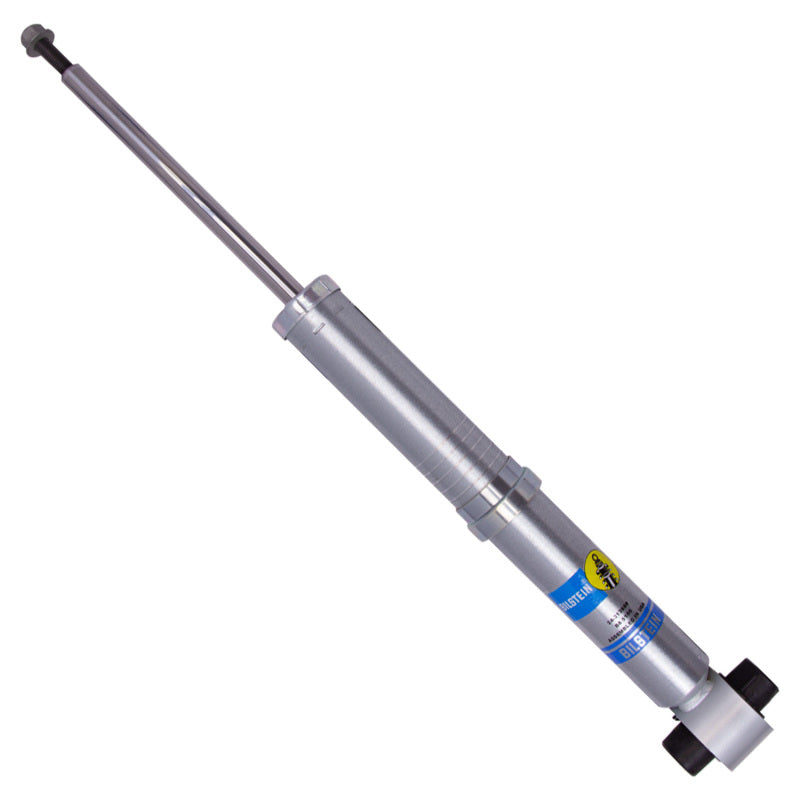

Bilstein B8 5100 Ride Height Adjustable Rear Shock

Fits 2021–2026 Ford Bronco 4-Door

Part #: 24-313988

Overview

The Bilstein B8 5100 Rear Shock upgrades suspension control while accommodating increased rear ride height on the 2021–2026 Ford Bronco 4-Door. Its vehicle-specific monotube design and digressive valving provide improved handling and consistent performance on the street and trail.

Key Features

• Fits 2021–2026 Ford Bronco 4-Door
• Rear suspension position
• B8 5100 Ride Height Adjustable Series
• Up to 2.5" rear lift, depending on configuration
• 46mm monotube design
• Digressive piston technology
• Application-specific valving
• 8.45" shock travel
• Zinc-plated finish
• High-pressure gas design
• Non-adjustable damping
• Sold individually
• Limited lifetime warranty

Construction & Design

The 24-313988 features a 46mm monotube design with Bilstein's digressive valving for consistent damping across varying road and trail conditions. The zinc-plated body provides corrosion resistance, while vehicle-specific tuning improves suspension response and control.

Installation & Fitment

The Bilstein 24-313988 fits the rear of 2021–2026 Ford Bronco 4-Door models. Detailed application data shows lift capability varies by factory suspension package.

Typical applications include:

• Non-Sasquatch: approximately 1–2.5" rear lift
• Sasquatch: approximately 0–1.4" rear lift
• Badlands Non-Sasquatch: approximately 0.3–1.7" rear lift

Fits 4-Door Bronco models only.

What’s Included

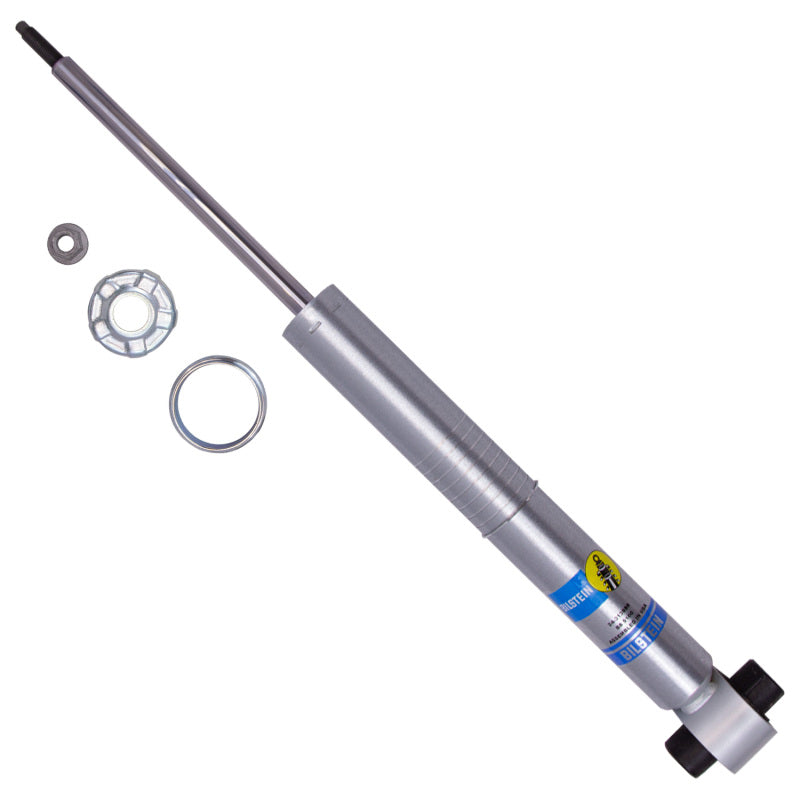

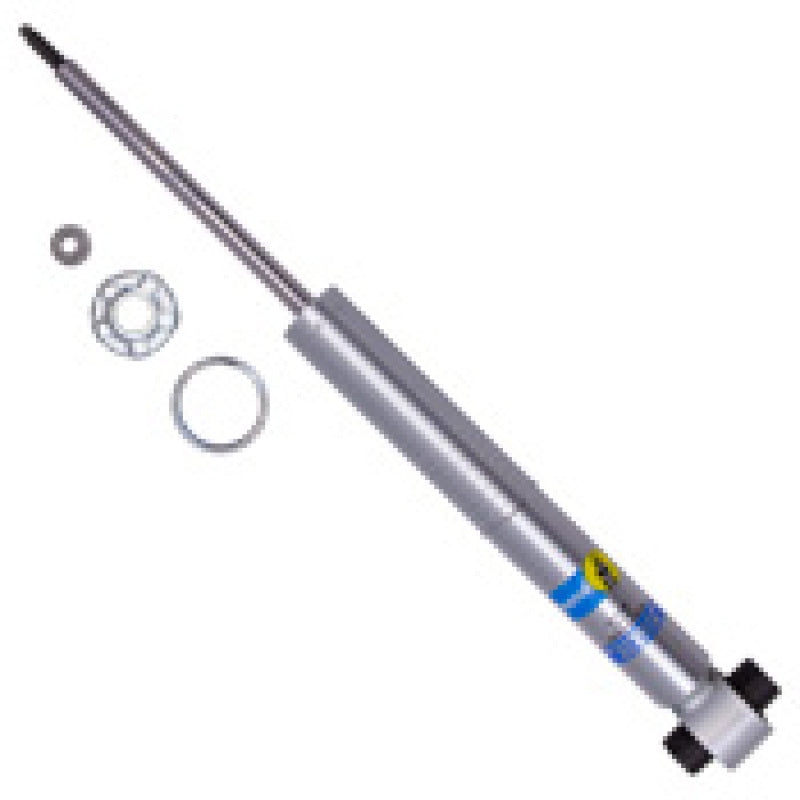

Includes one Bilstein B8 5100 rear shock absorber.

Two shocks are required to replace both rear shocks.

Ideal For

Perfect for Bronco 4-Door owners looking to improve rear suspension control while accommodating a lifted suspension setup. The B8 5100 provides Bilstein's proven monotube performance for daily driving, trail use, and off-road builds.
