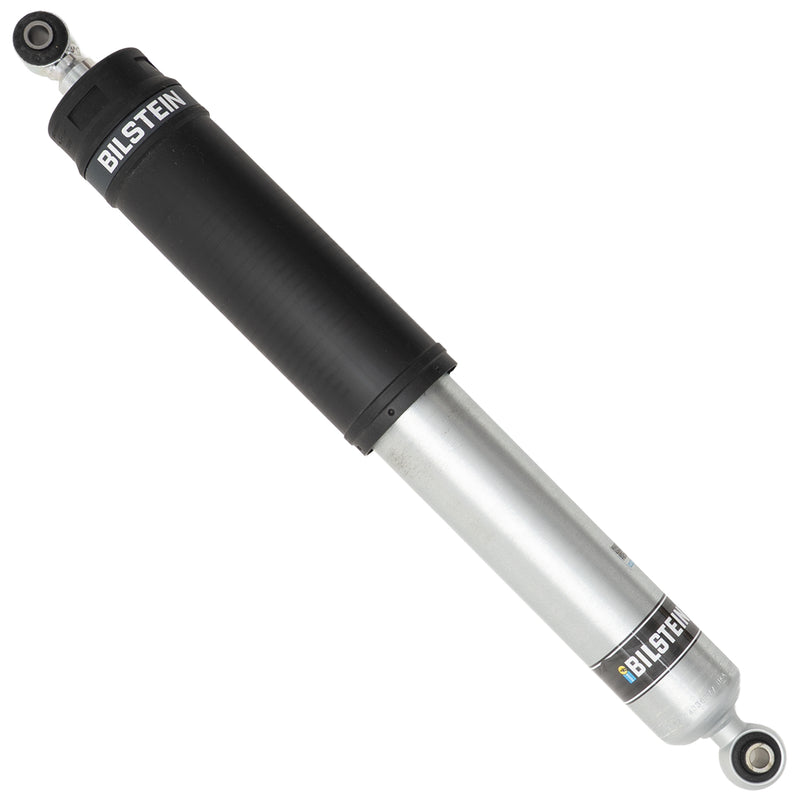

Bilstein B8 6100 Rear Shock – 0–1.5 in. Lift | Ford Ranger (2024–2026) (24-336277)

Part #: 24-336277

Overview

The Bilstein 24-336277 B8 6100 is built for the rear suspension of the 2024–2026 Ford Ranger. It uses a 60mm digressive piston and vehicle-specific tuning to improve suspension control while retaining a direct-fit mounting layout.

The larger 60mm piston and 2.65-inch outside-diameter body provide increased fluid capacity and heat management for rough roads and demanding use. This rear shock is intended for 0–1.5 inches of rear lift; it does not adjust or raise rear ride height.

Key Features

• 60mm digressive piston with Ranger-specific tuning.
• Application range: 0–1.5 inches of rear lift.
• Monotube gas-pressure design helps limit oil foaming during repeated suspension movement.

Construction & Design

The 60mm piston works inside a monotube damper body. Separating the pressurized gas from the working oil helps keep damping more consistent as the shock cycles over rough surfaces.

The 2.65-inch outside-diameter body provides room for the larger piston and additional oil capacity, improving the damper’s ability to manage heat.

Installation & Fitment

• Install in the rear shock mounting locations. Lift springs, blocks, or other ride-height components are separate; shock length must match the actual rear suspension setup.
• Ranger Raptor is excluded.

What’s Included

One shock absorber.

Vehicle Fitment

• 2024–2026 Ford Ranger Lariat
• 2024–2026 Ford Ranger XL
• 2024–2026 Ford Ranger XLT
