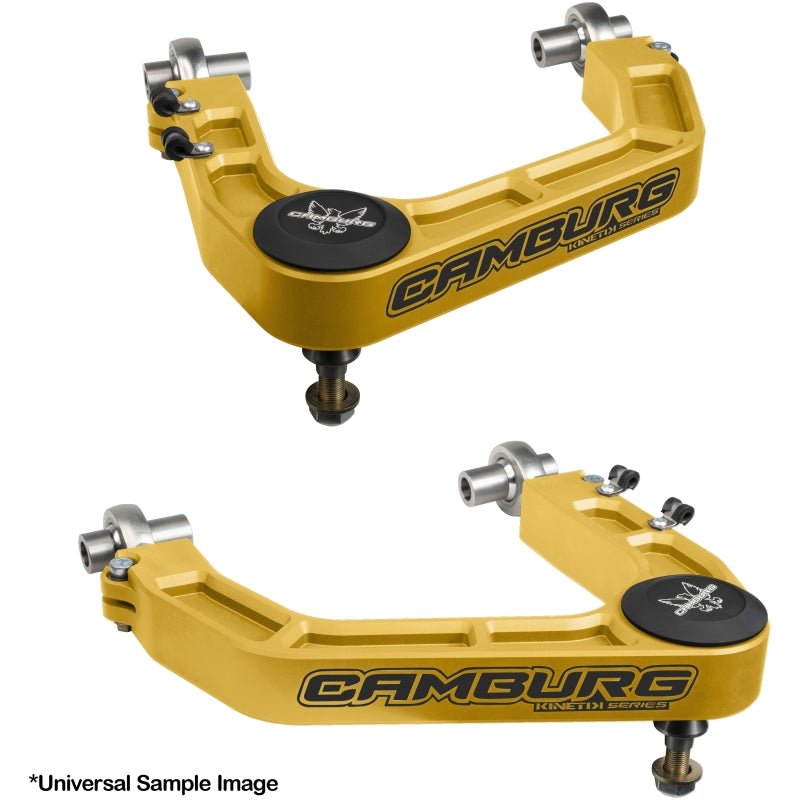

Camburg KINETIK V2 Performance Billet Uniball Upper Arms Gold - 2021+ Ford Bronco

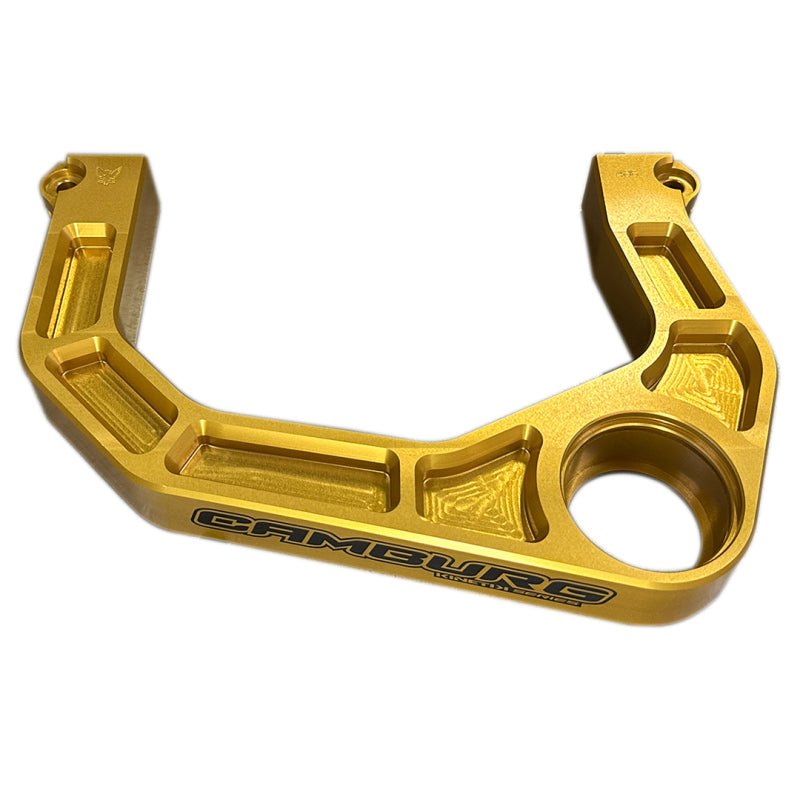

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these from aerospace quality 6061 billet aluminum, then send them out to be bead blasted, Type II anodized gold and have our Camburg logo laser etched. Like our tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger bolt with a low profile press-on uniball cap to resist the elements. Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use.
Camburg Ford Bronco '21-24 KINETIK V2 Performance Billet Uniball Upper Arms (GOLD)
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Eliminates weak factory ball-joints


• Increases usable wheel travel


• Corrects camber and caster

Fitment:
2021 Ford Bronco Badlands
2021 Ford Bronco Base
2021 Ford Bronco Big Bend
2021 Ford Bronco Black Diamond
2021 Ford Bronco First Edition
2021 Ford Bronco Outer Banks
2021 Ford Bronco Wildtrak
2022 Ford Bronco Badlands
2022 Ford Bronco Base
2022 Ford Bronco Big Bend
2022 Ford Bronco Black Diamond
2022 Ford Bronco Everglades
2022 Ford Bronco Outer Banks
2022 Ford Bronco Wildtrak
2023 Ford Bronco Badlands
2023 Ford Bronco Base
2023 Ford Bronco Big Bend
2023 Ford Bronco Black Diamond
2023 Ford Bronco Everglades
2023 Ford Bronco Heritage Edition
2023 Ford Bronco Heritage Limited Edition
2023 Ford Bronco Outer Banks
2023 Ford Bronco Wildtrak
2024 Ford Bronco Badlands
2024 Ford Bronco Big Bend
2024 Ford Bronco Black Diamond
2024 Ford Bronco Everglades
2024 Ford Bronco Heritage Edition
2024 Ford Bronco Heritage Limited Edition
2024 Ford Bronco Outer Banks
2024 Ford Bronco Wildtrak
