Camburg KINETIK X-Joint XL Trail Series Long Travel Kit – 2021–2026 Ford Bronco (Excludes Raptor)

+2-Inch Long Travel Suspension System | Billet KINETIK Upper Arms | Extended Axles | Blue Finish | SKU: CAM-110243-KX-BLU

Take your Bronco’s suspension performance to the next level with the Camburg KINETIK X-Joint XL Trail Series Long Travel Kit (CAM-110243-KX-BLU), engineered specifically for 2021–2026 Ford Bronco models excluding Bronco Raptor. Designed to bridge the gap between a daily-driven Bronco and a full race-inspired off-road build, this premium long travel system dramatically improves wheel travel, articulation, stability, and suspension performance in demanding terrain.

Camburg designed the Trail Series Long Travel Kit with a +2-inch wider stance per side, increasing suspension stability and allowing the Bronco to cycle more suspension travel without sacrificing turning radius. Utilizing OEM-style bolt-in aftermarket 2.5 or 3.0 coilovers, the system gives Bronco owners the flexibility to build their suspension in stages or fully transform their vehicle into a serious high-speed trail machine.

This KINETIK package includes Camburg’s premium Billet KINETIK Upper Control Arms paired with their heavy-duty X-Joint XL high-angle ball joints, designed for maximum wheel travel, improved steering response, and long-term durability in harsh off-road environments. Unlike traditional uniballs, the X-Joint XL design is fully sealed for lower maintenance and improved resistance to dirt, mud, sand, and water intrusion.

The lower control arms feature an internally gusseted boxed design for exceptional strength while maintaining lighter weight and increased ground clearance. Integrated aluminum skid plates help protect critical suspension components from rocks and trail damage. The system also includes +2-inch extended axle shafts to accommodate the increased track width and suspension travel.

Key Features

• SKU: CAM-110243-KX-BLU
• Fits 2021–2026 Ford Bronco models (Excludes Bronco Raptor)
• Trail Series long travel suspension system
• +2 inches wider per side
• Billet KINETIK upper control arms included
• Camburg X-Joint XL high-angle ball joints
• Internally gusseted boxed lower control arms
• Integrated aluminum skid plates
• Includes +2-inch extended axle shafts
• Designed for 2.5-inch and 3.0-inch bolt-in coilovers
• Improves wheel travel and articulation
• Improves high-speed off-road stability
• Maintains turning radius with up to 37-inch tires
• Heavy-duty off-road race-inspired design
• Made in the USA

⚠️ Fitment Note (IMPORTANT)

❗ Fits 2021–2026 Ford Bronco
❗ Does NOT fit Bronco Raptor models
❗ Compatible with 2-door and 4-door Broncos
❗ Designed for use with aftermarket bolt-in 2.5-inch or 3.0-inch coilovers
❗ Extended travel coilovers recommended for maximum wheel travel
❗ Allows use of up to 37-inch tires with proper wheel setup
❗ Requires aftermarket wheels with proper offset/backspacing
❗ Alignment required after installation
❗ Professional installation strongly recommended

True Long Travel Suspension Performance

• +2-inch wider stance improves stability
• Significantly increases wheel travel and articulation
• Excellent for desert runs and technical trails
• Improves suspension cycling capability
• Maintains turning radius with larger tires

👉 Designed for Bronco owners pushing beyond standard suspension upgrades

Premium KINETIK Billet Upper Arms

• Precision-machined billet aluminum construction
• Camburg X-Joint XL high-angle ball joints
• Sealed low-maintenance design
• Improved steering response
• Built for extreme suspension travel

👉 Race-inspired performance with improved long-term durability

Heavy-Duty Lower Control Arms

• Internally gusseted boxed arm construction
• Improved ground clearance
• Lighter weight design
• Integrated aluminum skid plates
• Built for aggressive off-road abuse

👉 Engineered to handle demanding trail and desert environments

Installation

Direct bolt-on long travel system
Requires aftermarket coilovers
Includes extended axle shafts and hardware
Front suspension disassembly required
Professional installation and alignment strongly recommended
Estimated install time: Approximately 8–12 hours

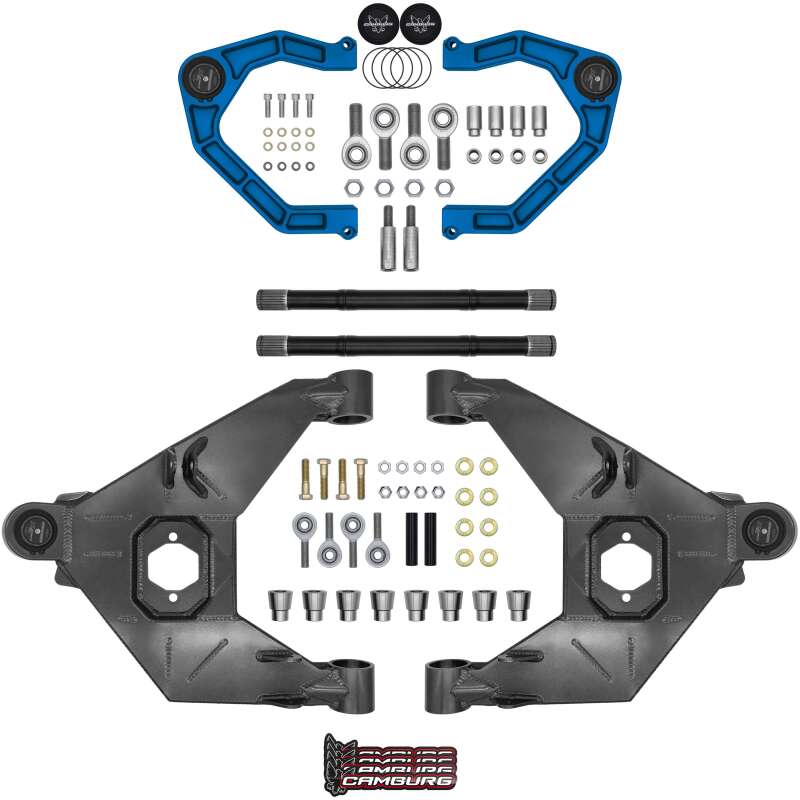

What’s Included

• (2) Camburg KINETIK billet upper control arms
• (2) Camburg long travel lower control arms
• (2) +2-inch extended axle shafts
• Integrated skid plates
• Hardware kit
• Installation instructions

Specifications

• Application: 2021–2026 Ford Bronco (Excludes Raptor)
• Product Type: Long Travel Suspension Kit
• Series: Trail Series
• Upper Arms: KINETIK Billet Upper Control Arms
• Joint Type: Camburg X-Joint XL
• Track Width Increase: +2 Inches Per Side
• Coilover Compatibility: 2.5-Inch / 3.0-Inch Bolt-In Coilovers
• Axles Included: Yes
• Lower Arms Included: Yes
• Upper Arms Included: Yes
• Skid Plates Included: Yes
• Shocks Included: No
• Finish Color: Blue
• Made In: USA
• Brand: Camburg Engineering

Popular Applications

👉 2021–2026 Ford Bronco (Excluding Raptor)

Perfect for Bronco owners looking to maximize suspension travel, improve high-speed stability, run larger tires, and build a serious long travel off-road suspension system.
