Part #: E86-35-062-01-22
Overview
Upgrade the suspension performance and stance of your 2024–2026 Ford Ranger 2WD with the Eibach PRO-TRUCK-LIFT Stage 2 system. Designed specifically for the Ranger XL, XLT, and LARIAT equipped with the 2.3L EcoBoost, this system combines height-adjustable PRO-TRUCK Coilover 2.0 front coilovers with matched rear PRO-TRUCK Sport shocks.
The threaded front coilovers provide up to 3 inches of ride-height adjustment, allowing you to dial in the stance, increase ground clearance, and compensate for additional front-end weight. The matched rear shocks support up to 1.5 inches of rear lift while providing application-specific damping for improved control both on and off the pavement.
Key Features
- Complete Stage 2 suspension system
- 0–3" adjustable front lift
- Supports 0–1.5" rear lift
- PRO-TRUCK Coilover 2.0 front coilovers
- PRO-TRUCK Sport rear shocks
- Adjustable threaded front spring perches
- Designed to accommodate increased loads and additional clearance
- 46mm monotube piston design
- Nitrogen-filled variable-force valving
- Heavy-duty bushing system
- Individually dyno tested for matched performance and reliability
- Engineered, tested, and manufactured by Eibach in the USA
Construction & Design
The PRO-TRUCK Coilover 2.0 assemblies feature anodized 6061-T6 billet aluminum coilover mounts paired with a 46mm monotube damper design. Nitrogen-filled variable-force valving provides controlled damping across changing road and trail conditions.
An adjustable threaded spring perch allows the front ride height to be fine-tuned based on vehicle setup, desired stance, and additional accessory weight.
Installation & Fitment
Designed as an application-specific suspension upgrade for 2024–2026 Ford Ranger 2WD models equipped with the 2.3L EcoBoost engine.
Front ride height is adjustable from 0–3 inches, while the rear shocks are designed for applications ranging from stock height to approximately 1.5 inches of rear lift.
Eibach sets the coilovers out of the box to approximately level the front of the Ranger with the factory rear ride height. Actual lift height may vary depending on vehicle configuration, accessories, and weight distribution.
Do not exceed Eibach's specified maximum ride height, as excessive adjustment can negatively affect ride quality.

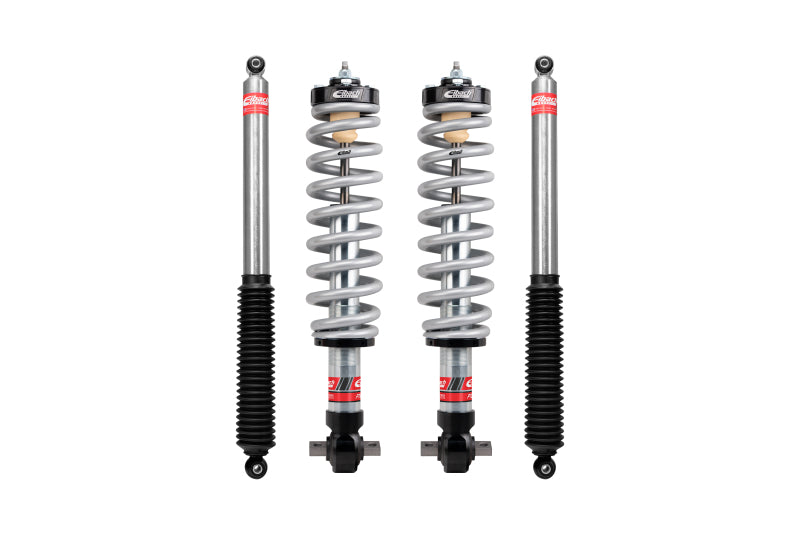

What's Included

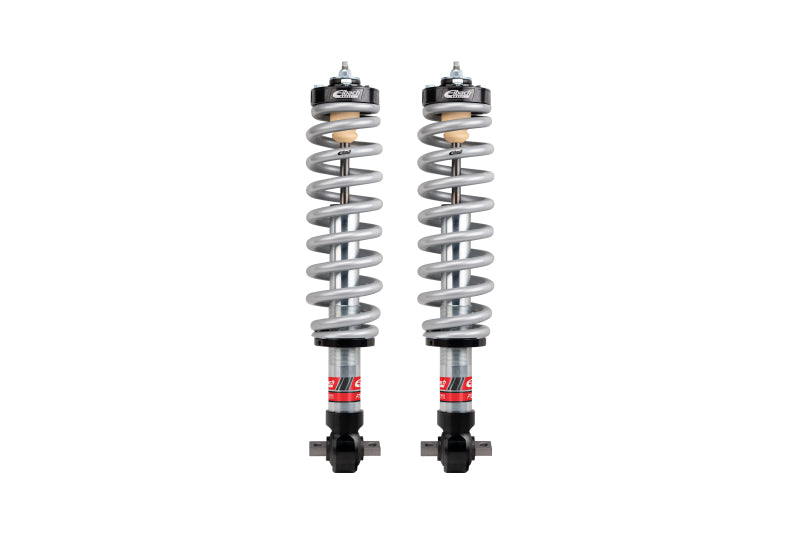

- (2) Eibach PRO-TRUCK Coilover 2.0 front coilovers

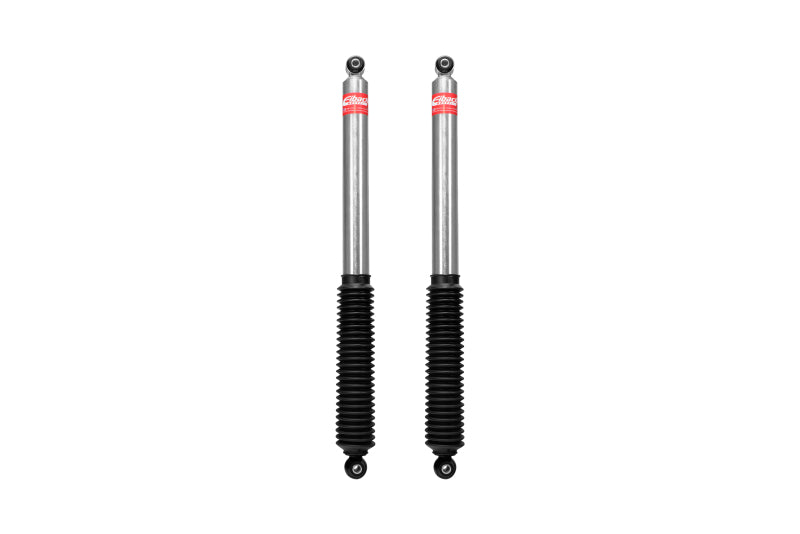

- (2) Eibach PRO-TRUCK Sport rear shocks
Vehicle Fitment
2024–2026 Ford Ranger
- XL – 2.3L EcoBoost – 2WD
- XLT – 2.3L EcoBoost – 2WD
- LARIAT – 2.3L EcoBoost – 2WD
- 4-Door / P703 platform
Does not fit Ranger Raptor or 4WD Ranger applications.
Ideal For
Ranger 2WD owners looking for an adjustable front lift, improved ground clearance, a more aggressive stance, and matched front and rear suspension performance without stepping up to a remote-reservoir system.
