Part #: E86-35-037-01-22

Overview

Fine-tune front ride height with threaded-body coilovers paired with matched rear Sport shocks.

Key Features

• Threaded front spring-perch adjustment
• 2.0-in coilovers with 46mm pistons
• Individually dyno-tested shocks

Construction & Design

Anodized 6061-T6 billet aluminum coilover mounts and nitrogen-filled monotube dampers. Front coilovers arrive assembled with springs.

Installation & Fitment

Professional installation and a wheel alignment are recommended. Stay within the application’s listed maximum height; added preload beyond that is for extra weight, not extra lift. The rear shock height range describes compatibility with a lifted suspension; rear shocks alone do not raise the truck. Fits only the listed configurations; not F-150 Raptor or Lightning.

• 2015-2020 Ford F-150 3.5L V6 EcoBoost 2WD — +0-2.75" Front | +0-1.5" Rear
• 2015-2020 Ford F-150 2.7L V6 EcoBoost 2WD — +0-2.75" Front | +0-1.5" Rear
• 2015-2020 Ford F-150 SuperCrew 5.0L 2WD — +0-2.75" Front | +0-1.5" Rear

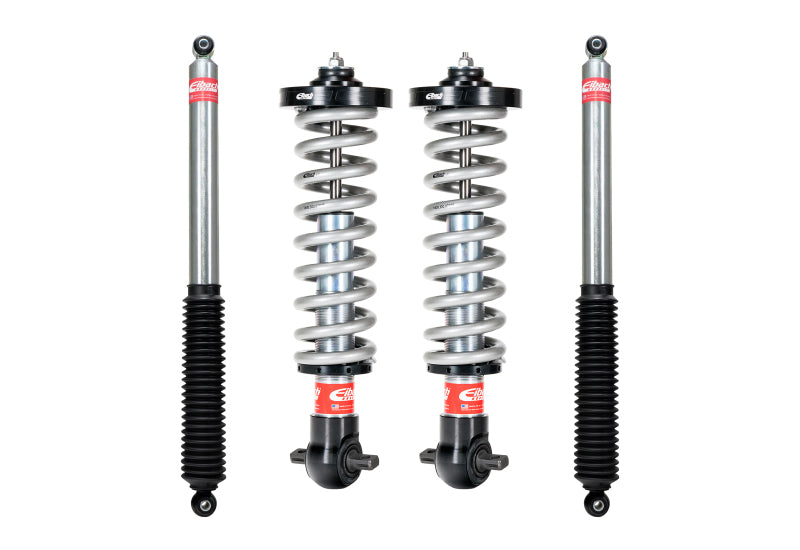

What's Included

Two complete front coilovers and two rear Sport shocks. Rear lift blocks are not included.
