Fabtech 3.5-Inch Ball Joint UCA Lift Kit with Dirt Logic Shocks & Intrusion Beams

Fits 2019–2023 Ford Ranger 4WD SuperCrew

Part #: K2323DL

Overview

The Fabtech 3.5-Inch Ball Joint Upper Control Arm Lift System is designed to increase ride height, ground clearance, suspension travel, and tire clearance on the 2019–2023 Ford Ranger 4WD SuperCrew. This complete suspension system combines front lift spacers, tubular upper control arms, rear lift blocks, Dirt Logic 2.25 rear shocks, and Fabtech's Offset Intrusion Beam Kit to provide a comprehensive upgrade for street and off-road use.

Front lift is achieved using steel spacers that retain the factory coilover shocks to maintain stock-like ride characteristics. Fabtech's tubular upper control arms correct front suspension geometry for the increased ride height and use extended-range ball joints to provide additional suspension travel without binding at full droop. The rear suspension receives 1.5-inch lift blocks along with Dirt Logic 2.25 shocks tuned specifically for the lifted Ranger application.

Key Features

The Fabtech K2323DL combines a 3.5-inch lift, heavy-duty tubular upper control arms, extended-range upper ball joints, rear Dirt Logic 2.25 shocks, and an Offset Intrusion Beam Kit. The upper control arms are designed to address suspension geometry at the increased ride height while providing additional wheel travel without binding. Urethane control arm bushings help maintain quiet operation, while the system maintains proper CV axle angle and plunge without requiring the front differential to be repositioned.

Construction & Design

Fabtech's replacement upper control arms use a heavy-duty tubular design with urethane bushings and extended-range ball joints. The revised geometry is engineered specifically around the Ranger's increased ride height to maintain proper alignment capability and allow increased suspension travel.

The included Offset Intrusion Beams are constructed from 1/4-inch thick steel with a welded box design. They replace the factory intrusion beams rather than requiring them to be cut or removed, creating additional tire clearance while retaining this structural component.

The included Dirt Logic 2.25 rear shocks feature 2.25-inch OD stainless steel bodies, 2-inch billet aluminum pistons, 7/8-inch NitroSteel black piston rods, and polyurethane mounting ends. They are pre-tuned by Fabtech specifically for the suspension system and larger tire applications.

Installation & Fitment

The Fabtech K2323DL is designed specifically for the 2019–2023 Ford Ranger 4WD SuperCrew. Fabtech notes that this kit fits SuperCrew models only.

The system uses the factory front coilover shocks with steel lift spacers, while the rear suspension is raised using 1.5-inch lift blocks and U-bolts.

Fabtech lists the following wheel and tire combinations:

33x12.50R18 tires with 18x9 wheels and 5-inch backspacing – minor trimming required

33x12.50R20 tires with 20x9 wheels and 5-inch backspacing – minor trimming required

What’s Included

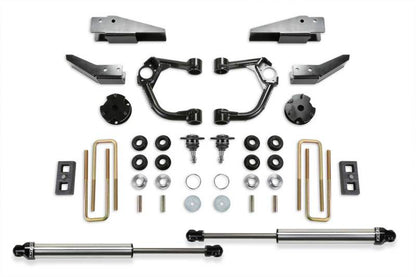

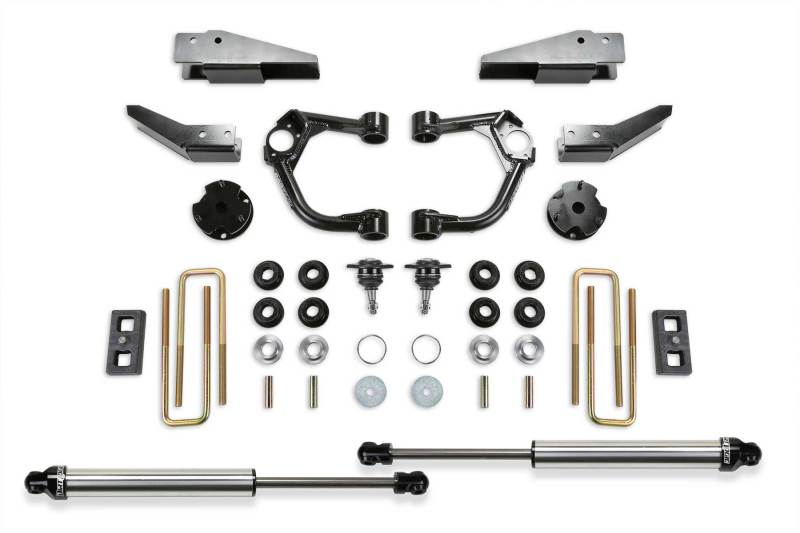

The package includes Fabtech tubular upper control arms with extended-range ball joints, front steel lift spacers, rear 1.5-inch lift blocks and U-bolts, two Dirt Logic 2.25 rear shocks, Offset Intrusion Beam Kit, and required suspension mounting components.

Ideal For

Perfect for 2019–2023 Ford Ranger 4WD SuperCrew owners looking for increased ride height, suspension travel, and clearance for 33-inch tires, the Fabtech K2323DL provides a comprehensive front and rear suspension upgrade. Its combination of corrected upper control arm geometry, Dirt Logic rear shocks, rear lift blocks, and heavy-duty Offset Intrusion Beams makes it well suited for daily driving, larger-tire builds, trail use, and off-road applications.
