FOX 2.5 Factory Series Front Coilover Reservoir Shock Pair Adjustable 2–3 in Lift - 2019–2023 Ford Ranger

FOX Performance Elite Series 2.5 Coilover Reservoir Shocks – Adjustable (Pair)

2019–2023 Ford Ranger (2WD & 4WD)

Part Number: 883-06-156

Upgrade your Ranger’s front suspension to race-proven performance with the FOX Performance Elite Series 2.5 Coilover Reservoir Shocks (883-06-156). Designed specifically for the 2019–2023 Ford Ranger, these premium coilovers deliver maximum adjustability, superior damping control, and elite off-road capability.

Built using FOX’s off-road racing technology, these coilovers feature a 2.5” aluminum shock body, external remote reservoir, and Dual Speed Compression (DSC) adjusters, allowing you to fine-tune your suspension for any terrain, load, or driving style.

The integrated coil spring supports vehicle weight while allowing adjustable preload and ride height, giving you the ability to level your truck or run a lifted setup right out of the box.

---

Key Features

• Fits 2019–2023 Ford Ranger ONLY
• Part Number: 883-06-156
• Performance Elite Series (FOX’s highest-end shock lineup)
• Complete front coilover assemblies (pair)
• Adjustable front lift: ~2–3”
• 2.5” impact-extruded aluminum shock body
• External remote reservoir for improved cooling
• Dual Speed Compression (DSC) adjusters for tuning
• High- and low-speed compression adjustability
• Integrated coil spring with adjustable preload
• High-flow aluminum piston with application-specific valving
• Hard-anodized aluminum body for corrosion resistance
• CNC-machined billet aluminum components
• Direct bolt-on installation

---

⚠️ Fitment Note (IMPORTANT)

❗ Fits 2019–2023 Ford Ranger ONLY
❗ Compatible with 2WD & 4WD models
❗ Aftermarket upper control arms recommended for proper geometry at lift height

👉 This is critical — reduces returns and increases buyer confidence

---

Lift Height & Capability

• Front Lift: ~2–3” adjustable
• Levels factory rake
• Allows for larger tires and increased clearance

👉 Ideal for aggressive off-road builds and leveled stance

---

Built for Maximum Performance

These FOX coilovers improve your Ranger by:

Delivering race-level suspension damping

Maintaining control in high-speed off-road conditions

Reducing shock fade under heavy use

👉 Ideal for off-road, overlanding, desert running, and performance builds

---

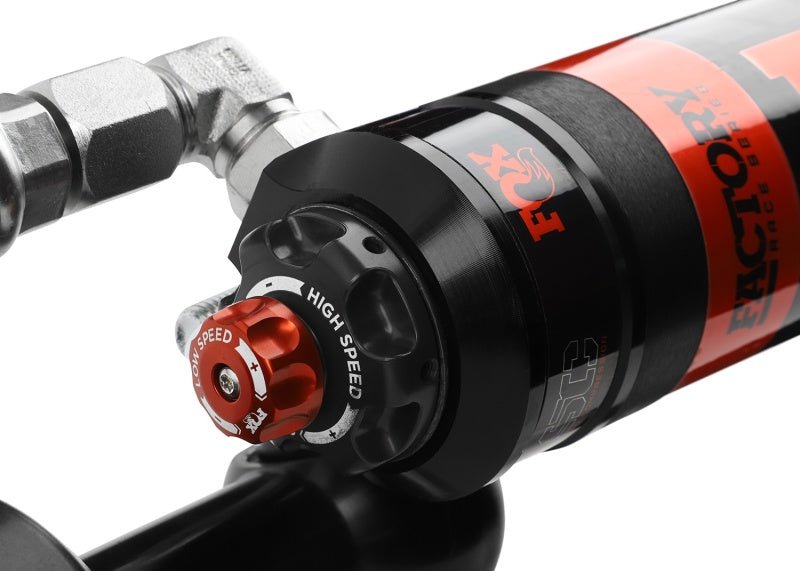

Dual Speed Compression (DSC) Adjustability

The DSC system allows you to:

Adjust low-speed compression (daily driving, body roll)

Adjust high-speed compression (impacts, off-road terrain)

Fine-tune suspension for load, terrain, and driving style

👉 True performance tuning at your fingertips

---

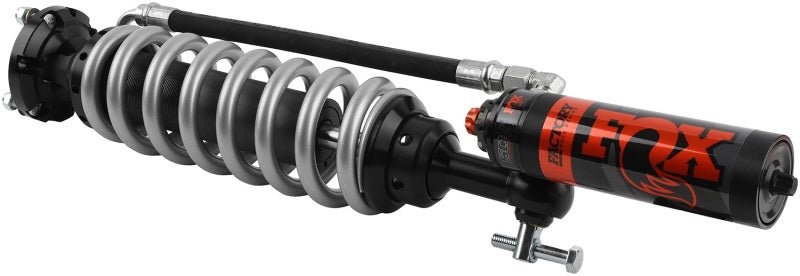

External Reservoir Advantage

The remote reservoir provides:

Increased oil capacity for better heat management

Reduced shock fade during aggressive driving

Consistent damping performance in extreme conditions

👉 Built for serious off-road abuse

---

OEM Fitment & Easy Installation

Designed for a seamless install:

Direct bolt-on replacement

Uses factory mounting locations

Pre-assembled coilover units

👉 Install time: ~2–3 hours

---

Premium Construction

• 2.5” hard-anodized aluminum shock body
• External reservoir with braided hose
• 7/8” hard chrome-plated steel shaft

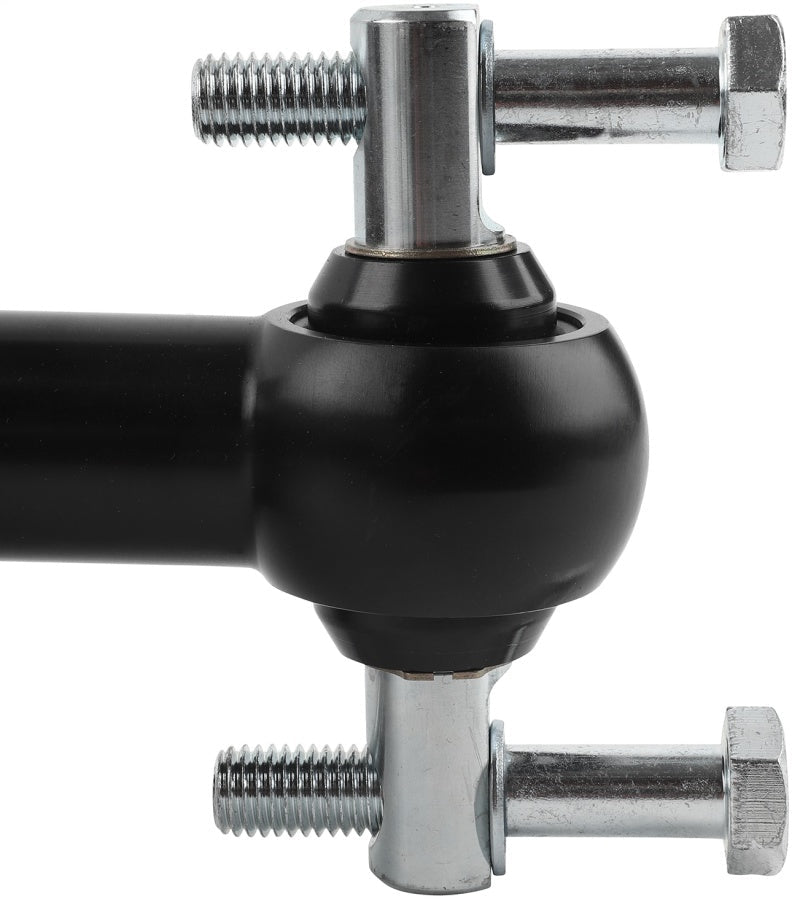

• PTFE-lined spherical bearings
• Race-proven internal valving

Built to handle extreme off-road conditions, high speeds, and long-term durability.

---

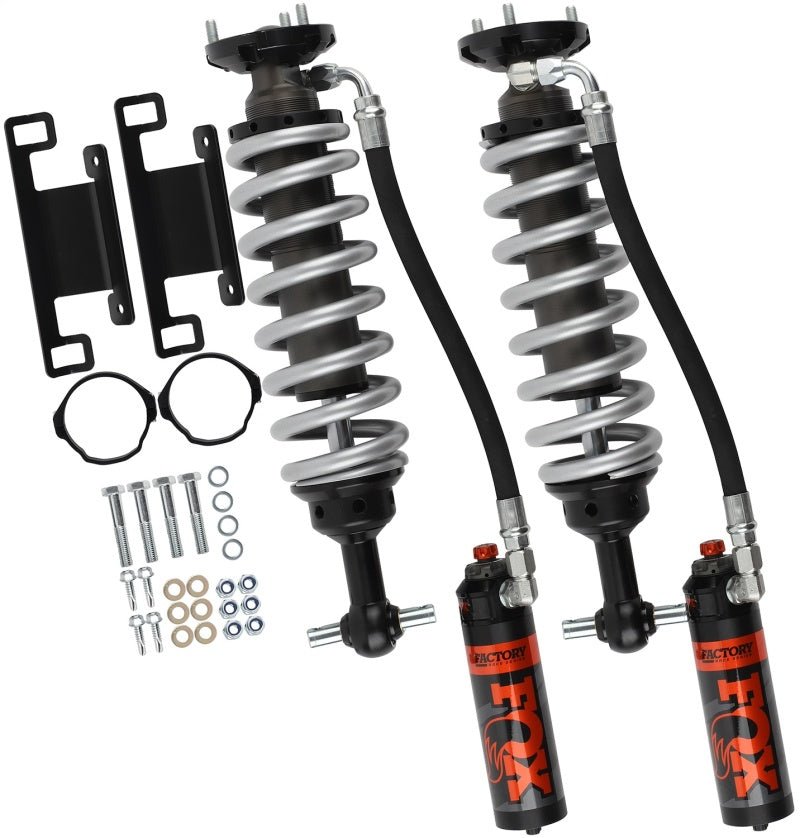

What’s Included

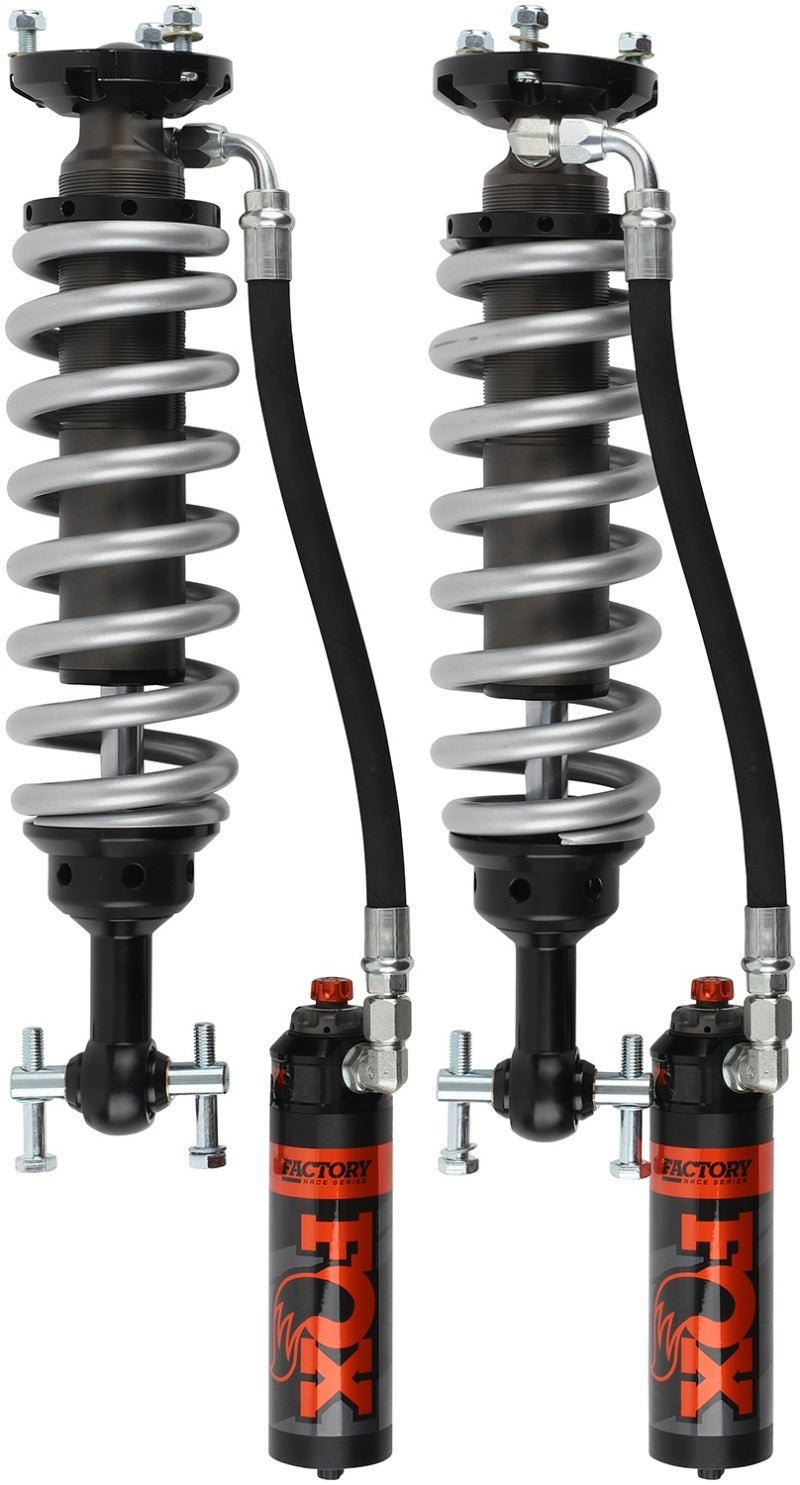

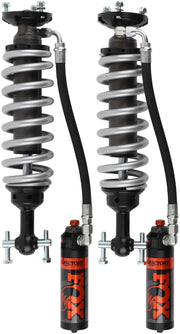

• (2) FOX Performance Elite 2.5 Coilover Shocks
• Remote reservoirs and mounting hardware
• Pre-installed springs
• Installation hardware

---

Vehicle Fitment

Fits the following models:

• 2019 Ford Ranger
• 2020 Ford Ranger
• 2021 Ford Ranger
• 2022 Ford Ranger
• 2023 Ford Ranger

❗ Fits 2WD & 4WD models
❗ Front suspension ONLY
❗ Does NOT fit 2024+ Ranger

---

Installation

Bolt-on design

No drilling required

Uses factory mounting points

Alignment required after install

Install time: ~2–3 hours

---

Why Buy from Iron Ridge Offroad

✔ Fast Shipping
✔ Authorized FOX Dealer
✔ Fast Processing
✔ Guaranteed Fitment

---

Upgrade your Ranger with the FOX Performance Elite 2.5 Coilovers (883-06-156) for race-proven performance, adjustable damping, and unmatched off-road control.
