Part #: 883-06-261

Overview

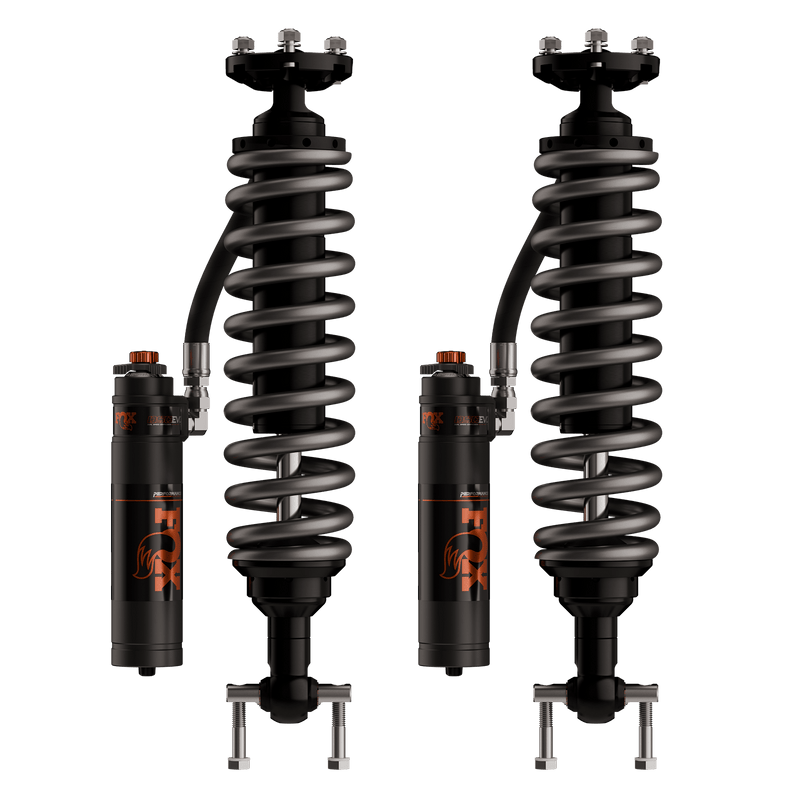

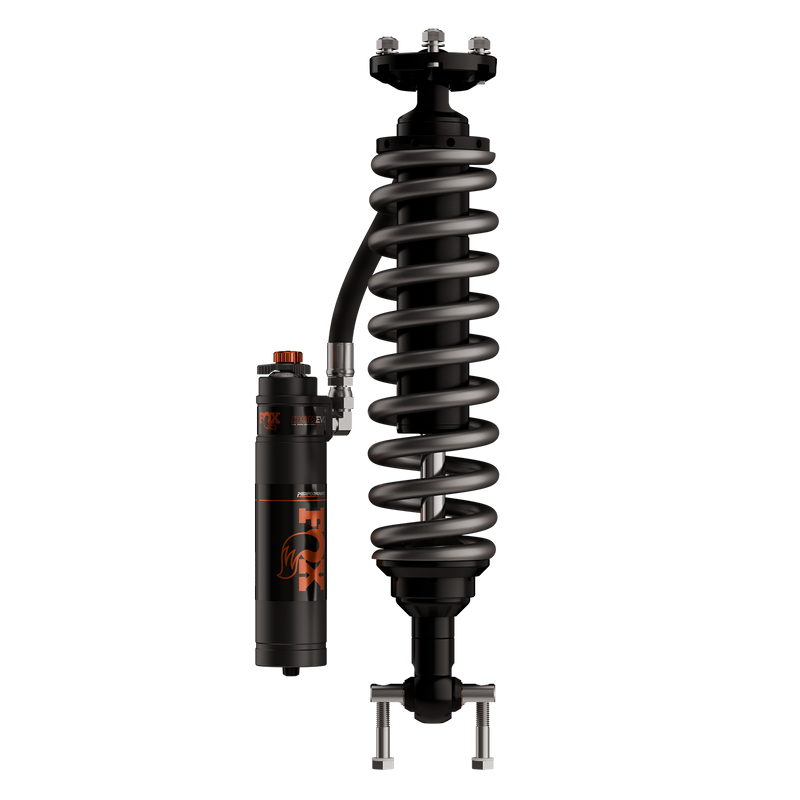

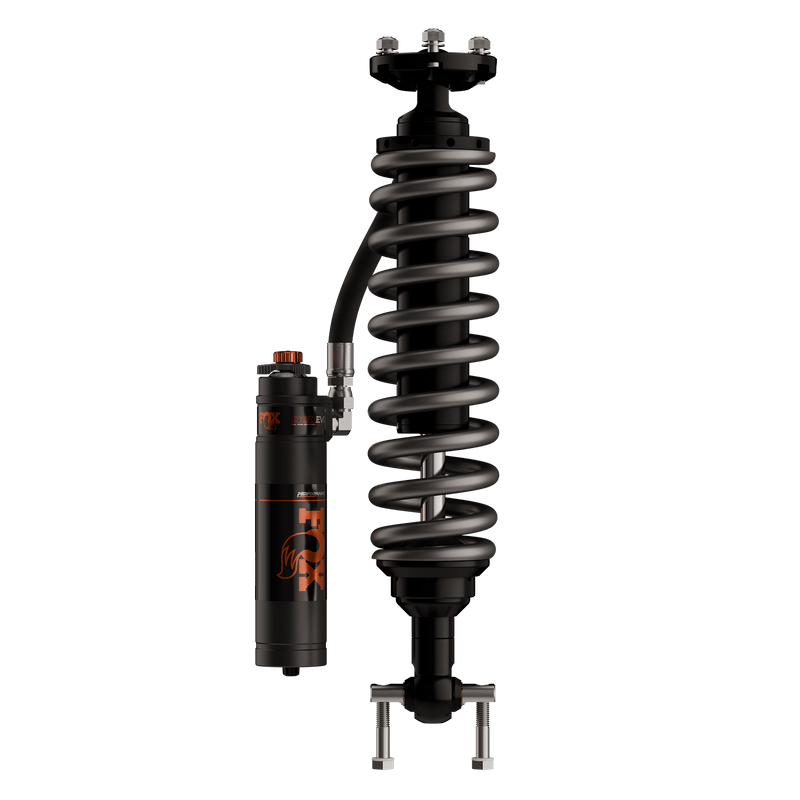

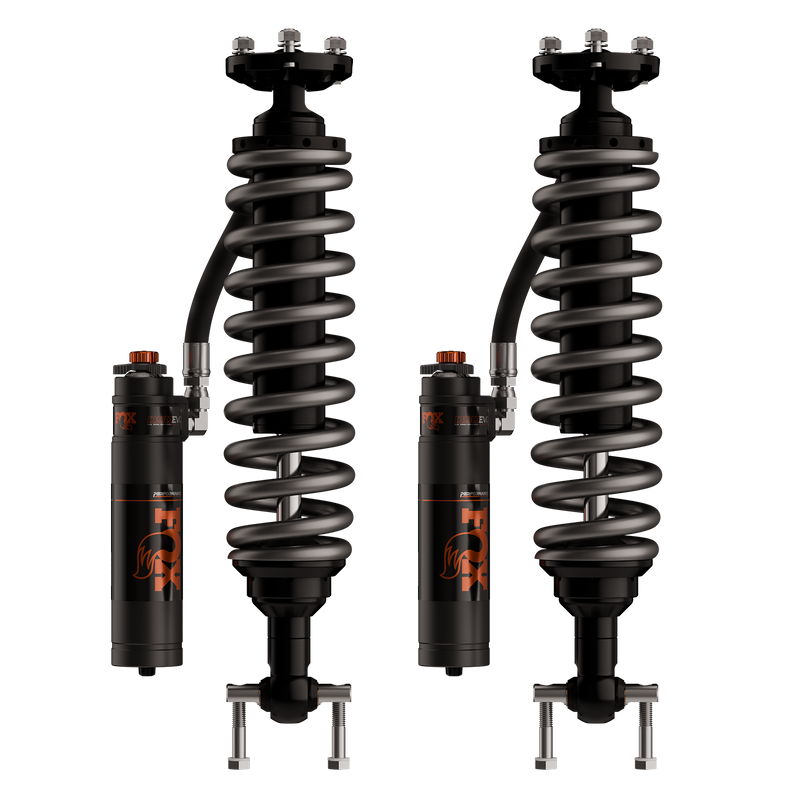

The FOX 883-06-261 2.5 Performance Elite Series front coilover is designed for the 2024–2026 Ford Ranger. It combines a coil spring and damper to provide adjustable front ride height and application-specific suspension control.

External reservoirs add oil capacity, while DSC EVO provides separate high- and low-speed compression tuning. Its high-speed Variable Valve Control system adjusts damping without adding preload to the shim stack, allowing larger-impact control to be adjusted while retaining small-bump sensitivity.

This is the HD-tuned version. Select it for a heavier vehicle configuration after matching the suspension tune and lift range to the installed equipment.

Key Features

• 2.5-inch coilover.
• Valving developed for the listed vehicle application.
• Independent high- and low-speed compression adjustment with DSC EVO.
• External reservoir increases oil and nitrogen capacity.
• HD tune for a heavier vehicle setup.

Construction & Design

The 2.5-inch aluminum shock body uses Type III anodization to resist wear and corrosion. The external reservoir supplies additional oil volume for heat management.

• Upper mount: OEM.
• Lower mount: Barpin.

Installation & Fitment

• Install in the front coilover locations and set ride height according to FOX’s application instructions. Check alignment, CV angles, and suspension clearances after adjusting front ride height.
• Fits the listed 4WD Ranger application and excludes Ranger Raptor.

What’s Included

One pair of front coilovers.
