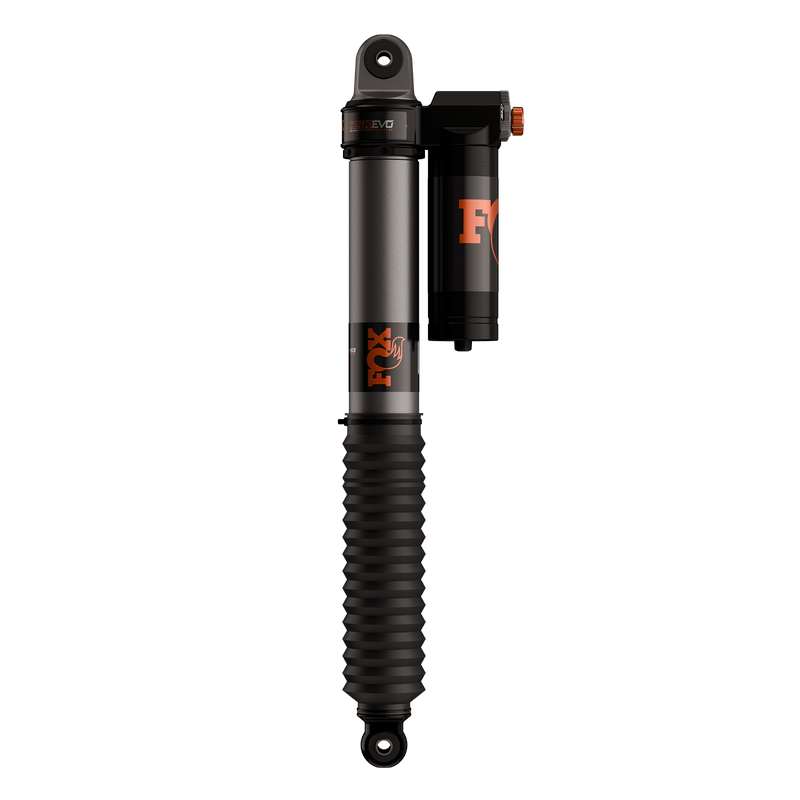

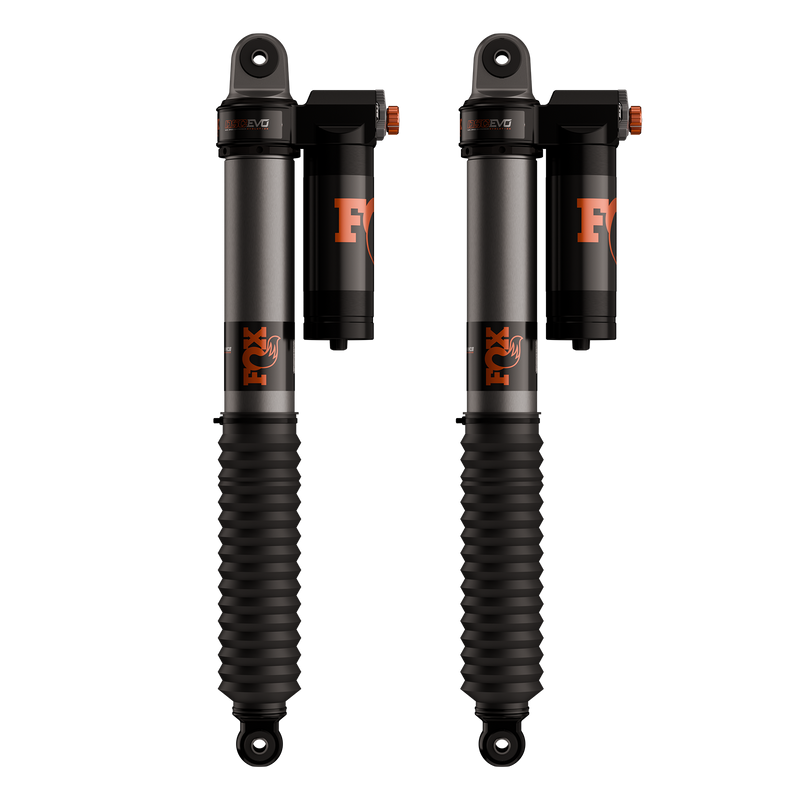

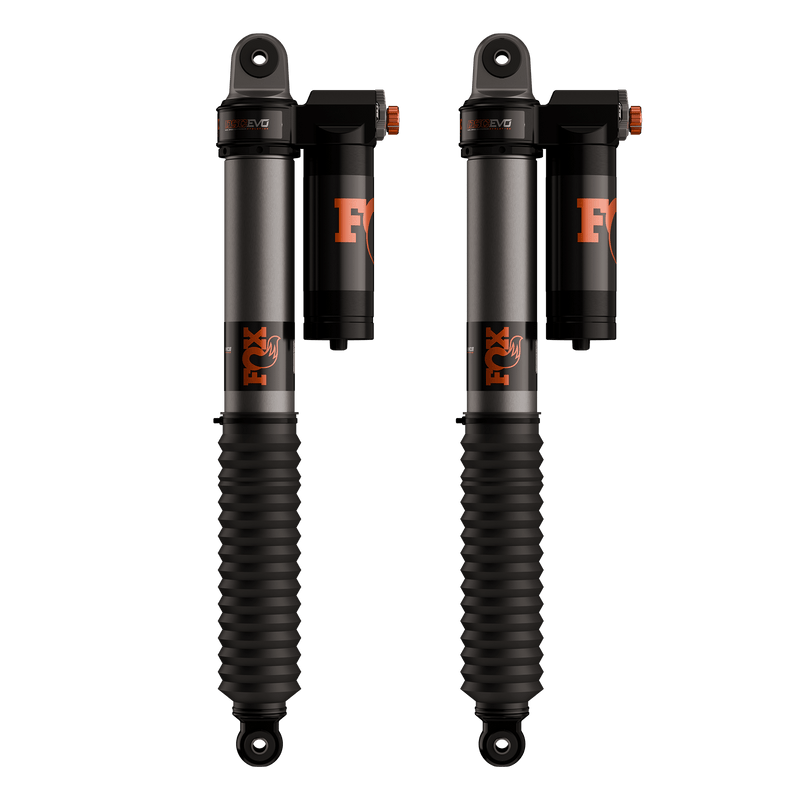

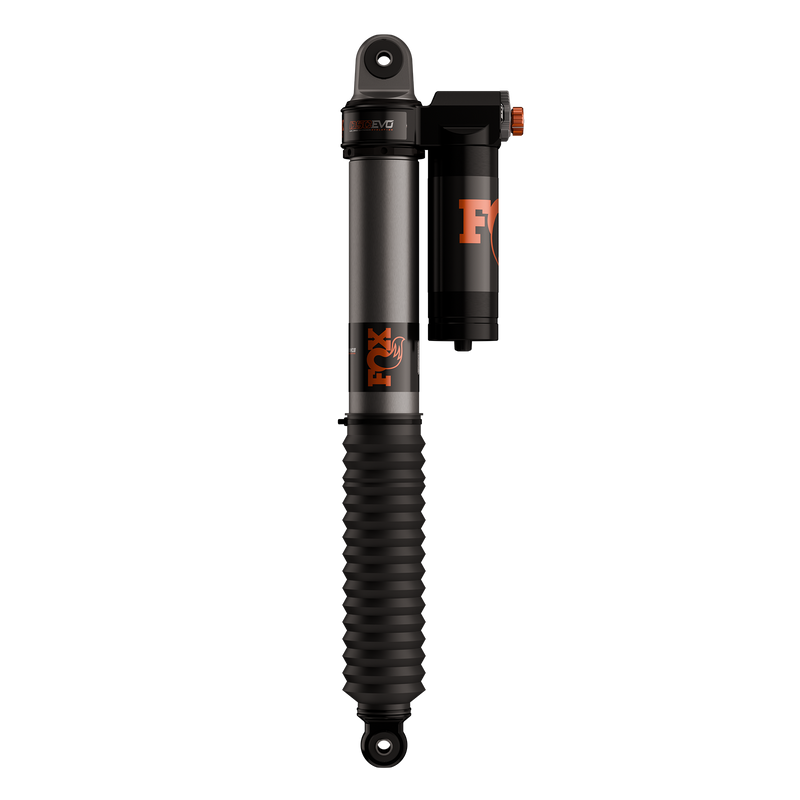

FOX 2.5 Performance Elite Rear Shocks – DSC EVO – 1.5–2.5 in. Lift | Ford Ranger 4WD (2024–2026) (883-26-181)

Part #: 883-26-181

Overview

The FOX 883-26-181 2.5 Performance Elite Series rear shock is designed for the 2024–2026 Ford Ranger. It controls suspension movement in the lift configuration listed below, helping the truck stay composed on uneven roads and off-road surfaces.

External reservoirs add oil capacity, while DSC EVO provides separate high- and low-speed compression tuning. Its high-speed Variable Valve Control system adjusts damping without adding preload to the shim stack, allowing larger-impact control to be adjusted while retaining small-bump sensitivity.

Key Features

• 2.5-inch smooth-body reservoir shock.
• Valving developed for the listed vehicle application.
• Independent high- and low-speed compression adjustment with DSC EVO.
• External reservoir increases oil and nitrogen capacity.
• Shock stroke: 10.98 inches.

Construction & Design

The 2.5-inch aluminum shock body uses Type III anodization to resist wear and corrosion. The external reservoir supplies additional oil volume for heat management.

• Extended shock length: 27.87 inches.
• Compressed shock length: 16.89 inches.
• Shock stroke: 10.98 inches.
• Upper mount: Eyelet.
• Lower mount: Eyelet.

Installation & Fitment

• Install in the rear shock locations using the mount types listed below. This shock does not raise vehicle ride height; the existing springs and lift components determine the stance.
• Fits the listed 4WD Ranger application and excludes Ranger Raptor.
• Use the rear lift height when selecting a rear shock; a lift kit’s advertised front height may differ from its rear height.

What’s Included

One pair of rear shocks.

Vehicle Fitment
