Part #: 987-24-065

Overview

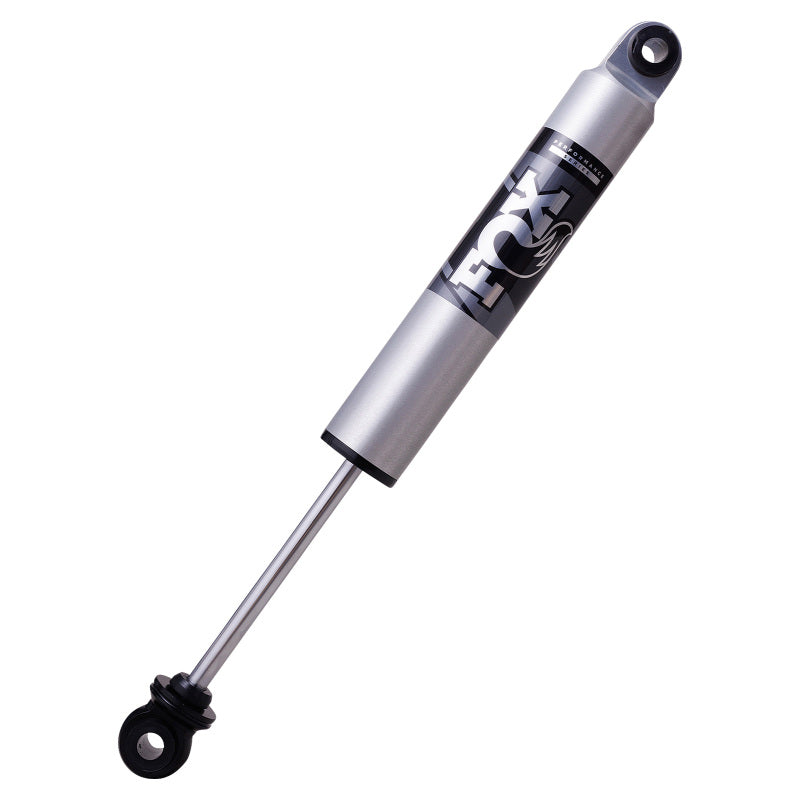

Upgrade rear damping on a compatible 2015–2026 Ford F-150 4WD with a FOX 2.5 Performance Series IFP shock for 0–1 inch of rear lift.

Key Features

• 2.5-inch 6061-T6 aluminum body
• Internal floating piston separates oil from nitrogen
• High-flow, velocity-sensitive damping
• 28.52-inch extended and 17.89-inch compressed length

Construction & Design

Clear-anodized aluminum body with a 5/8-inch hard-chrome shaft and eyelet mounts.

Installation & Fitment

Fits the listed 2015–2026 Ford F-150 4WD rear applications with 0–1 inch of rear lift. Match the exact trim and installed suspension height. This is not a Raptor replacement, and the shock does not add lift by itself.

What’s Included

One rear shock absorber. Order two for a rear pair.
