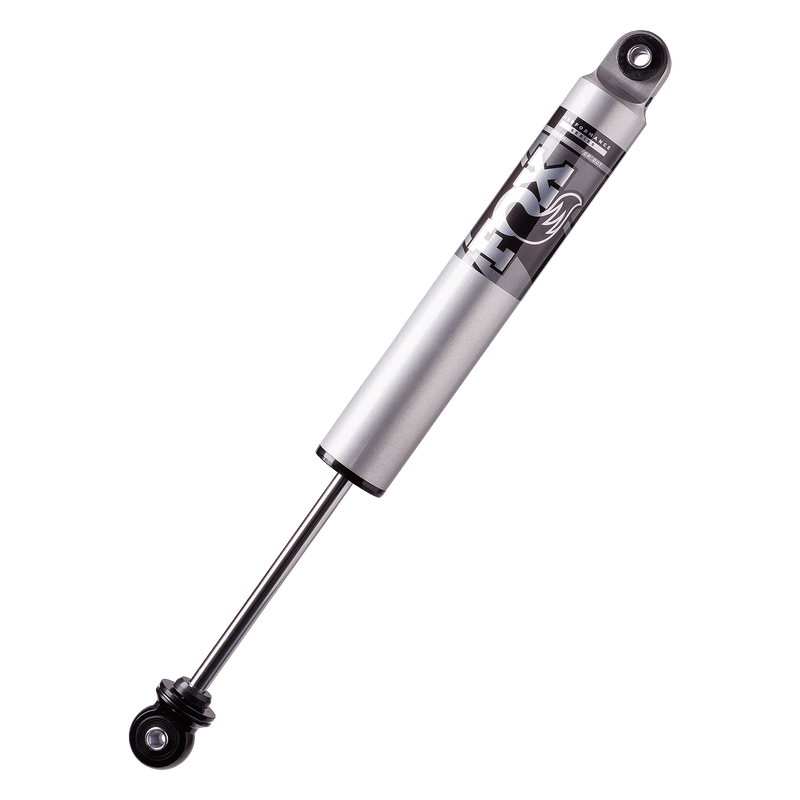

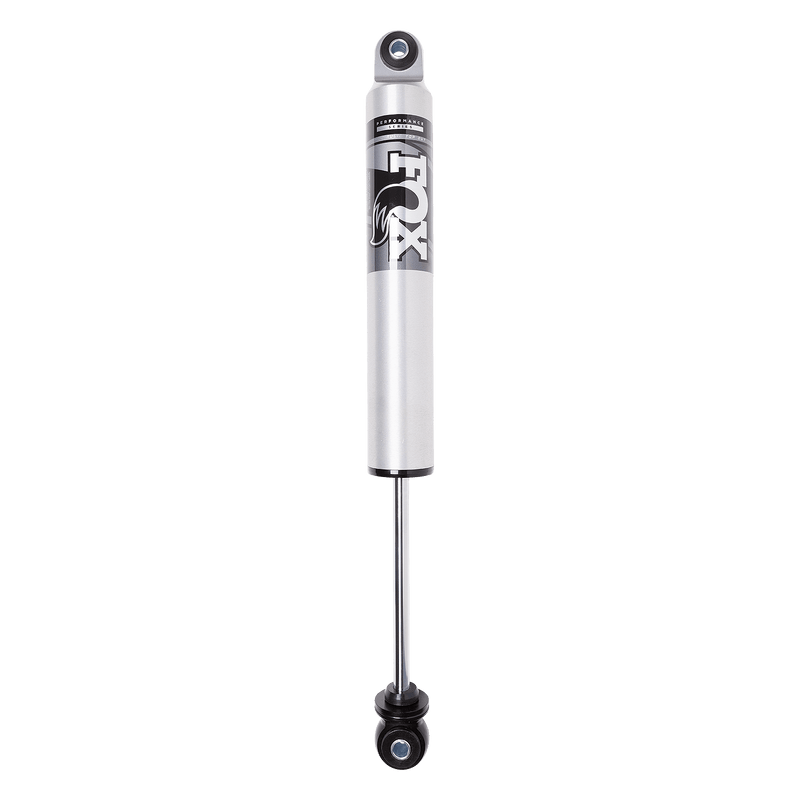

FOX 2.5 Performance Rear Shock – 6–8 in. Lift | Ford Super Duty 4WD (2017–2026) (987-24-023)

Part #: 987-24-023

Overview

The FOX 987-24-023 2.5 Performance Series rear shock is designed for the 2017–2026 Ford Super Duty. It controls suspension movement in the lift configuration listed below, helping the truck stay composed on uneven roads and off-road surfaces.

Hydraulic Top Out adds position-sensitive rebound control near full extension. Oil is directed through a secondary shim stack to slow the shaft as the suspension approaches top-out, reducing harsh extension events that can be more noticeable with larger tires or lifted suspension.

Key Features

• 2.5-inch monotube IFP shock.
• Valving developed for the listed vehicle application.
• Hydraulic Top Out provides position-sensitive rebound control near full extension.
• Shock stroke: 13.69 inches.

Construction & Design

The aluminum shock body uses a clear-anodized finish for corrosion resistance and heat dissipation. An internal floating piston separates the oil and nitrogen charge.

• Extended shock length: 35.88 inches.
• Compressed shock length: 22.19 inches.
• Shock stroke: 13.69 inches.
• Upper mount: Eyelet.
• Lower mount: Eyelet.

Installation & Fitment

• Install in the rear shock locations using the mount types listed below. This shock does not raise vehicle ride height; the existing springs and lift components determine the stance.
• FOX application notes: Lift: 6-8 inches.
• Use the rear lift height when selecting a rear shock; a lift kit’s advertised front height may differ from its rear height.

What’s Included

One rear shock.
