Part #: K53008T

Overview

A matched ICON suspension package combines front coilovers and rear shocks for controlled road manners and more capable trail use.

Key Features

• Adjustable 2.5 Series front coilovers
• Vehicle-specific front and rear shock tuning
• Delta Joint tubular upper control arms

Construction & Design

Serviceable dampers use application-specific valving. The system components below identify the exact hardware supplied with this stage.

Installation & Fitment

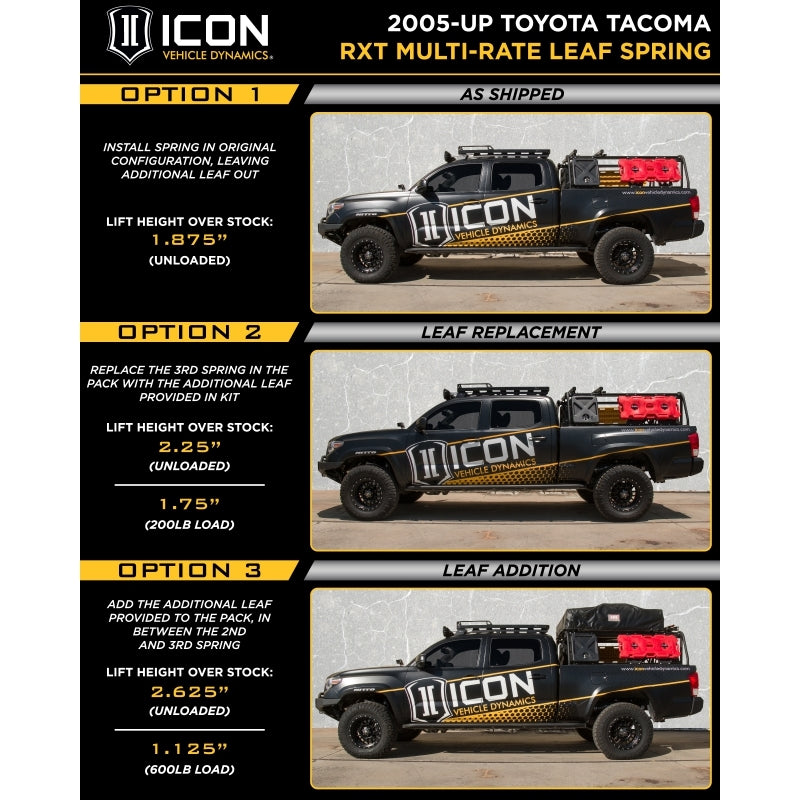

Fits 2005–2023 Tacoma 6-lug models; excludes 5-lug 2WD. Front lift is 0–3.5 inches on 2005–2015 and 0–2.75 inches on 2016–2023 models. 2017–2023 TRD Pro front lift is 0–1.25 inches. Rear lift is 1.875–2.625 inches on most models or 1.375–2.125 inches on 2017–2023 TRD Pro, depending on spring configuration and rear weight. Install the complete matched ICON system; mixing components can affect travel and cause damage. Use the included upper control arms with the extended-travel front coilovers.

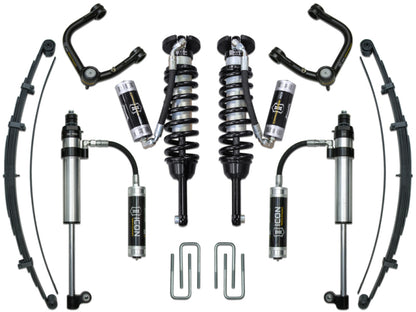

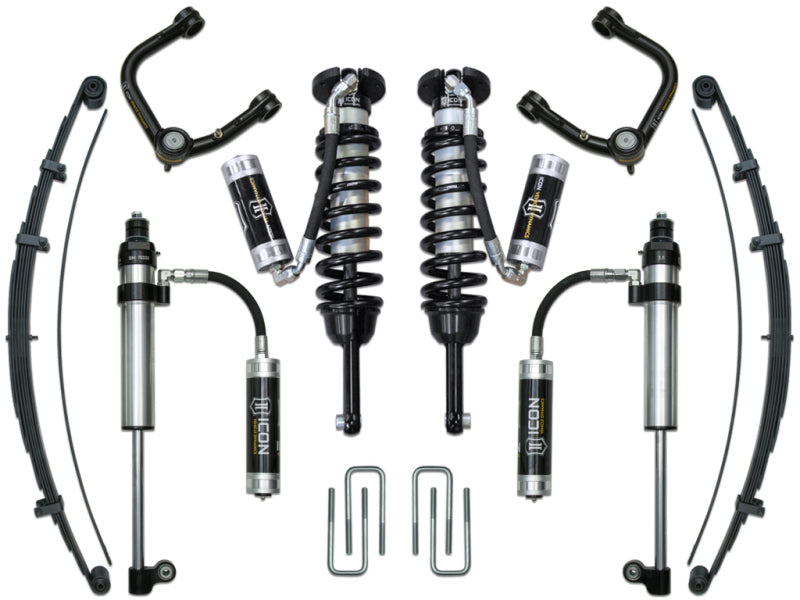

What’s Included

• 1 × 58735: extended-travel front 2.5 Series remote-reservoir coilover kit
• 1 × 58450DJ: tubular front upper control arms with Delta Joints
• 2 × 158505: RXT rear leaf spring pack
• 1 × 52050: rear U-bolt kit
• 1 × 57826P: RXT rear 2.5 Series remote-reservoir shock pair
