Part #: K53004T

Overview

A matched ICON suspension package combines front coilovers and rear shocks for controlled road manners and more capable trail use.

Key Features

• Adjustable 2.5 Series front coilovers
• Vehicle-specific front and rear shock tuning
• Delta Joint tubular upper control arms

Construction & Design

Serviceable dampers use application-specific valving. The system components below identify the exact hardware supplied with this stage.

Installation & Fitment

Fits 2005–2023 Tacoma 6-lug models; excludes 5-lug 2WD. Front lift is 0–3.5 inches on 2005–2015 and 0–2.75 inches on 2016–2023 models. 2017–2023 TRD Pro front lift is 0–1.25 inches. The add-a-leaf replaces the OE overload leaf and provides approximately 1.5 inches of rear lift on stock-weight trucks. TRD Pro rear lift is approximately 1 inch. ADAS recalibration is required after installation. Use the included upper control arms with the extended-travel front coilovers.

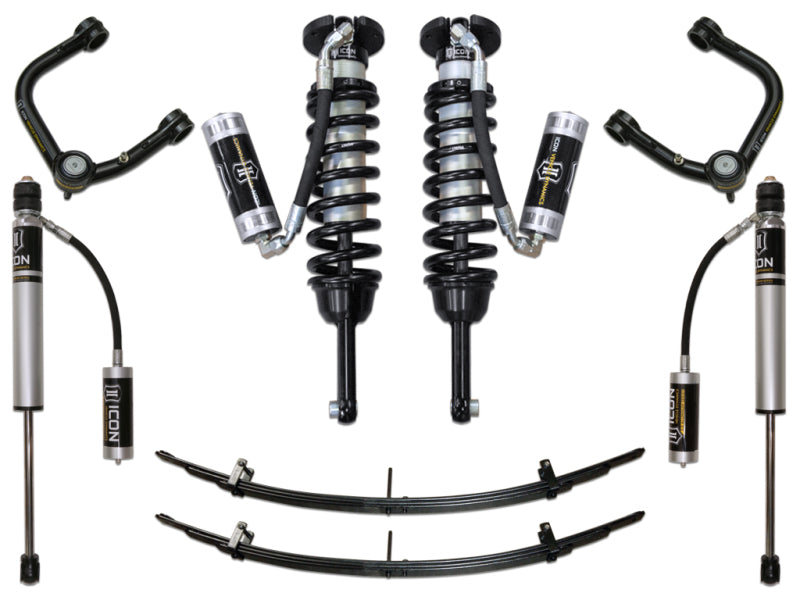

What’s Included

• 1 × 58735: extended-travel front 2.5 Series remote-reservoir coilover kit
• 1 × 58450DJ: tubular front upper control arms with Delta Joints
• 1 × 51100: rear add-a-leaf kit
• 2 × 56503R: rear 2.0 Series remote-reservoir shock
