Part #: LK12-FF02

Overview

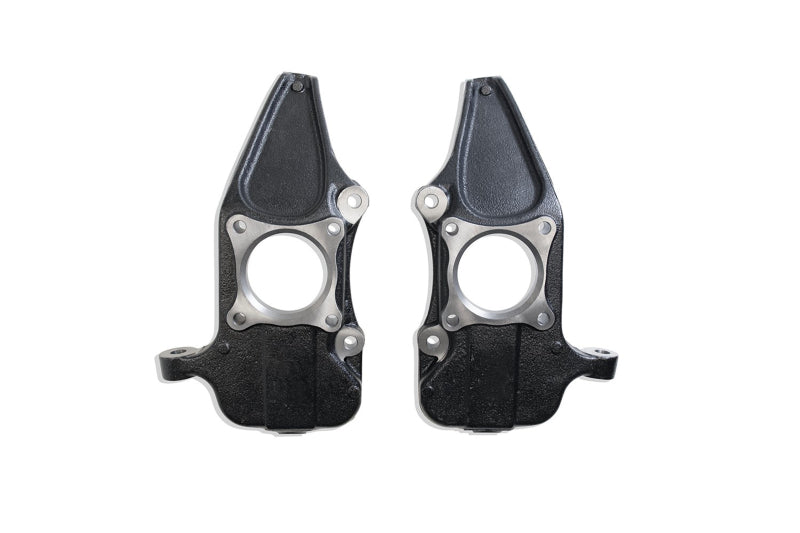

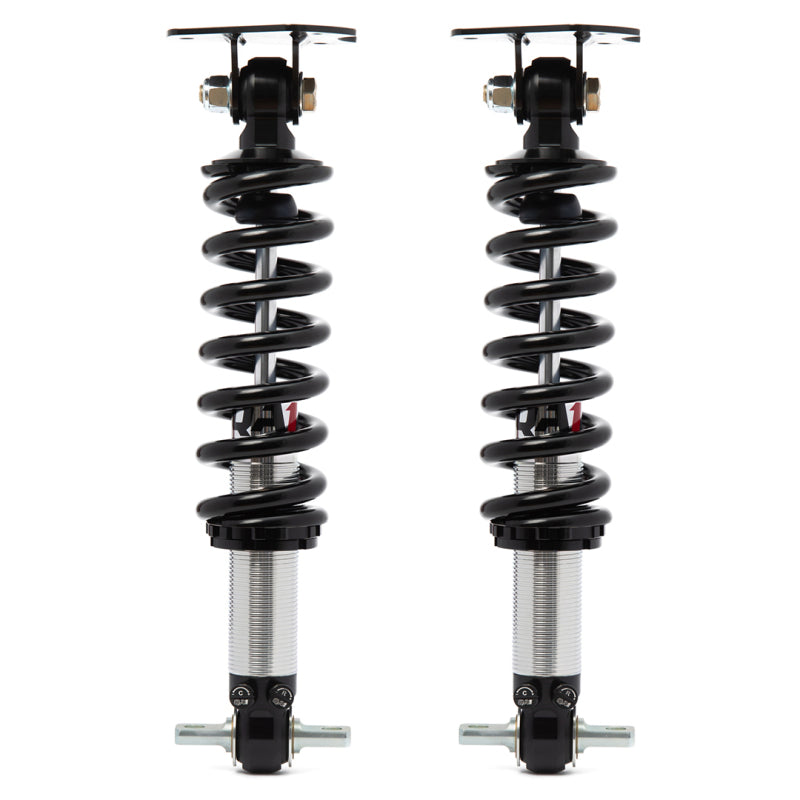

This QA1 lowering package combines front Pro Coil coilovers, drop spindles and a rear drop kit for an adjustable street stance.

Key Features

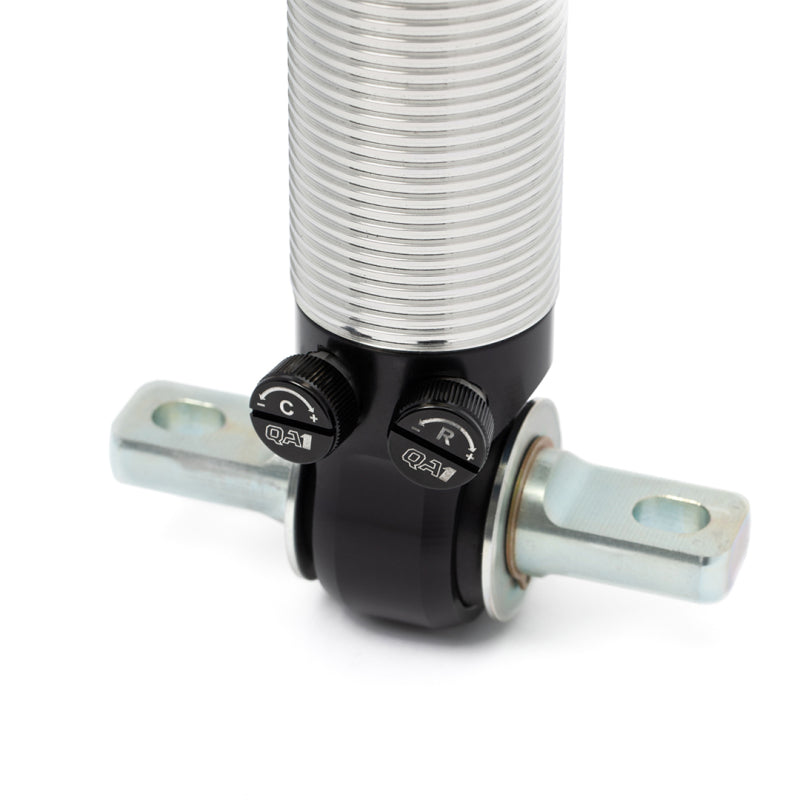

Independent compression and rebound adjustment; threaded front ride-height adjustment; powder-coated steel rear lowering components.

Construction & Design

Heavy-duty shocks use polyurethane bushings and a 1 in chromoly T-bar.

Installation & Fitment

For 2015–2020 F-150 4WD. Aftermarket wheels require at least 22 in diameter and no more than 6 in backspacing. Most factory 20 in wheels fit; factory 22 in wheels do not. Ball-joint trimming may be necessary. Confirm trim and wheel clearance before ordering.

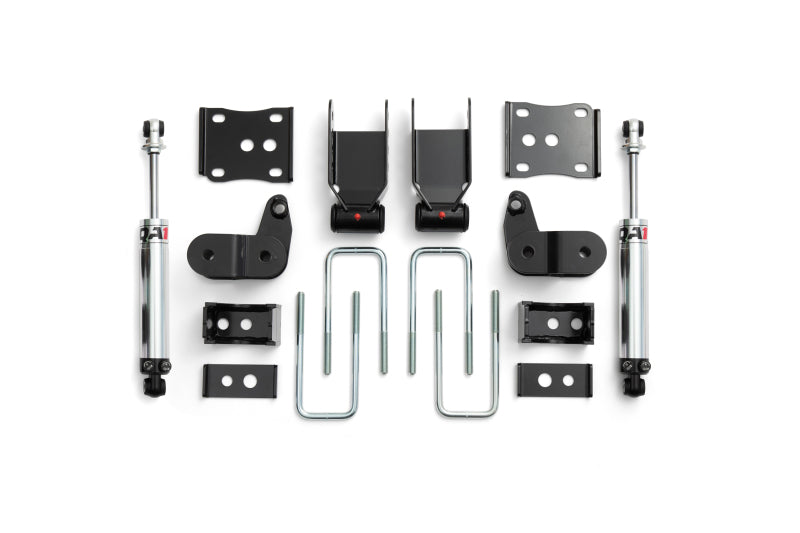

Rear adjustment uses half-inch increments; 4WD rear drop changes with factory block removal. Follow the supplied instructions for final ride height.

What's Included

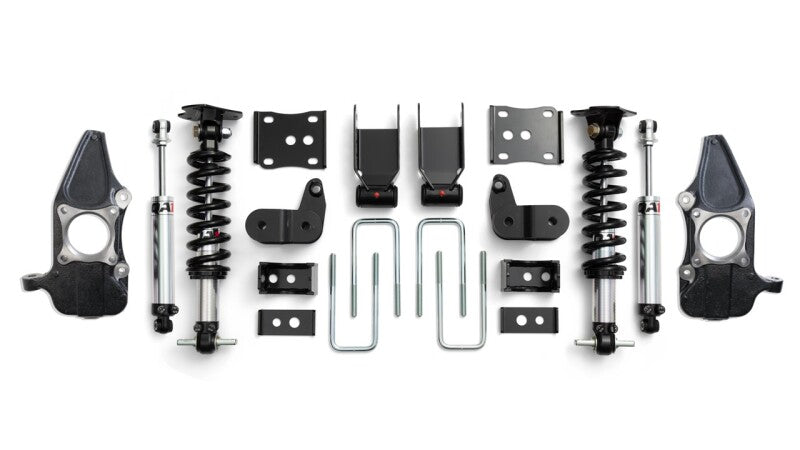

Front Pro Coil coilovers, drop spindles and rear drop kit. Optional traction bars are separate.

Ideal For

F-150 owners building a lowered street truck with adjustable damping.
